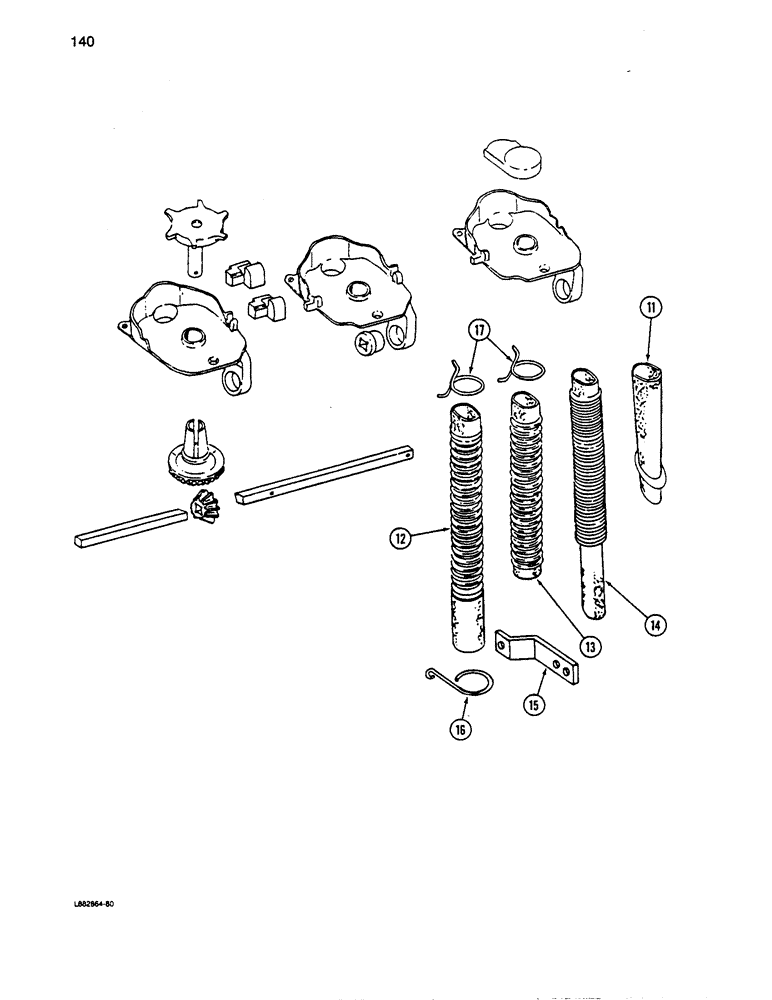

Запчасти Case IH 5100 (140) - FERTILIZER FEED, CONTD

11

607289R2

TUBE,1.25" OD, 7" Length

- combined delivery fertilizer (1 per feed)

1шт.

12

603589R3

TUBE

- separate delivery fertilizer (See Note A)

1шт.

12

843204C2

TUBE,42.85 mm ID x 47.6 mm OD

- separate delivery fertilizer (See Note B)

1шт.

13

594245R2

TUBE

- separate delivery fertilizer (See Note C)

1шт.

14

819353C2

TUBE

- separate delivery fertilizer (See Note D)

1шт.

15

603722R2

BRACKET

- drag chain (Drills with single disc furrow opener)

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

20803R1

WASHER

- flat, 13/32 x 1 x 3/32 inch

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

16

603592R1

SPRING CLIP

CLAMP - separate delivery tube lower (Drills with single disc furrow opener)

1шт.

17

603591R1

SPRING

1шт.

CLAMP - separate delivery tube upper NOTE A: Drills with single disc furrow opener. For basic machines, also for dirlls with 20 inch wheel used in England. Tube to have 66 convolutions, approxima tely. NOTE B: Drills with single disc furrow opener. For drills with 28 inch wheels used in England. Tube to have 72 convolutions, approximately. NOTE C: 13x7, 16x7, 18x7,21 x7, 16x8,20x8 usewith separate placement fertilizer furrow opener. Tube to have 66 convolutions, approximately. NOTE D: Drills with double dis

1шт.
