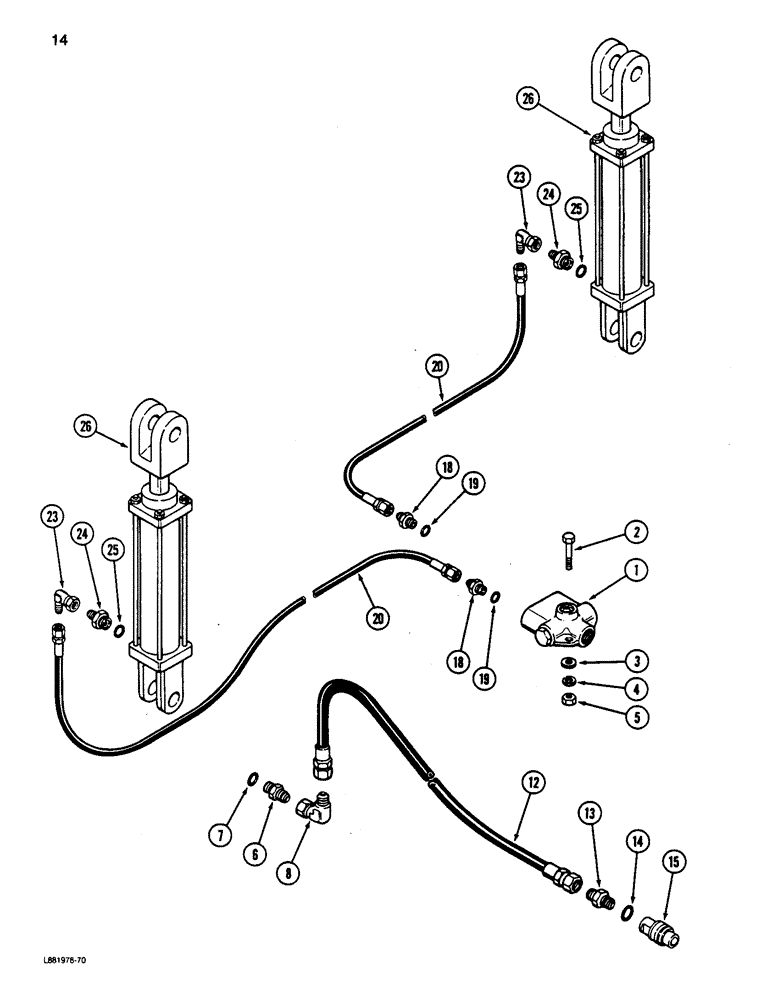

Запчасти Case IH 5200 (14) - MARKER HYDRAULICS, AUTOMATIC ALTERNATING HYDRAULIC SELECTOR

1

REF

INSTRUCTION

VALVE ASSEMBLY - alternating marker control (See Page 25)

1шт.

2

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

3

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

2шт.

4

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

5

9635082

NUT,5/16" - 18, Gr 5

2шт.

6

93207C1

HYD CONNECTOR

CONNECTOR - restrictor, 1/2 inch tube

1шт.

7

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 inch tube

1шт.

8

9410281

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree

1шт.

12

168132C2

HYDRAULIC HOSE,12.70 mm ID x 1650.00 mm

12.70 mm ID x 1650.00 mm

1шт.

13

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - straight, 1/2 inch tube

1шт.

14

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 inch tube

1шт.

15

544787R91

COUPLING, BREAK AWAY

COUPLER - hose, male

1шт.

18

587639R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring

CONNECTOR - straight, 1/2 to 3/8 inch tube

2шт.

19

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 inch tube

2шт.

20

129768C1

HYDRAULIC HOSE

HOSE - hydraulic, 115 inch long

2шт.

20

810601C1

HYDRAULIC HOSE,9.53mm ID x 4191mm L

HOSE - hydraulic, 165 inch long

2шт.

23

1189B8

ELBOW - 90 degree

2шт.

24

1263477C3

HYD CONNECTOR

CONNECTOR - straight, 1/2 to 3/8 inch tube (15 foot dri11)

1шт.

24

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR - straight, 3/8 inch tube (20 foot drill)

2шт.

25

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 inch tube (15 foot drill)

2шт.

25

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, 20 foot drill

2шт.

26

REF

INSTRUCTION

CYLINDER ASSEMBLY - lift (See Page 19 and 21)

2шт.
