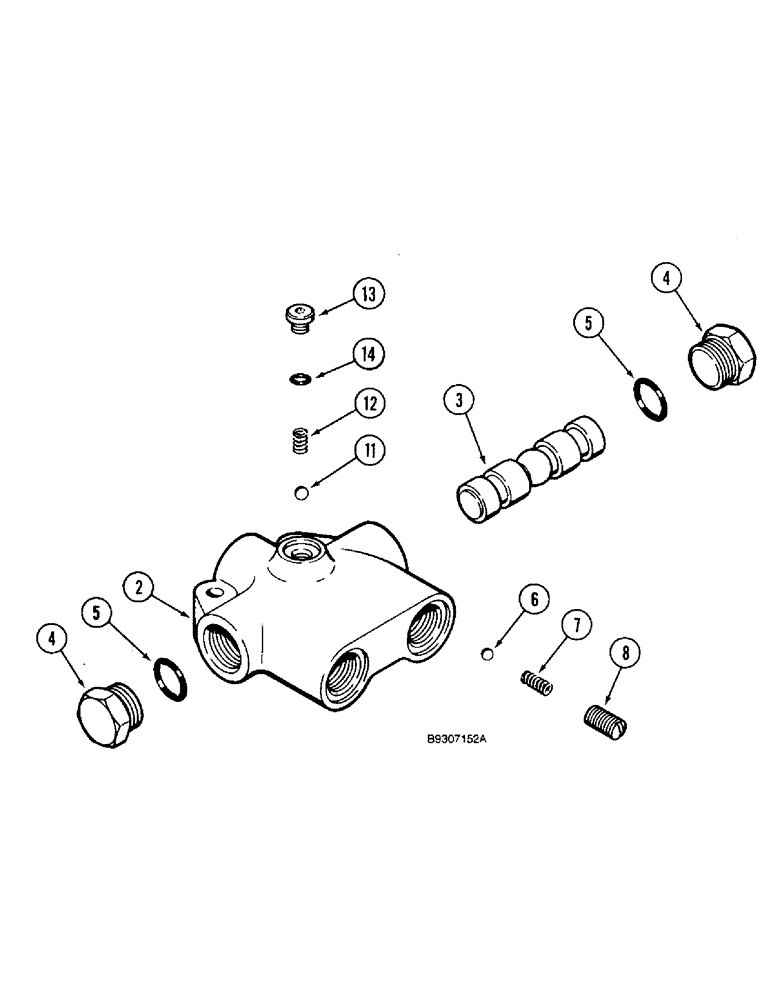

Запчасти Case IH 5300 (8-38) - ALTERNATING MARKER VALVE (08) - HYDRAULICS

0

93006C1

HYDRAULIC VALVE

sequencing 2 way

1шт.

2

NSS

NOT SOLD SEPARAT

VALVE Body

1шт.

Order 93006C1

1шт.

3

NSS

NOT SOLD SEPARAT

VALVE Spool

1шт.

Order 93006C1

1шт.

4

NSS

NOT SOLD SEPARAT

VALVE Plug

2шт.

Order 93006C1

1шт.

5

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

6

211-1006

BALL,3/16" Dia

2шт.

7

NSS

NOT SOLD SEPARAT

SPRING Ball

2шт.

Order 93006C1

1шт.

8

NSS

NOT SOLD SEPARAT

RETAINER Spring

2шт.

11

211-1008

BALL,1/4" Dia

1шт.

12

NSS

NOT SOLD SEPARAT

SPRING Ball

1шт.

Order 93006C1

1шт.

13

86632547

PLUG,Hex, 5/16"-24 ORB

1шт.

14

86010510

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

1шт.
