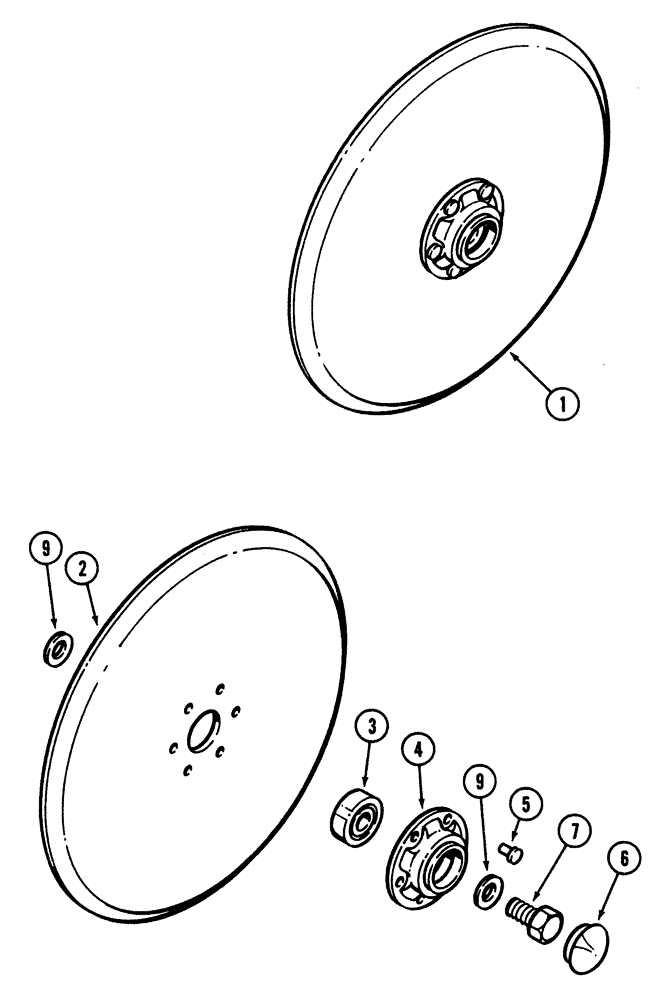

Запчасти Case IH 5300 (9-062) - DISC FURROW OPENER, HEAVY DUTY (09) - CHASSIS

1

90850C92

DISC

OPENER ASSY, 14" STD LEADING, Includes disc, bearing and rivets

2шт.

2

1337971C1

DISC

355.6 mm x 3.5 mm 6-hole opener/square

1шт.

3

1268017C91

BALL BEARING,15.9mm ID x 45.23mm OD x 18.67mm W

ball 1.78 x .73 x .62 id

1шт.

3

1268017C91GV

BEARING

Value, Ball Bearing

1шт.

4

90409C1

FLANGED BEARING,34.95 mm ID x 45.187 mm OD x 24.63 mm

bearing retainer

1шт.

5

86624111

RIVET,6.35mm OD x 14.29mm L

6шт.

6

324180A1

BEARING CAP,35.2 mm OD x 7.62 mm

bearing

2шт.

7

106-91020

LOCK BOLT,Locking, 5/8"-11 x 1 1/4", G5, Full Thd

1шт.

7

1978957C1

BOLT,Hex, 5/8" - 11 x 1-1/4", LH Thd, Gr 5

LK .625X1.25 UNC LH GR5 PLAIN, C/W .5 LOC-GRIP

1шт.

9

1268381C1

WASHER,16.66mm ID x 25.4mm OD x 0.05mm Thk

21/32" id x 1" od x .054 hardened

4шт.
