(W-19) - HYDRAULIC EQUIPMENT

Запчасти Case IH 54-SERIES (W-19) - HYDRAULIC EQUIPMENT

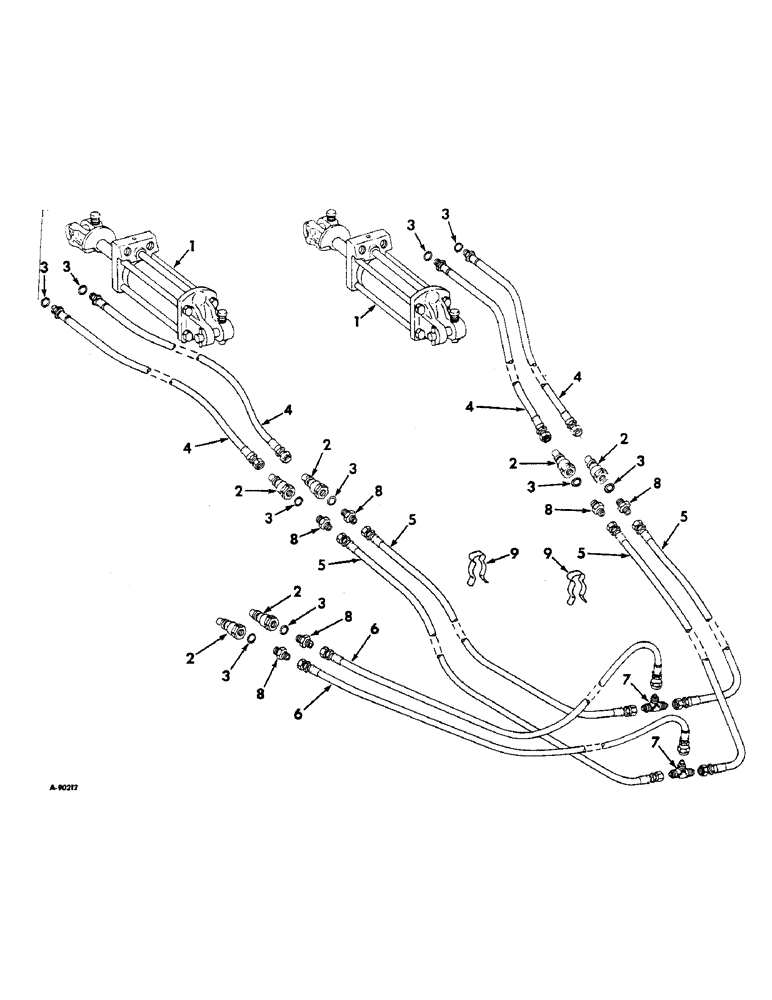

Схема запчастей Case IH 54-SERIES - (W-19) - HYDRAULIC EQUIPMENT
4
3
6
3
5
2
9
2
3
8
1
8
5
8
4
7
3
2
8
4
4
1
3
6
3
8
3
3
8
3
3
9
2
7
2
2
5
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

371291R93

HYDRAULIC CYLINDER

CYLINDER ASSY, hyd 2-1/2 x 8 planter only

2шт.

1

371292R92

HYDRAULIC CYLINDER

CYLINDER ASSY, hyd 3-1/2 x 8 planter & fertilizer combination

2шт.

2

395149R1

QUICK MALE COUPLING

COUPLING, self sealing male STR THD

1шт.

3

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

1шт.

4

461166R91

HOSE ASSY.

HOSE ASSY, 1/2 x 100 in.

4шт.

5

653337R91

HOSE ASSY, 1/2 x 49 hyd, for use with duplex hitch

4шт.

6

491957R1

HOSE ASSY, 1/2 x 95 hyd, for use with duplex hitch

2шт.

7

9402983

TEE,7/8"-14, 37 Degree

1-1/16-12 37 deg hyd flared tube three-way, for use with duplex hitch

2шт.

8

395150R91

COUPLING, QUICK, FEM

COUPLING ASSY, self-seal female, for use with duplex hitch

1шт.

9

487533R1

CLAMP, hyd hose

2шт.
