(9-066) - DEPTH PRESS WHEEL, MULCH-TILL (GRAIN DRILLS BSN CKB0030000)

Запчасти Case IH 5400 (9-066) - DEPTH PRESS WHEEL, MULCH-TILL (GRAIN DRILLS BSN CKB0030000) (09) - CHASSIS

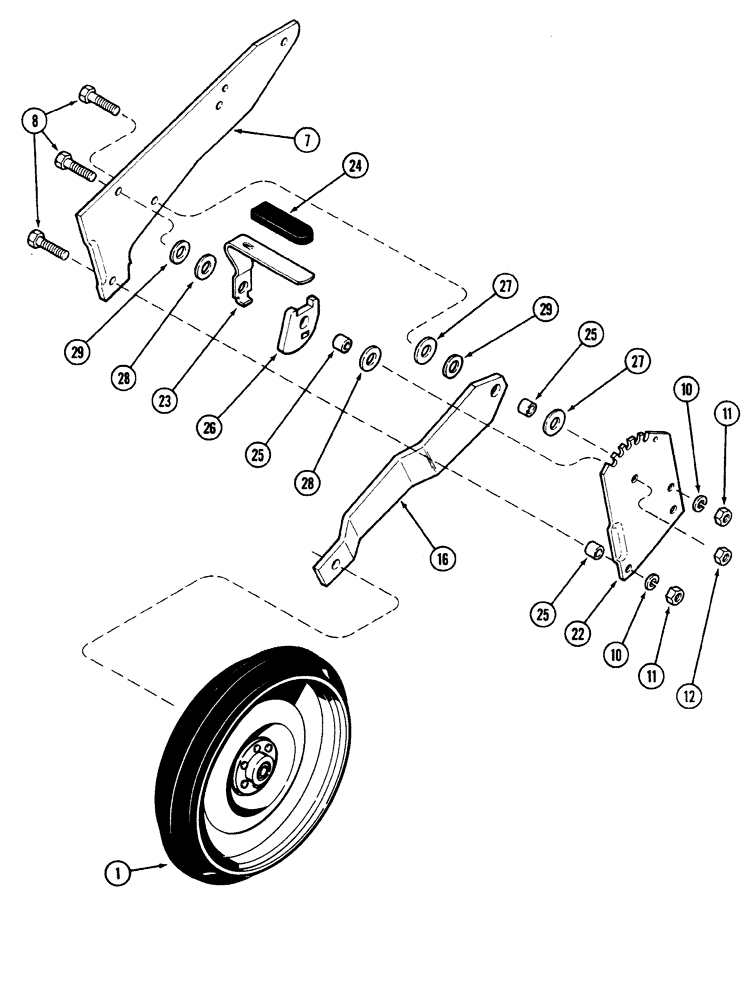

Схема запчастей Case IH 5400 - (9-066) - DEPTH PRESS WHEEL, MULCH-TILL (GRAIN DRILLS BSN CKB0030000) (09) - CHASSIS
29
11
16
23
29
25
12
7
22
27
1
8
26
10
28
10
25
11
24
25
28
27
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

TIRE AND WHEEL ASSEMBLY - PRESS

1шт.

7

1976490C1

PLATE

presswheel mount

1шт.

8

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

3шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

11

280431

NUT,1/2"-13, G5

2шт.

12

232-4118

NUT,1/2"-13, GC

1шт.

16

1333881C4

BAR

13" presswheel support

1шт.

22

1973001C1

SECTOR

PRESSWHEEL ADJUSTMENT

1шт.

23

842696C2

ADJUSTER

presswheel

1шт.

24

1958265C1

GRIP

handle vinyl 1/4" x 1" x 4" black

1шт.

25

842699C1

SPACER

adjustment plate

3шт.

26

842698C1

CAM

PRESS WHEEL

1шт.

27

87034831

WASHER,0.78" ID x 1.5" OD x 0.12" Thk

2шт.

28

1960614C1

WASHER,20mm ID x 35mm OD x 1.58mm Thk

nylon 25/32" x 1 3/8" x .063

2шт.

29

495-81036

WASHER,19.84mm ID x 31.75mm OD x 0.84mm Thk

4шт.
