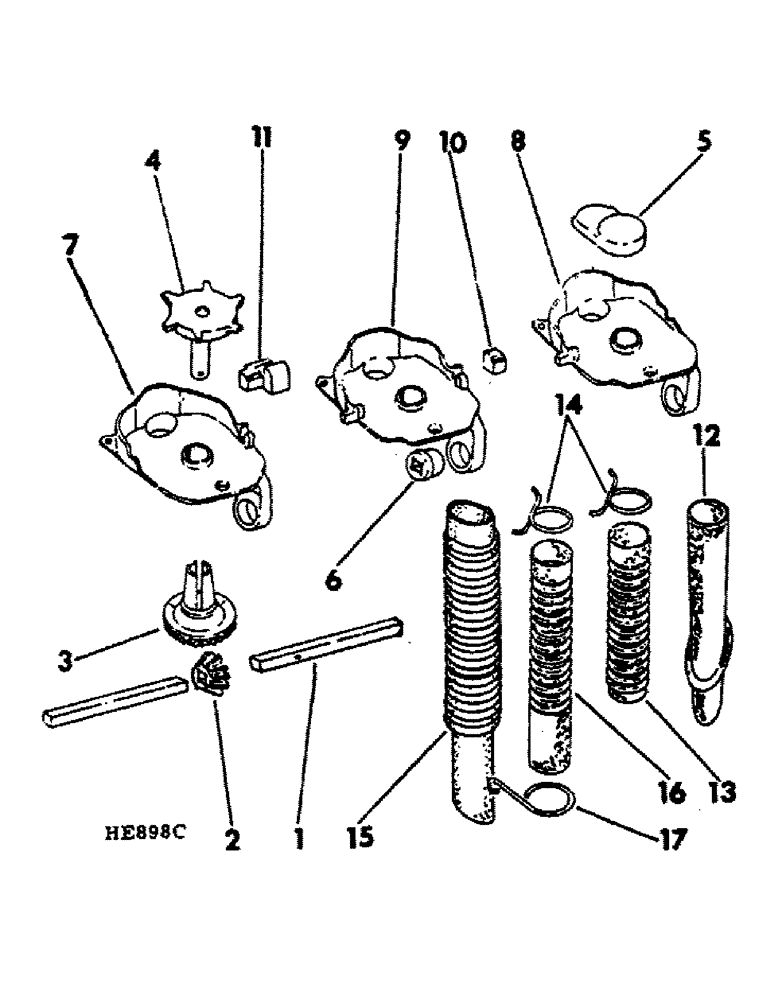

Запчасти Case IH 620 (A-16) - FERTILIZER FEED MECHANISM

1

BAR, fertilizer feed shaft, 14 x 6, for service order, 1, 816228C1, 92.25 inch bar and, Serial Range: cut-80.25

1шт.

1

816228C1

BAR

fertilizer feed shaft, 16 x 6 x 14 x 7

1шт.

1

BAR, fert. feed shaft, 20 x 6 & 16 x 8, for service order 1, 816228C1, 92.25 inch bar and, Serial Range: cut-58.25

2шт.

1

BAR, fert. feed shaft, 24 x 6 & 20 x 7, for service order 1, 816228C1, 92.25 inch bar and, Serial Range: cut-68.25

2шт.

1

BAR, fert. feed shaft, 24 x 7 & 28 x 6, for service order 1, 816 228C1, 92.25 inch bar and, Serial Range: cut-79.25

2шт.

112050

PIN,4.76mm OD x 22.23mm L

3/16 x 7/8 sq end STR, 1 per bar

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), , 1 per bar 3/16" x 1"

1шт.

569875R1

SQ HOLE WASHER

.781 sq x 1.750 x .054, 1 per bar

1шт.

2

603463R2

GEAR

bevel pinion 12T, 1 per star wheel

1шт.

3

F282C

GEAR

feed shaft bevel, 1 per star wheel

1шт.

4

602554R11

DRIVE SPROCKET

WHEEL ASSY, star feed, includes 1, N62414, pin, 14 used 14 x 6 and 14 x 7, 16 used 16 x 6 and 16 x 8, 20 used 20 x 6 and 20 x 7, 24 used 24 x 6 and 24 x 7, 28 used 28 x 6

1шт.

N62414

PIN,3.96mm OD x 28mm L

shear, 1 pin used per wheel

1шт.

5

603593R1

BLOCK

SHUT-OFF, fertilizer feed, 1 per star wheel

1шт.

6

603462R1

TRUNNION

bevel pinion, 1 per star wheel

1шт.

7

603451R2

PLATE

bottom end LH, 1 used 14 x 6, 16 x 6 and 14 x 7, 2 used 20 x 6, 24 x 6, 28 x 6, 20 x 7, 24 x 7 and 16 x 8

1шт.

8

603452R2

PLATE

bottom end RH, 1 used 14 x 6, 16 x 6 and 14 x 7, 2 used 20 x 6, 24 x 6, 28 x 6, 20 x 7, 24 x 7 and 16 x 8

1шт.

9

603453R2

PLATE

bottom intermediate, 12 used 14 x 6, 14 x 7 and 16 x 8, 14 used 16 x 6, 16 used 20 x 6 and 20 x 7, 20 used 24 x 6 and 24 x 7, 24 used 28 x 6

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

1/4-20 x 5/8 hex-hd, 27 used 14 x 6, 28 used 14 x 7, 31 used 16 x 6 and 16 x 8, 38 used 20 x 6, 39 used 20 x 7, 46 used 24 x 6, 48 used 24 x 7, 56 used 28 x 6

1шт.

120585

SCREW,Sl Flat Hd, 1/4" - 20 x 5/8"

Slotted Flat Hd, 1/4"-20 x 5/8", 1 screw used per plate

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1 per bolt & screw 1/4"-20, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , 1 per bolt & screw 1/4"

1шт.

10

815390C1

SPACER

bottom plate, 20 x 6

18шт.

10

603457R1

SPACER

bottom plate, 13 used 14 x 7, 22 used 24 x 7

1шт.

11

815391C1

BLOCK

SPACER, bottom plate, 16 x 8

14шт.

11

816229C1

SPACER

bottom plate, 18 used 20 x 7

1шт.

12

607289R2

TUBE,1.25" OD, 7" Length

combined delivery, 1 per feed

1шт.

13

603588R3

TUBE,1.25" ID, 1.687" OD, 51, 3" Length

separate delivery, for use on machines equipped w/double disk cast boot furrow opener, opt to use 1, 603101R93, pkg, tube required to have 51 convolutions, approximately 7.1 inch minimum length and 30.1 inch maximum length

1шт.

13

603101R93

SET OF PARTS

PACKAGE, separate delivery tube, for use on machines equipped w/double disk cast boot furrow opener, opt to use 1, 603588R3, tube

1шт.

14

603591R1

SPRING

fertilizer tube upper, for separate fertilizer tube

1шт.

15

819353C2

TUBE

separate delivery, for use w/double disk furrow opener w/steel boot, tube required to have 43 convolutions, approximately 13.68 inch minimum length and 36.59 inch maximum length

1шт.

16

603589R3

TUBE

separate delivery for use w/single disk F/O, tube required to have 66 convolutions, approximately 10-3/4 inch minimum length and 40-3/4 inch maximum length

1шт.

17

603592R1

SPRING CLIP

CLAMP, fertilizer tube lower, for use w/single disk F/O

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.
