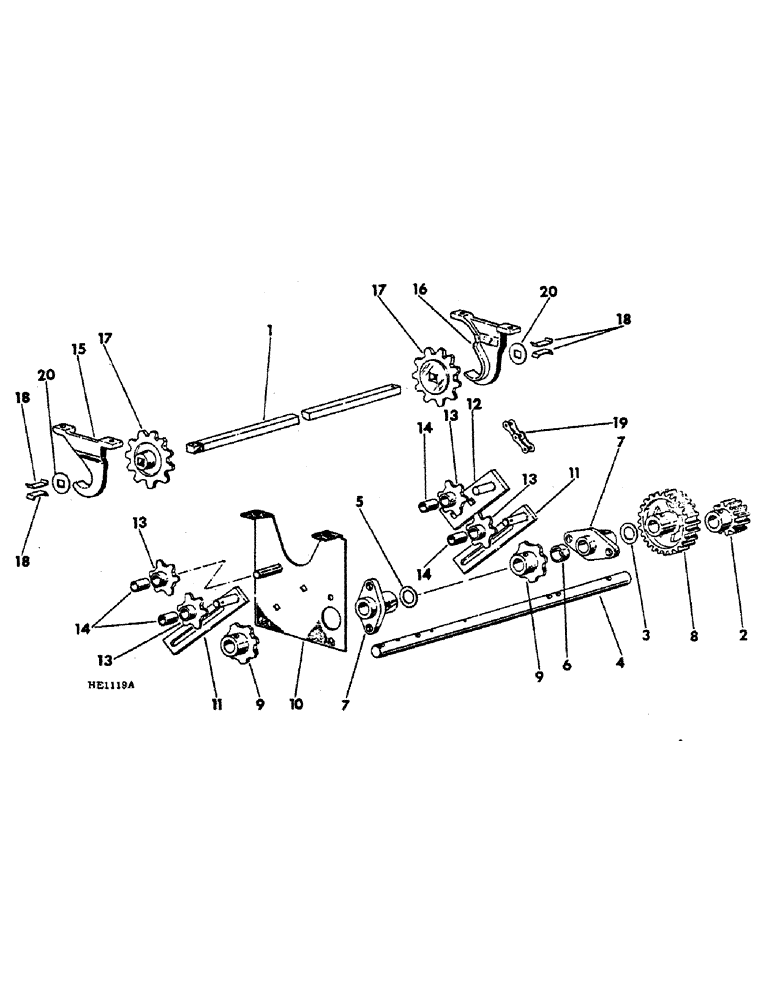

Запчасти Case IH 620 (A-18) - FERTILIZER DRIVE

1

BAR, fertilizer feed shaft, for service part number of applicable size refer to fertilizer feed mechanism

1шт.

2

816268C1

GEAR

fertilizer drive 12T

1шт.

Q850

PIN

3/8 x 1-7/8 std-hd-dld

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

3

591715R1

WASHER

1.031 x 1.500 x .054

1шт.

4

816269C2

SHAFT

fertilizer drive, 14 x 6, 16 x 6 and 14 x 7

1шт.

4

816270C2

SHAFT

fertilizer drive, 24 x 6, 28 x 6 and 20 x 7

1шт.

4

819090C2

SHAFT

fertilizer drive, 16 x 8

1шт.

4

816271C2

SHAFT

fertilizer drive, 20 x 6 & 24 x 7

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), , 20 x 6 1/8" x 1 1/2"

1шт.

591715R1

WASHER

1.031 x 1.500 x .054

1шт.

5

20704R1

WASHER

1-1/32 x 1-1/2 x 11 ga, 1 used 20 x 6, 24 x 6, 24 x 7 and 28 x 6, 2 used 16 x 8, 3 used 20 x 7

1шт.

6

M73125

SPACER,1" Pipe x 3/8"

fertilizer drive sprocket, 1 used 14 x 6, 16 x 6, 14 x 7 and 20 x 7, 2 used 20 x 6, 24 x 6, 24 x 7, 28 x 6 and 16 x 8

1шт.

7

603121R1

HUB CAP

BEARING, fertilizer drive shaft, 2 used 14 x 6, 16 x 6, 20 x 6, 24 x 6, 20 x 7, 24 x 7, 14 x 7 and 28 x 6, 3 used 16 x 8, 1 fitting used per bearing

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd, 2 bolt used per bearing

1шт.

120377

NUT,3/8" - 16, Gr 5

1 used per bolt 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8 PTF short 65D lub

1шт.

8

816272C1

GEAR

fertilizer drive shaft 24T

1шт.

Q850

PIN

3/8 x 1-7/8 std-hd-dld

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

9

816793C1

SPROCKET ASSY.

SPROCKET, fertilizer drive 7T, 1 used 14 x 6, 16 x 6 and 14 x 7, 2 used 20 x 6, 24 x 6, 28 x 6, 20 x 7, 24 x 7 and 16 x 8

1шт.

103774

PIN,3/8" x 1 5/8"

3/8 x 1-5/8 straight, 1 pin used per socket

1шт.

10

816274C1

SUPPORT

ASSY, fertilizer drive, 1 used 20 x 6, 24 x 6, 20 x 7, 24 x 7 and 28 x 6, 2 used 16 x 8

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd 2, 20 x 6, 24 x 6, 20 x 7, 28 x 6, 24 x 7, 16 x 8

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), , 1 pin used per support 3/16" x 1"

1шт.

120377

NUT,3/8" - 16, Gr 5

1 per bolt 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

21796R1

WASHER

.656 x 1.000 x .054, 2 washer used per support

1шт.

11

816040C2

BRACKET

ASSY, fertilizer drive chain tightener, 1 used 14 x 6, 16 x 6 and 14 x 7, 2 used 20 x 6, 24 x 6, 28 x 6, 20 x 7, 24 x 7 and 16 x 8

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8-16 x 1 carriage, 2 bolts used per bracket

1шт.

120377

NUT,3/8" - 16, Gr 5

1 used per bolt 3/8"-16, G5

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), , 1 per bracket 3/16" x 1"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

619856R1

WASHER

.406 x 1.000 x .056, 1 washer used per bolt

1шт.

2196R1

WASHER, .656 x 1.000 x .054, 1 per bracket

1шт.

12

816786C1

BRACKET

ASSY, fert drive chain idler machines built 1972 & since, used on all sizes but 16 x 8

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8-16 x 1 carriage

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

13

819457C1

SPROCKET

6T fert drive tightener, 2 used 14 x 6, 16 x 6 and 14 x 7, 4 used 20 x 6, 24 x 6, 28 x 6, 20 x 7, 24 x 7 and 16 x 8

1шт.

14

BUSHING, tightener sprocket, for service order 1, 819457C1, sprocket, for use w/cast type sprocket, 2 used 14 x 6, 16 x 7 and 14 x 7, 4 used 20 x 6, 24 x 6, 28 x 6, 20 x 7, 24 x 7 and 16 x 8

1шт.

15

816277C1

HANGER

fert drive sprocket RH, 1 used 14 x 6, 16 x 6, 20 x 7 and 24 x 7, 2 used 20 x 6, 24 x 6, 28 x 6 and 16 x 8, used RH side 20 x 7 and 24 x 7

1шт.

16

816276C1

HANGER

fert driven sprocket LH, 14 x 7, 20 x 7 and 24 x 7

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1 per hanger, 24 x 6, 16 x 8, 14 x 6, 16 x 6, 20 x 6, 2 per hanger, 24 x 7, 14 x 7, 28 x 6, 3 per hanger, 20 x 7 Hex, 1/4"-20 x 3/4", G5, Full Thd

1шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1 used per hanger, 24 x 6, 20 x 7, 16 x 8, 14 x 6, 16 x 6, 20 x 6 Hex, 1/4"-20 x 1", G5

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1 used per bolt 1/4"-20, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , 1 used per bolt 1/4"

1шт.

17

816278C1

SPROCKET ASSY.

SPROCKET, fertilizer driven 11T, 1 used 14 x 6, 16 x 6 and 14 x 7, 2 used 20 x 6, 24 x 6, 28 x 6, 20 x 7, 24 x 7 and 16 x 8

1шт.

18

816279C1

CLIP

sprocket retaining, 2 used 14 x 6, 16 x 6 and 14 x 7, 4 used 20 x 6, 24 x 6, 28 x 6, 20 x 7, 24 x 7 and 16 x 8

1шт.

19

CHAIN, fertilizer drive, 1 per drive, for service order 1, 569089R91, 10 foot roll of 1-1/4 inch extended pitch agricultural roller chain, reduce to 30 links, add 2, 587372R91, connecting link and 1, 456929R91, offset link

1шт.

456929R91

CHAIN LINK

LINK, #2050 double pitch offset

1шт.

587372R91

CONNECTING LINK

LINK, #2050 double pitch connecting

2шт.

20

569875R1

SQ HOLE WASHER

25/32 sq x 1-3/4 x 16 ga, 1 per 11T fertilizer sprocket

1шт.
