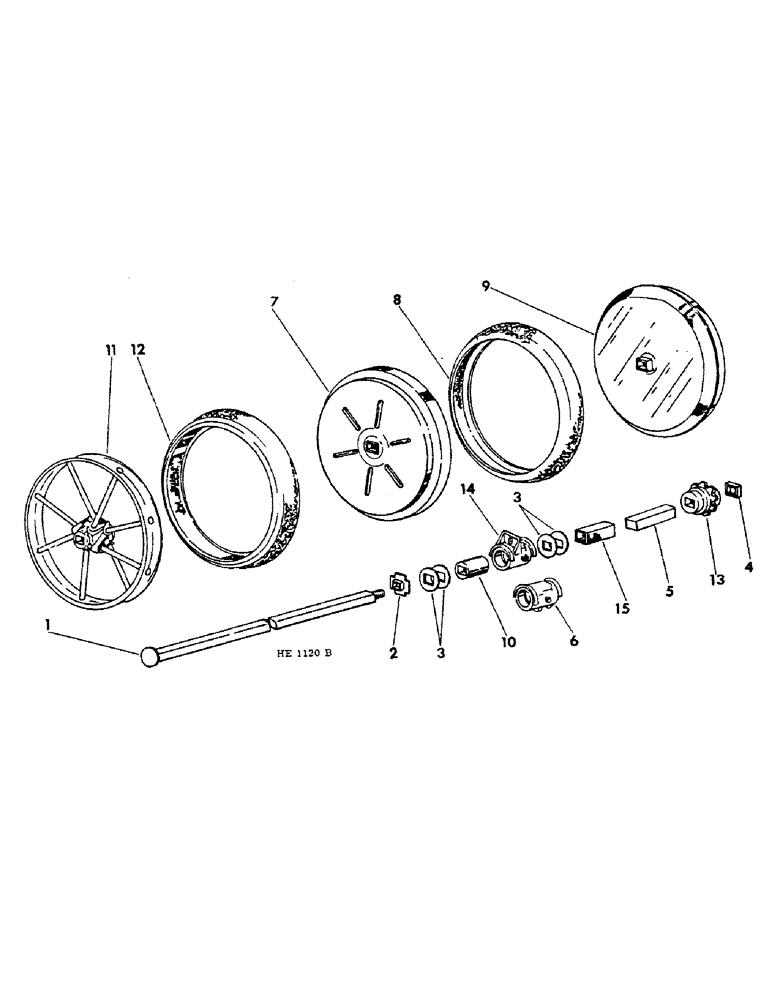

Запчасти Case IH 620 (A-40) - PRESS WHEEL GANG

1

816146C3

BOLT,Wheel, 1" - 8 x 42.1"

gang arbor LH and RH, 14 x 6

2шт.

1

816147C3

SPECIAL BOLT,1" - 8 x 48.1"

BOLT, gang arbor LH and RH, 16 x 6 and 14 x 7

2шт.

1

816148C3

BOLT,Wheel, 1" - 8 x 36 1/2"

gang arbor LH and RH, 20 x 6

2шт.

1

816149C3

BOLT,1" - 8 x 49.4"

gang arbor endtre, 20 x 6

1шт.

1

819093C3

BOLT,1" - 8

gang arbor LH and RH, 16 x 8

2шт.

1

819094C3

BOLT,1" - 8

gang arbor LH, RH & centre, 24 x 6

3шт.

1

816151C3

BOLT,Wheel, 1" - 8 x 41 1/2"

gang arbor LH and RH, 20 x 7

2шт.

1

816152C3

BOLT,Wheel, 1" - 8 x 56.4"

gang arbor centre, 20 x 7

1шт.

1

816153C3

BOLT,Wheel, 1" - 8 x 54.3"

gang arbor LH, RH & centre, 24 x 7

3шт.

1

816901C3

BOLT,Wheel, 1" - 8 x 53.4"

gang arbor LH and RH, 28 x 6

2шт.

1

816900C3

BOLT,Wheel, 1" - 8 x 59.6"

gang arbor centre, 28 x 6

1шт.

427649

SLOTTED NUT,1"-8, G5

NUT, 1 SLT type 5, 1 per gang bolt

1шт.

432-1232

COTTER PIN,3/16" OD x 2" L

3/16" x 2", 1 per gang bolt

1шт.

25540R1

WASHER,1 1/16" x 2" x .134", HDN

1/062 x 2.999 x .134 PHC hdn, as req'd 3 max per bolt

1шт.

2

816154C1

SQ HOLE WASHER

lock tab, 1 washer used per arbor bolt

1шт.

3

603843R1

SQ HOLE WASHER,32.54mm ID x 69.85mm OD x 3.05mm Thk

1-9/32 sq x 2-3/4 x 11 ga pl

1шт.

4

816155C2

SPACER

drive sprocket, 14 x 7, 24 x 7, 16 x 8, 6, 20 x 7

2шт.

5

604399R2

SPACER

gang bearing, 14 x 7

8шт.

5

606108R2

SPACER

outer gang bearing, 16 x 8, 20 x 7

4шт.

5

605521R2

SPACER

outer gang inner, 16 x 8

6шт.

5

594650R2

SPACER

bearing, 24 x 7

12шт.

5

603840R2

SPACER

sprocket 2, 16 x 8 prior to Nov 1978

1шт.

5

606107R2

SPACER

press wheel 4, 16 x 8

1шт.

5

816158C2

SPACER

press wheel 7, 14 x 6, 9, 16 x 6

1шт.

6

603835R1

ROLLER ASSY.

BEARING, gang, 24 x 7, machines built prior to April 1975

6шт.

6

603905R1

BEARING ASSY

BEARING, gang, 4 used 14 x 6, 16 x 6 and 14 x7, 6 used 20 x 6, 24 x 6, 20 x 7, 28 x 6 and 16 x 8, machines built prior to April 1975

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 x 2 hex-hd, 1 used per bearing

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex, 1 used per bolt

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 1 used per bolt 5/8"

1шт.

464623R1

WASHER

.656 x 1.500 x .105

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

7

816189C2

WHEEL,501.65mm OD x 82.55mm W

ASSY, 3 x 20 shielded press, 1 per furrow opener

1шт.

8

816195C2

TYRE/TIRE

TIRE, 3 x 20 press wheel oval, 1 used per 816189C2, wheel

1шт.

9

605082R92

WHEEL

ASSY, shielded rounded rim, 1 per furrow opener

1шт.

10

603900R1

SPACER

TRUNNION, gang bearing, 4 used 14 x 6, 16 x 6 and 14 x7, 6 used 20 x 6, 24 x 6, 28 x 6, 20 x 7, and 16 x 8, 6 used 24 x 7 April, 1975 season and since

1шт.

10

603834R1

SPACER

TRUNNION, gang bearing, 24 x 7, machines built prior to April 1975

6шт.

11

604042R91

WHEEL

2-1/4 x 20 open spoke concave rim press machines built prior to April 1975, 14 used 14 x 6 and 14 x 7, 16 used 16 x 6 and 16 x 8, 20 used 20 x 6 and 20 x 7, 24 used 24 x 6 and 24 x 7, 28 used 28 x 6

1шт.

12

604253R2

TYRE/TIRE

TIRE, 2-1/4 x 20 press wheel, 1 used per 604042R91, wheel, machines built prior to April 1975

1шт.

13

603902R2

SPROCKET ASSY.

SPROCKET, main drive 10T

1шт.

14

819140C1

BRACKET

BEARING, gang, 4 used 14 x 6, 16 x 6 and 14 x 7, 6 used 20 x 6, 24 x 6, 20 x 7, 24 x 7, 28 x 6 and 16 x 8, machines built April 1975 & since

1шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

BOLT, 5/8-11 x 1-3/4 hex-hd, 1 bolt used per bearing

1шт.

174763C1

FLANGE NUT,Flg, USR, 5/8"-12

5/8-11 hex serrated flange, 1 nut used per bolt

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , 1 fitting used per bearing 1/8"-27 x .66 lg

1шт.

15

604037R2

SPACER

centre gang sprocket & wheel, 10 used 16 x 8, prior to May 1978

1шт.

15

SPACER, press wheel, for service prior to May 1978 order 1, 816155C2, spacer, 1, 603843R1, washer, 4 used 20 x 7, 8 used 16 x 8

1шт.

15

SPACER, press wheel, 20 x 7, for service prior to May 1978 order 1, 606108R2, spacer, 1, 603843R1, washer, 7 used 14 x 6, 9 used 16 x 6

4шт.

15

816159C1

SPACER

press wheel, 16 x 8, 10, 20 x 6

4шт.

15

816160C1

SPACER

press wheel, 14 used 24 x 6, 18 used 28 x 6

1шт.

15

816161C1

SPACER

press wheel, 2 used 16 x 8, 10 used 20 x 7

1шт.

15

816162C1

SPACER

press wheel, 24 x 7

14шт.

15

604036R2

SPACER

press wheel, 14 x 7

7шт.

15

605520R1

SPACER

press wheel, 2, 16 x 8 Nov 1978 & since

1шт.

Note - See S4304 for Field Change Over Pkg for Heavy Duty Wheels 11/22/95

1шт.
