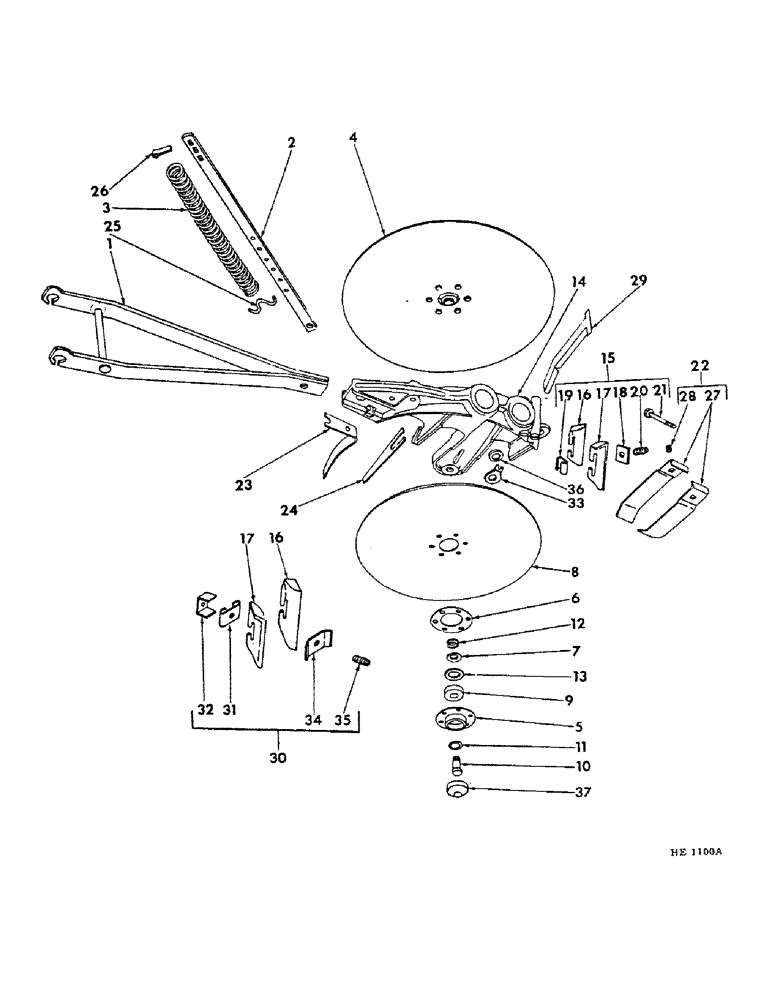

Запчасти Case IH 620 (A-50) - DOUBLE DISK FURROW OPENER, SEALED BALL BEARING CAST BOOT TYPE, MACHINES PRIOR TO 1975 SEASON

1

815491C1

BAR

DRAWBAR ASSY, front rank

1шт.

1

815492C1

DRAWBAR

ASSY, rear rank

1шт.

2

603667R1

ROD

BAR, pressure spring front rank

1шт.

2

816457C1

BAR

pressure spring rear rank

1шт.

32-2028

COTTER PIN,5/16" x 1 3/4"

PIN, SPLIT (COTTER), 5/16" x 1 3/4"

1шт.

3

N42899

SPRING

pressure bar

1шт.

4

603020R92

DISK HARROW

OPENER ASSY, IH GRAIN DRILL, w/hub and bearing, consists of (1) retainer 602989R1, (1) gasket 602992R1, (1) flange 602994R1, (1) blade 603013R2, (6) rivet 104081, (1) bearing 465004R91

2шт.

5

602989R1

FLANGE,1.41" ID x 3.25" OD x 0.63"

bearing

2шт.

104081

RIVET,But Hd, 1/4" x 1/2"

1/4 x 1/2 small b-hd

12шт.

6

602992R1

GASKET

paper

2шт.

7

602994R1

FLANGE

seal

2шт.

8

603013R2

PLOW DISC

BLADE, disk

2шт.

9

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

disk

2шт.

10

603010R1

BOLT (SPREADER)

BOLT, disk LH

1шт.

10

603011R1

BOLT (SPREADER)

BOLT, disk RH

1шт.

11

141707

WASHER,Int Tooth, 11/16"

11/16 internal-t-lk

2шт.

12

602988R1

SPACER

seal retainer

2шт.

13

464628R1

SEAL

dirt, replaces 602993R1

2шт.

14

BOOT ASSY, double disk, for service order 1, 603663R2, boot and 1, 819819C91, scraper assy, includes 1, 603663R2, boot and 1, 603822R92, scraper assy

1шт.

14

603663R2

BOOT

double disk

1шт.

178081

HOLE PLUG BUTTON,1 3/8"

PLUG, 1-3/8 inch button

1шт.

180149

LOCK SCREW,Hex, 7/16" - 14 x 1 1/2", Gr 5

BOLT, 7/16-14 x 1-1/2 hex-hd

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 hex.

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

15

603822R92

BLADE

SCRAPER ASSY, double disk inside, for service order 1, 819819C91, scraper assy, consists of (1) scraper 605974R1, (1) scraper 605975R1, (1) spreader N62538, (1) hinge N62537, (1) spring N62536, (1) bolt 13375R1, (1) nut 274881, (1) washer 134238R1

1шт.

15

819819C91

BLADE

SCRAPER ASSY, double disk inside, consists of (1) scraper 816665C1, (1) scraper 816666C1, (1) spreader 816668C1, (1) hinge 819808C1, (1) spring N62536, (1) bolt 152574C1, (1) nut 274881

1шт.

16

605974R1

BLADE

SCRAPER, inside RH, for service on machines equipped w/603822R92, scraper assy

1шт.

16

816666C1

BLADE

SCRAPER, inside RH, for service on machines equipped w/819819C91, scraper assy

1шт.

17

605975R1

BLADE

SCRAPER, inside LH, for service on machines equipped w/603822R92, scraper assy

1шт.

17

816665C1

BLADE

SCRAPER, inside LH, for service on machines equipped w/819819C91, scraper assy

1шт.

18

N62538

KNIFE ASSY

SPREADER, inside scraper, for service on machines equipped w/603822R92, scraper assy

1шт.

18

816668C1

LEDGER PLATE

SPREADER, scraper, for service on machines equipped w/819819C91, scraper assy

1шт.

19

N62537

HINGE

inside scraper, for service on machines equipped w/603822R92, scraper assy

1шт.

19

819808C1

HINGE

scraper, for service on machines equipped w/819819C91, scraper assy

1шт.

20

N62536

VALVE SPRING

SPRING, inside scraper

1шт.

21

13375R1

BOLT, 5/16-18 x 2-1/2 sq-hd mach, for service on machines equipped w/603822R92, scraper assy

1шт.

21

152574C1

BOLT,Sq Hd, 5/16" - 18 x 2 3/4"

5/16-18 x 2-3/4 sq-hd mach, for service on machines equipped w/819819C91, scraper assy

1шт.

274881

WASHER

5/16-18 hex lock

1шт.

134238R1

WASHER

.344 x 1.000 x .054

1шт.

22

598935R91

STRIPPER PACKAGE

PACKAGE, double disk outside scraper

1шт.

23

NA62293

GUARD ASSY.

GUARD, double disk boot

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 hex-hd

1шт.

25-285

SQUARE NUT,Sq, 5/16"-18

5/16-18 square

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

24

N62294

DEFLECTOR

grain

1шт.

25

F6366

LOCK

pressure spring

1шт.

26

605964R1

CLIP

special flat cotter

1шт.

27

SCRAPER, double disk outside (not serviced separately) for service order 1, 598935R91, package

2шт.

28

SPRING, double disk outside scraper (not serviced separately) for service order 1, 598935R91, package

1шт.

29

603590R1

DEFLECTOR

fertilizer, double disk

1шт.

30

598443R91

SPACER

1шт.

PACKAGE, double disk furrow opener disk spacer, special, to be used only in conjunction w/598421R1 & 598442R1, consists of (1) hinge 598419R1, (1) channel 598420R1, (1) washer 598421R1, (1) washer 598422R1, (1) clip 614323R2, (1) spring N62536, (2) washer 22258R1

1шт.

31

598419R1

CHANNEL

HINGE, scraper, special

1шт.

32

598420R1

CHANNEL, hinge spacer, special

1шт.

33

598421R1

WASHER

tapered LH, special

1шт.

33

598422R1

WASHER

tapered RH, special

1шт.

34

614323R2

CLAMP

CLIP, scraper spreader, special

1шт.

35

N62536

VALVE SPRING

SPRING, scraper

1шт.

36

22258R1

WASHER

.656 x 1.000 x .027

2шт.

37

603012R1

DUST CAP

CAP, dirt

1шт.
