(C-11) - ENDWISE TRANSPORT, CASTER WHEEL AND AXLE, FOR USE ON FOURTH MACHINE ENDWISE TRANSPORT

Запчасти Case IH 620 (C-11) - ENDWISE TRANSPORT, CASTER WHEEL AND AXLE, FOR USE ON FOURTH MACHINE ENDWISE TRANSPORT

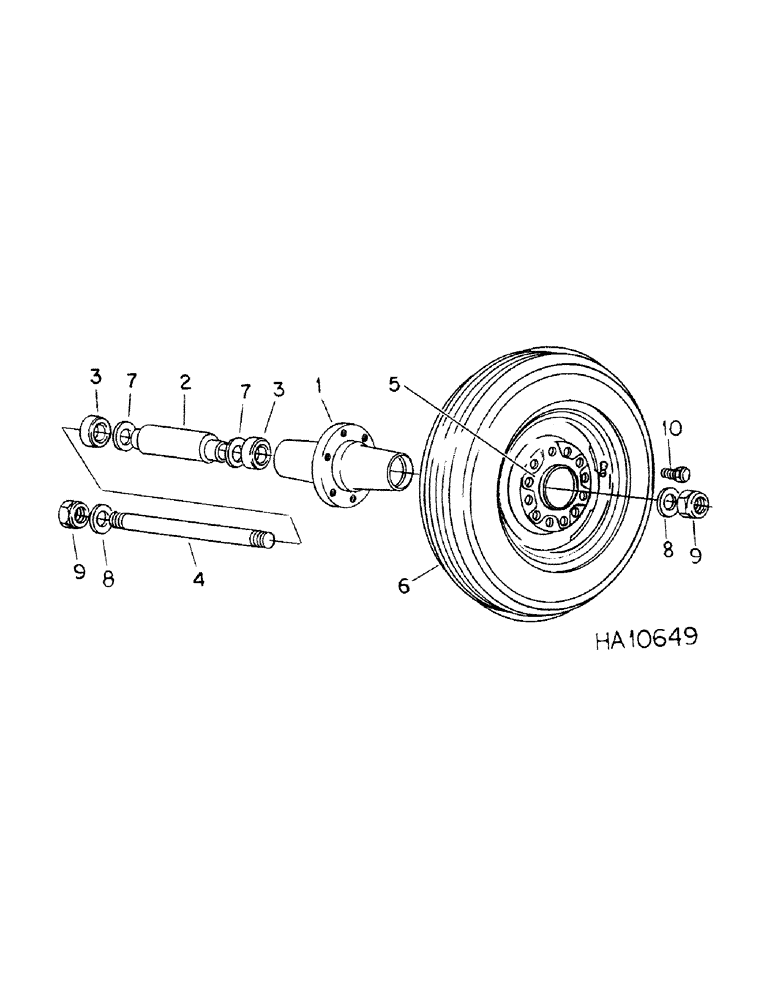

Схема запчастей Case IH 620 - (C-11) - ENDWISE TRANSPORT, CASTER WHEEL AND AXLE, FOR USE ON FOURTH MACHINE ENDWISE TRANSPORT
9
3
1
8
3
9
10
5
2
4
7
7
8
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

541757R1

HUB

caster wheel

1шт.

2

541758R1

TUBE

hub

1шт.

3

963078R91

BALL BEARING,1.1811" ID x 2.4409" OD x 0.9449"

wheel

2шт.

4

541759R2

ROD

axle

1шт.

5

481344R91

WHEEL

14 x 8 KB

1шт.

6

TIRE, 9.5L-14 6 ply I-1 tubeless

1шт.

810768C1

VALVE

TR413, replaces 387841R91

1шт.

7

609836R1

WASHER

1.031 x 1.750 x .054

2шт.

8

492-11100

LOCK WASHER,1"

WASHER, LOCK, 1"

2шт.

9

9849633

NUT,1"-8, G5

2шт.

10

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

wheel

6шт.
