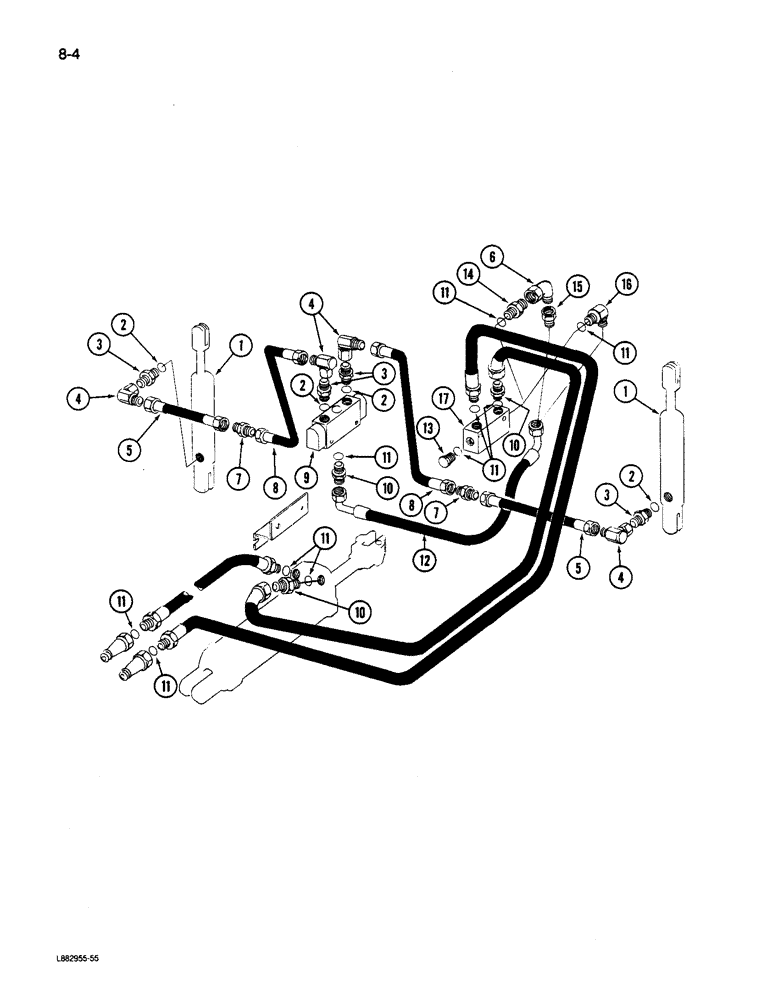

Запчасти Case IH 6200 (8-04) - MARKER HYDRAULICS, AUTOMATIC SEQUENCING (08) - HYDRAULICS

1

548207R93

CYLINDER ASSY.

CYLINDER ASSEMBLY - marker lift (Replaced by 145622C91)(See Note)

2шт.

461181R92

SEAL KIT

KIT - O-ring and seal, service

1шт.

1

145622C91

CYLINDER ASSY.,Double Acting, 50.8mm Rod, 204.7mm Stroke

CYLINDER ASSEMBLY - marker lift (See Note)

2шт.

145682C1

SEALING RING

KIT - O-ring and seal, service

1шт.

1

841038C91

CYLINDER ASSY.

CYLINDER ASSEMBLY - marker lift (See Note)

2шт.

843147C1

SEAL KIT

KIT - O-ring and seal, service

1шт.

2

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

4шт.

3

324273R1

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

CONNECTOR - short reducer, 1/2 inch 3/4-16 thread to 3/8 inch

4шт.

4

9410281

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree swivel, 1/2 inch tube 3/4-16 thread

4шт.

5

813537C1

HOSE ASSY.

HOSE ASSEMBLY - 3/8 x 64 inch (16x6)

2шт.

5

675974R91

HOSE ASSY.

HOSE ASSEMBLY - 3/8 x 40-1/2 inch (14x6)

2шт.

5

179411C1

HOSE

ASSEMBLY - 3/8 x 61 inch (20x6, 16x8, 20x7)(Replaces 675987R91)

2шт.

5

846151R91

HOSE

ASSEMBLY - 3/8 x 120 inch (28x6, 24x7)

2шт.

6

9410282

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

- 90 degree swivel, 7/8-14 inch flared (Use with valve 149988C91 only)

1шт.

7

9402787

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

CONNECTOR - 3/4-16 inch flared (Not used 28x6, 24x7)

2шт.

8

66875C1

HOSE ASSY.

HOSE ASSEMBLY - 3/8 x 36 inch (14x6, 20x6, 16x8)

2шт.

8

104792C1

HOSE,9.53mm ID x 431.8mm L, SAE 100R1

ASSEMBLY - 3/8 x 17 inch (16x6)

2шт.

8

1140444C1

HOSE ASSY.

HOSE ASSEMBLY - 3/8 x 45 inch (24x6, 20x7)

2шт.

9

REF

INSTRUCTION

VALVE ASSEMBLY - marker control (See Page 4-11)

1шт.

9

REF

INSTRUCTION

VALVE ASSEMBLY - marker control (See Page 4-11)

1шт.

9

REF

INSTRUCTION

VALVE ASSEMBLY - marker control (See Page 4-11)

1шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8 NC x 2-1/2 inch

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

10

481352R1

HYD CONNECTOR,3/4"-16, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - short reducer, 1/2 tube 3/4-16 x 5/8 tube 7/8-1

3шт.

11

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 inch OD tube

9шт.

12

840968C1

HOSE

ASSEMBLY - 1/2 x 24 inch

1шт.

13

9410360

PLUG

- hex, 7/8-14 inch O-ring boss

1шт.

14

841009C1

UNION

- restrictor (Used with 149988C91 only)

1шт.

15

386624R1

REDUCER,37 Degree, 7/8"-14, Fem x 3/4"-16 Male

ADAPTOR - reducer (Use with valve 149988C91 only)

1шт.

16

936450R91

ELBOW,90 Degree, 3/4"-16, 37 Degree x 7/8"-14, O-Ring

- 90 degree adjustable reducer, 1/2 tube 3/4-16 thread (Use with valves 149988C92 and 149986C91)

1шт.

17

592398R1

FLOW DIVIDER

BLOCK - flow divider

1шт.

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

- hex, 5/16 NC x 2 inch

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

20893R1

WASHER

- flat, 11/32 x 1 x 7/64 inch

2шт.

120376

NUT,5/16"-18, G5

2шт.
