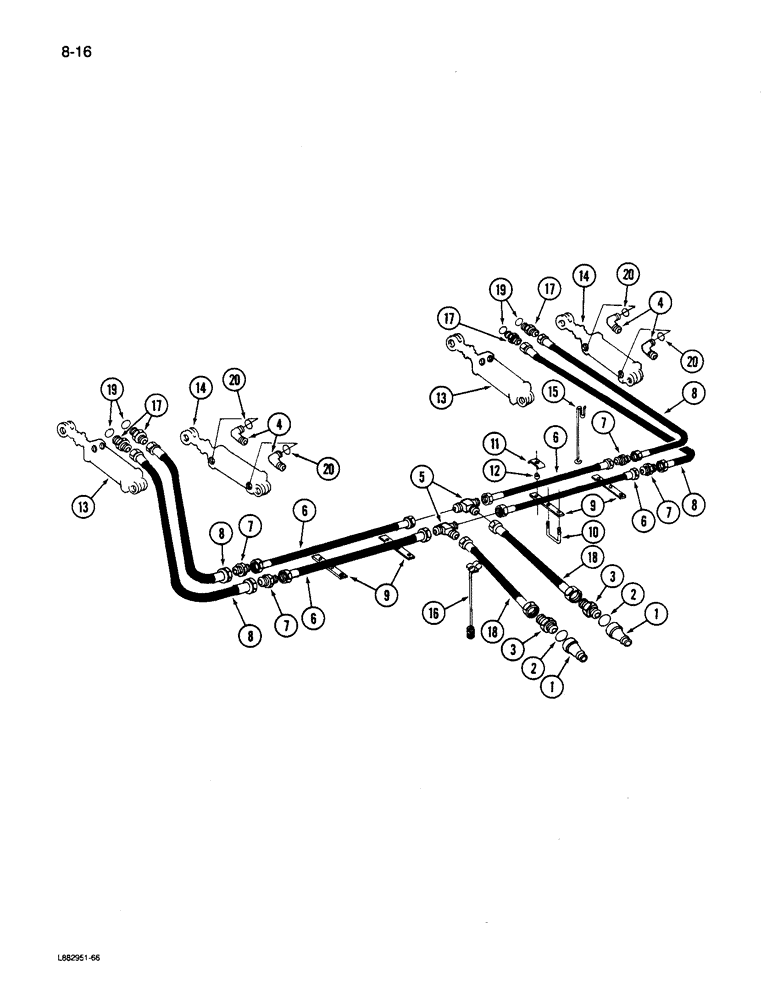

Запчасти Case IH 6200 (8-16) - HYDRAULIC LIFT SYSTEM TWO DRILL (08) - HYDRAULICS

1

395149R1

QUICK MALE COUPLING

COUPLER - hose, male (Optional with 544787R91)

2шт.

1

544787R91

COUPLING, BREAK AWAY

COUPLER - hose, male (Optional with 395149R1)

2шт.

2

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 inch OD tube

12шт.

3

481352R1

HYD CONNECTOR,3/4"-16, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - short reducer, 1/2 tube 3/4-16 x 5/8 tube 7/8-1

2шт.

4

556656R1

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1/2"-14, NPTF

- 90 degree (Use with 844025C92 cylinder)

4шт.

4

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

- 90 degree adjustable, 1/2 inch tube 3/4-16 thread (Use with 1272402C91 cylinder)

4шт.

5

9402982

TEE,3/4"-16, 37 Degree

- 3/4-16 inch flared

2шт.

6

851789C2

HOSE

- hydraulic, 20-1/2 inches long (16x6)

4шт.

6

1310709C1

HOSE

ASSEMBLY - 3/8 x 45 inch (Replaces 196822C1) (20x6, 24x6, 28x6, 16x8, 20x7 and 24x7)

4шт.

7

9402787

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

CONNECTOR - 3/4-16 inch flared

4шт.

8

819992C1

HOSE

ASSEMBLY - 3/8 x 128 inch

4шт.

9

819854C1

BAR

- hose support

4шт.

10

811627C1

BOLT

U-BOLT - hose support

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

8шт.

11

379045R1

CLAMP

- hose

4шт.

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120376

NUT,5/16"-18, G5

4шт.

12

618631R1

SPACER

- hose clamp

4шт.

13

371291R97

CYLINDER

ASSEMBLY - lift (Replaced by 145353C91) (See Note)

2шт.

363137R94

PACKAGE

KIT - service, O-ring and seal

1шт.

13

145353C91

HYDRAULIC CYLINDER

CYLINDER ASSEMBLY - lift (See Note)

2шт.

79975C1

SEAL KIT

KIT - cylinder repair, O-ring and seal

1шт.

224311C1

KIT

- valve and transfer tube (replaces 1272597C91)

1шт.

61571C1

PIN

- headed, 1 x 3-1/4 inch

4шт.

520175R1

CLIP

PIN - hair

4шт.

1252129C1

ADAPTER,7/8" - 14 ORB x 3/4" - 16 ORB

ADAPTER - 3/4-16 male x 7/8-14 inch female O-ring boss

4шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 ID x 3/32 inch

4шт.

14

844025C92

CYLINDER

ASSEMBLY - hydraulic (See Note)

2шт.

844042C91

PACKAGE

KIT - cylinder repair, O-ring and seal

1шт.

14

1272402C91

CYLINDER,Double Acting, 31.7mm Rod, 203.2mm Stroke

ASSEMBLY - hydraulic with O-ring ports (See Note)

2шт.

79975C1

SEAL KIT

KIT - cylinder repair, O-ring and seal

1шт.

844098C91

COLLAR

- stroke control

2шт.

Ref #14 - 844098C91 is for 1 1/8" rod.

1шт.

15

651793R2

SUPPORT

ROD - hose support (1 per machine)

1шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

464623R1

WASHER

- flat, 21/32 x 1-1/2 x 3/32 inch

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

1шт.

16

REF

INSTRUCTION

SUPPORT - hydraulic hose (See Page 9-27)

1шт.

17

481352R1

HYD CONNECTOR,3/4"-16, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - short reducer, 1/2 tube 3/4-16 x 5/8 tube 7/8-1 (Use with 371291R96 cylinder)

4шт.

17

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - short swivel, 1/2 inch 3/4-16 thread (Use with 145353C91 cylinder)

4шт.

18

841044C1

HYDRAULIC HOSE

HOSE ASSEMBLY - 3/8 x 103 inch (Replaces 819970C1)

2шт.

19

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 inch OD tube (Use with 371291R96 cylinder)

4шт.

19

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 ID x 3/32 inch (Use with 145353C91 cylinder)

4шт.

20

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 inch OD tube (Use with 844025C92 cylinder)

4шт.
