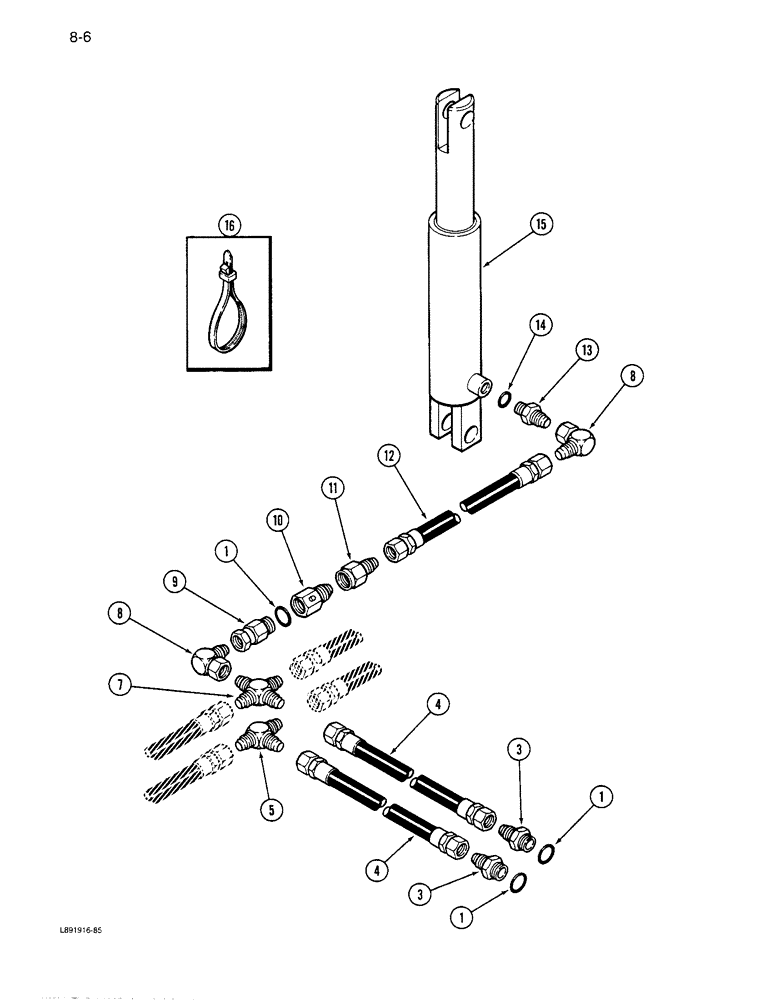

Запчасти Case IH 6300 (8-06) - MARKER HYDRAULICS, HYDRAULIC SELECTOR, LEFT MARKER ONLY (08) - HYDRAULICS

1

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

3шт.

3

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

4

819992C1

HOSE

ASSEMBLY - hydraulic, 3/8 x 128 inch

2шт.

5

9402982

TEE,3/4"-16, 37 Degree

- 3/4-16 inch flared

1шт.

7

9403177

4 WAY CONNECTION,3/4"-16, 37 Degree

CROSS - 3/4-16 flared

1шт.

8

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree swivel, 3/4-16 inch flared

2шт.

9

1263944C1

ADAPTER,7/8" - 14 ORB x 3/4" - 16 JIC

ADAPTER - straight, special

1шт.

10

1279860C91

RESTRICTOR

VALVE ASSEMBLY - restrictor

1шт.

11

1284308C1

REDUCER

- tube

1шт.

12

1279597C1

HOSE

- hydraulic, 3/8 x 210 inch

1шт.

13

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ADAPTER - short, 3/4 thread x 9/16 inch thread

1шт.

15

REF

INSTRUCTION

CYLINDER - marker lift (See Page 8-35 or 8-37)

1шт.

16

813579C1

CABLE TIE

STRAP - tie

4шт.

14

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
