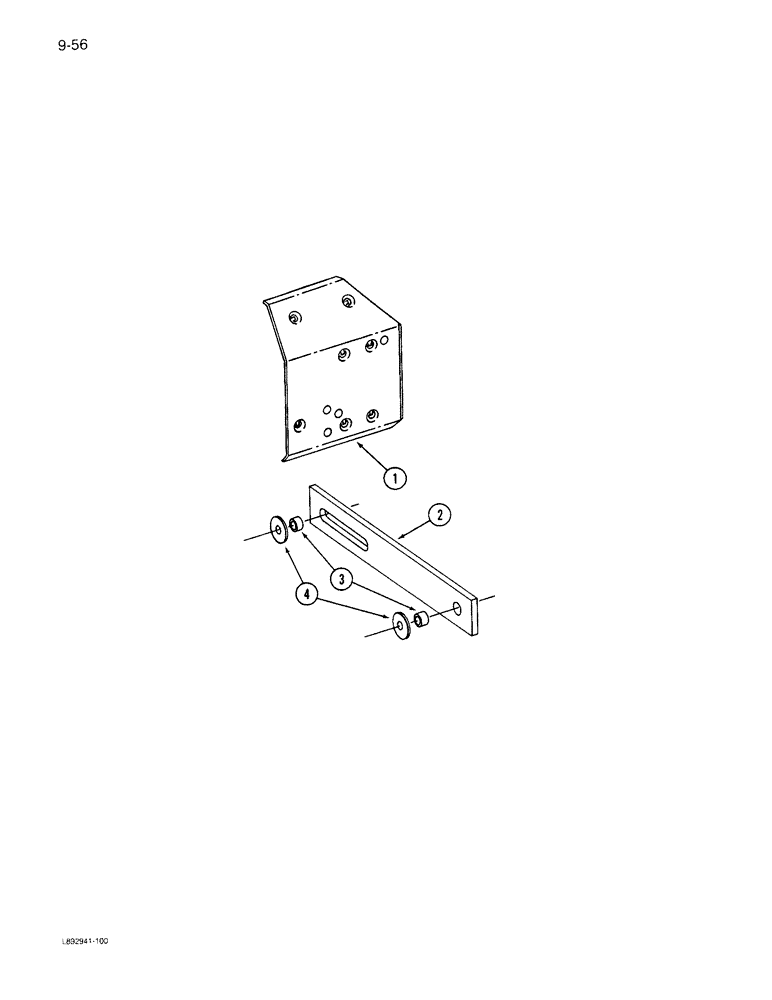

Запчасти Case IH 6300 (9-056) - HITCH BUMPER PLATE AND STABILIZER, DRILLS WITH MULTIPLE HITCHES (09) - CHASSIS/ATTACHMENTS

1

1268392C1

PLATE

- bumper left

1шт.

1

1268393C1

PLATE

- bumper right

1шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

1шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 NC x 1 inch

1шт.

492-11038

LOCK WASHER,3/8"

1шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

2

816374C1

BAR

STABILIZER - hitch

1шт.

3

1277514C1

BUSHING

SPACER - stabilizer bar

1шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

- hex, 5/8 NC x 4-1/2 inch

1шт.

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

1шт.

4

597176R1

WASHER

- stabilizer bar

1шт.
