(9-072) - CASTER WHEEL AND AXLE ENDWISE TRANSPORT, FOURTH DRILL

Запчасти Case IH 6300 (9-072) - CASTER WHEEL AND AXLE ENDWISE TRANSPORT, FOURTH DRILL (09) - CHASSIS/ATTACHMENTS

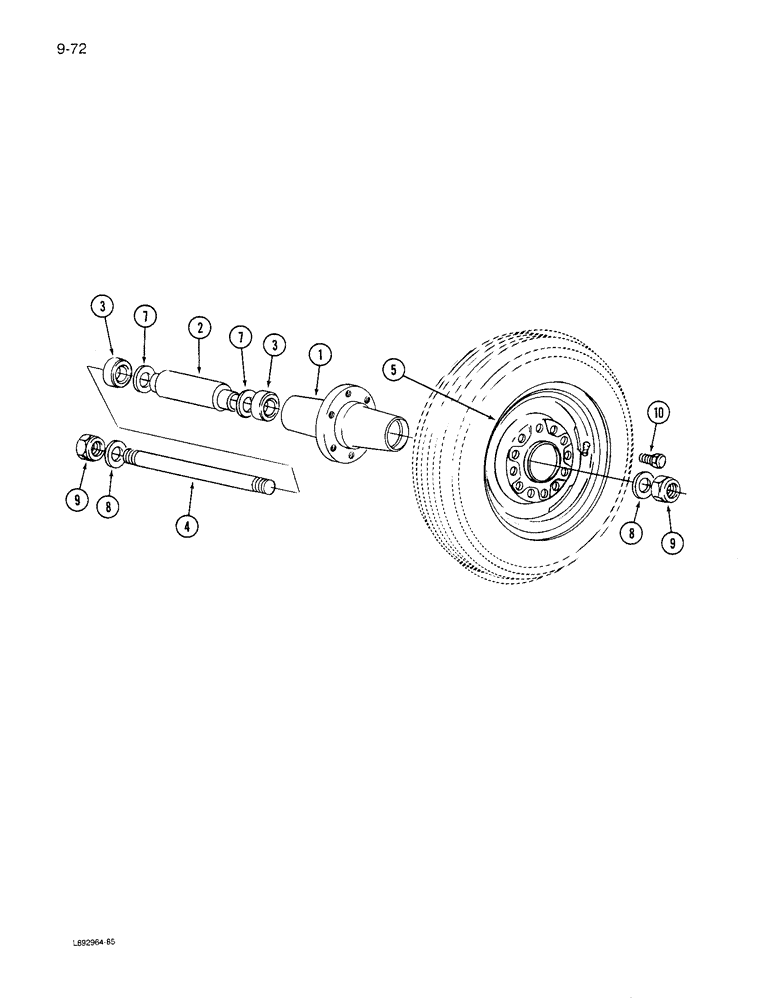

Схема запчастей Case IH 6300 - (9-072) - CASTER WHEEL AND AXLE ENDWISE TRANSPORT, FOURTH DRILL (09) - CHASSIS/ATTACHMENTS
3
3
9
10
5
8
9
4
1
8
7
7
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

541757R1

HUB

- caster wheel

1шт.

2

541758R1

TUBE

SLEEVE - wheel hub

1шт.

3

1973497C1

BALL BEARING,30mm ID x 62mm OD x 24mm W

BEARING - wheel hub

2шт.

4

541759R2

ROD

- axle

1шт.

5

481344R91

WHEEL

- 14x8 KB

1шт.

810768C1

VALVE

- tubeless tire steel

1шт.

7

495-81073

WASHER,1-1/32" x 1-3/4" x .060" Thk

- flat, 1-5/16 x 1-3/4 x 35/64 inch

2шт.

8

492-11100

LOCK WASHER,1"

1"

2шт.

9

425-1016

NUT,1"-8, G5

- hex, 1 inch NC

2шт.

10

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

- hex conical, 1/2 NF x 1-1/2 inch

6шт.
