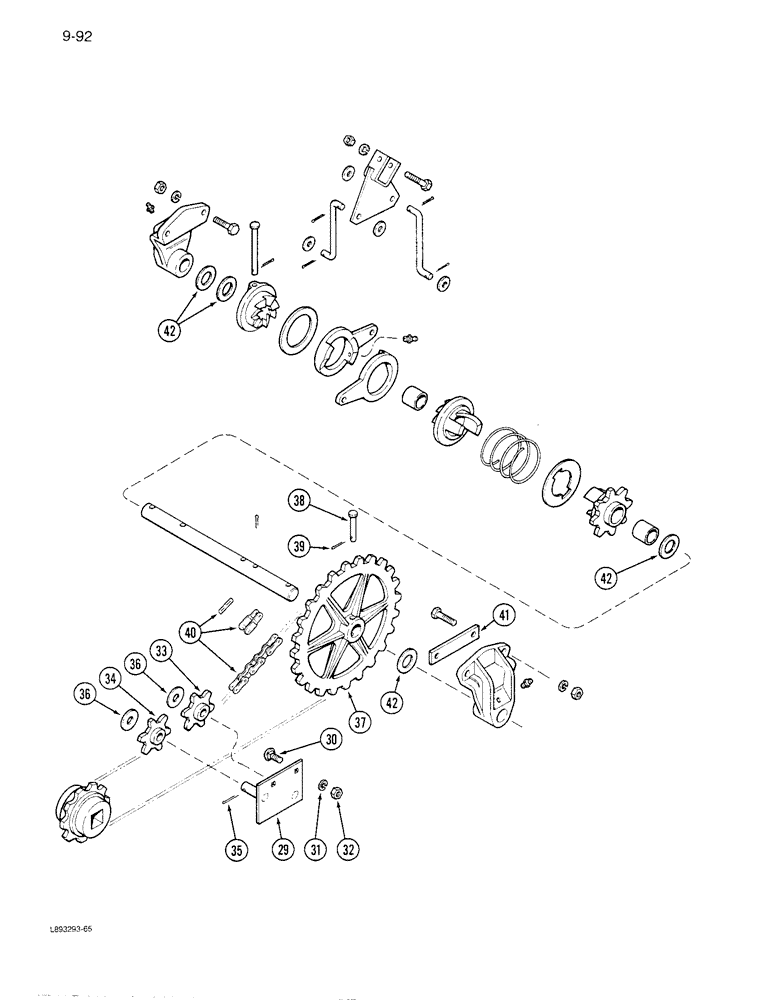

Запчасти Case IH 6300 (9-092) - MAIN DRIVE (09) - CHASSIS/ATTACHMENTS

29

818407C1

BRACKET

- main drive chain idler (20x6, 24x6, 28x6, 20x7, 24x7)

1шт.

29

818407C1

BRACKET

- main drive chain idler (16x6, for slow speed grain drive)

1шт.

30

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 NC x 1 inch

2шт.

31

492-11038

LOCK WASHER,3/8"

2шт.

32

425-106

NUT,3/8"-16, Cl 5

2шт.

33

819457C1

SPROCKET

- main drive idler 6 tooth (20x6, 24x6. 28x6, 20x7, 24x7)

1шт.

34

819457C1

SPROCKET

- slow speed grain drive 6 tooth (16x6)

1шт.

35

432-1216

COTTER PIN,3/16" x 1"

2шт.

36

495-81026

WASHER,21/32" x 1 1/2" x .060"

- flat, 21/32 x 1-1/2 x 3/64 inch

2шт.

37

816019C1

DRIVE SPROCKET

SPROCKET - main driven 25 tooth

1шт.

38

28782R1

HEADED PIN,3/8" x 1 7/8"

PIN - headed, 3/8 x 1-7/8 inch

2шт.

39

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

40

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - main drive (See Note)

1шт.

41

816022C1

BAR

- bearing spacer (16x6)

1шт.

42

495-81073

WASHER,1-1/32" x 1-3/4" x .060" Thk

- flat, 1-5/16 x 1-3/4 x 35/64 inch

1шт.
