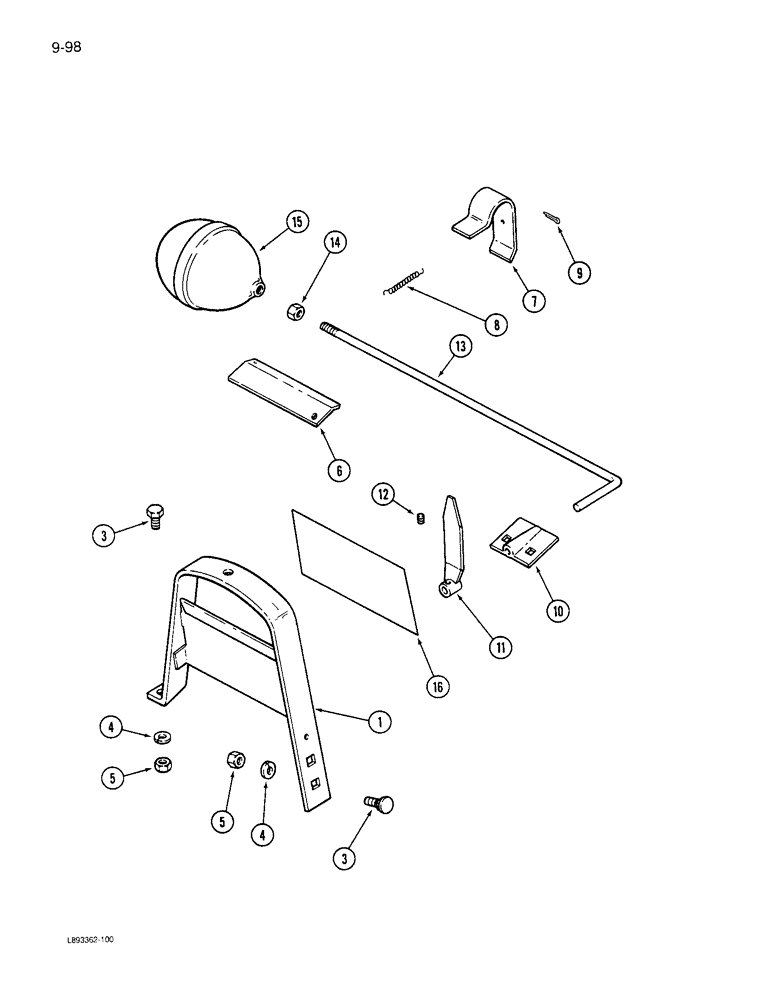

Запчасти Case IH 6300 (9-098) - FERTILIZER LEVEL INDICATOR (09) - CHASSIS/ATTACHMENTS

1

816846C1

PLATE

INDICATOR - level

1шт.

3

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

3шт.

4

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

5

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

3шт.

6

816802C1

SUPPORT

- level indicator

1шт.

7

816801C1

CLAMP

- level indicator

1шт.

8

N62683

SPRING

- indicator clamp

1шт.

9

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

10

815793C1

ARM

SWIVEL - float arm

1шт.

11

815795C1

INDICATOR

POINTER - fertilizer level

1шт.

12

483-1104

SET SCREW,Hex Soc, #10-24 x 1/4"

SCREW - hex socket head, No. 10 NC, 24 x 1/4 inch

1шт.

13

816476C1

ROD

- float

1шт.

14

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

15

815799C1

BALL

- float level

1шт.

16

REF

INSTRUCTION

DECAL - fertilizer lever (See Page 9-165)

1шт.
