(35.900.07) - HYDRAULIC, CYLINDER 4" X 24"

Запчасти Case IH 700 (35.900.07) - HYDRAULIC, CYLINDER 4" X 24" (35) - HYDRAULIC SYSTEMS

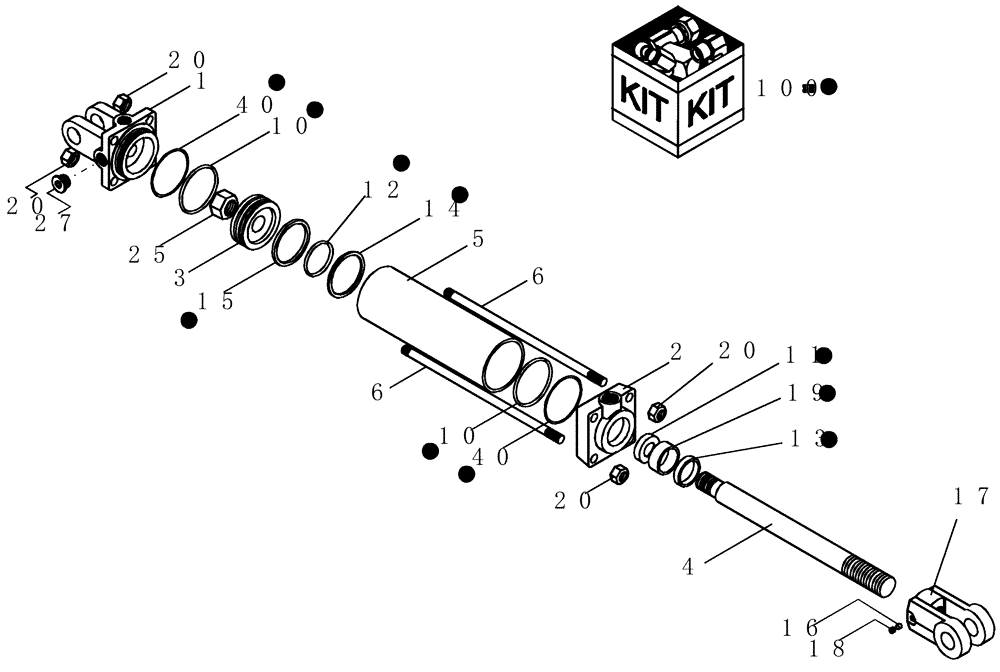

Схема запчастей Case IH 700 - (35.900.07) - HYDRAULIC, CYLINDER 4" X 24" (35) - HYDRAULIC SYSTEMS
20
12
6
20
18
1
5
40
3
27
100
15
19
2
6
13
14
17
25
20
10
20
10
16
40
4
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

87420235

HYDRAULIC CYLINDER,Double Acting, 44.45mm Rod, 609.6mm Stroke

4" x 24" 3000 psi no pins

1шт.

1

87409432

HEAD

cylinder base 4" bore, 2, 3/4"-16 orb

1шт.

2

87409410

HEAD

cylinder front 4" bore x 1 3/4" rod

1шт.

3

87409466

PISTON

cylinder, 4" bore Monarch #494730

1шт.

4

8935

SHAFT

cylinder, 1 3/4" rod 1 1/2" -12 thread

1шт.

5

8936

TUBE

cylinder, 4" x 24"

1шт.

6

87409493

BOLT

cylinder tie rod 4" x 24"

4шт.

16

1029632

PLUG

nylon 5/16" od x 1/4" pln solid

1шт.

17

87409391

CLEVIS,1 -1/2" - 12

cylinder, 1" pin, 1 1/2"-12, Monarch #493168

1шт.

18

87314803

SET SCREW,Hex Skt, 3/8" - 16 x 1/2"

1шт.

20

86643107

NUT,5/8" - 18, Gr 8

5/8"-18, G8

8шт.

25

232-46318

LOCK NUT,1 1/8"-12, GC

1шт.

27

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

100

87451652

SEAL KIT

hydraulic cylinder

1шт.
