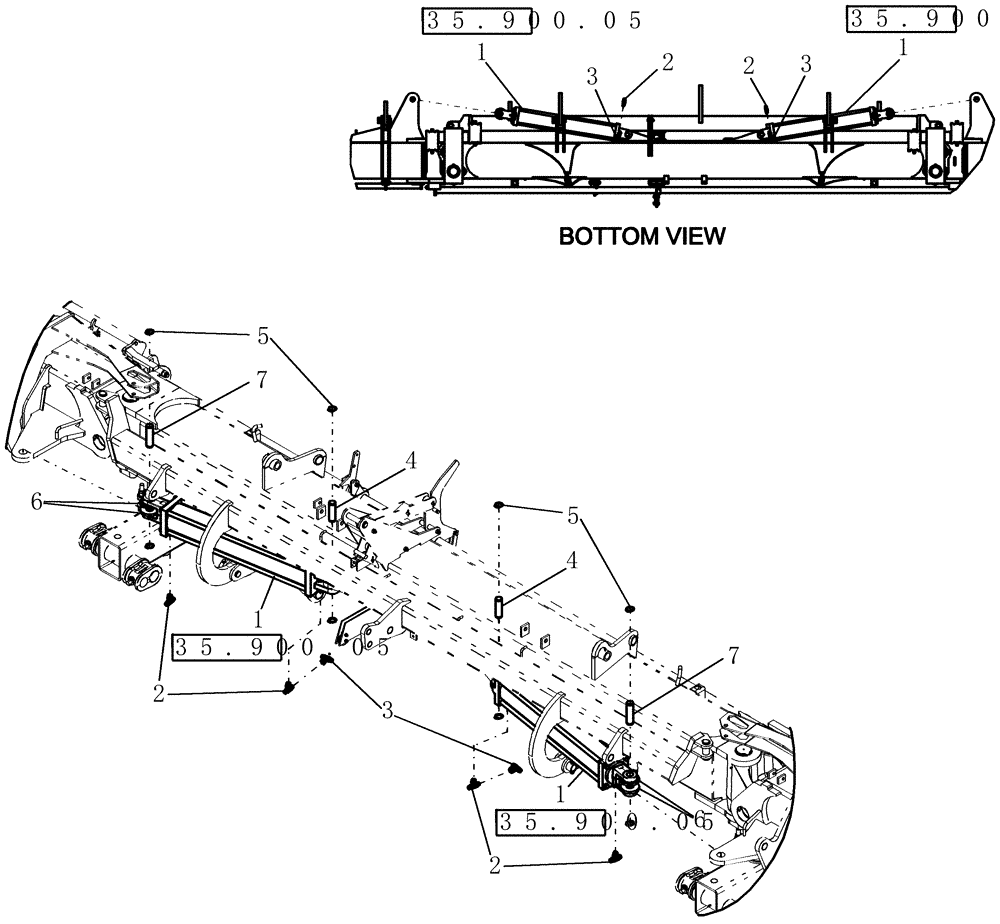

Запчасти Case IH 700 (35.900.12) - CYLINDER, SWING (35) - HYDRAULIC SYSTEMS

1

87504468

HYDRAULIC CYLINDER,Double Acting, 50.8mm Rod, 762mm Stroke

5" x 30" mon 3000 psi without pins

2шт.

Refer to 35.900.05

1шт.

2

86513024

TEE,3/4" - 16 ORB x 3/4" - 16 JIC x 3/4" - 16 JIC

4шт.

3

86513015

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

2шт.

4

87504359

PIN

cylinder 31.75 mm x 93 mm ul hardened (1.25" X 3.625")

2шт.

5

86625148

SNAP RING,#125, Ext

8шт.

6

87504120

WEAR PAD

air cart hitch

2шт.

7

87505139

PIN

cylinder 31.75 mm x 111 mm ul hardened (1.25" X 4.313")

2шт.
