(39.110.03) - JACK, ASSEMBLY

Запчасти Case IH 700 (39.110.03) - JACK, ASSEMBLY (39) - FRAMES AND BALLASTING

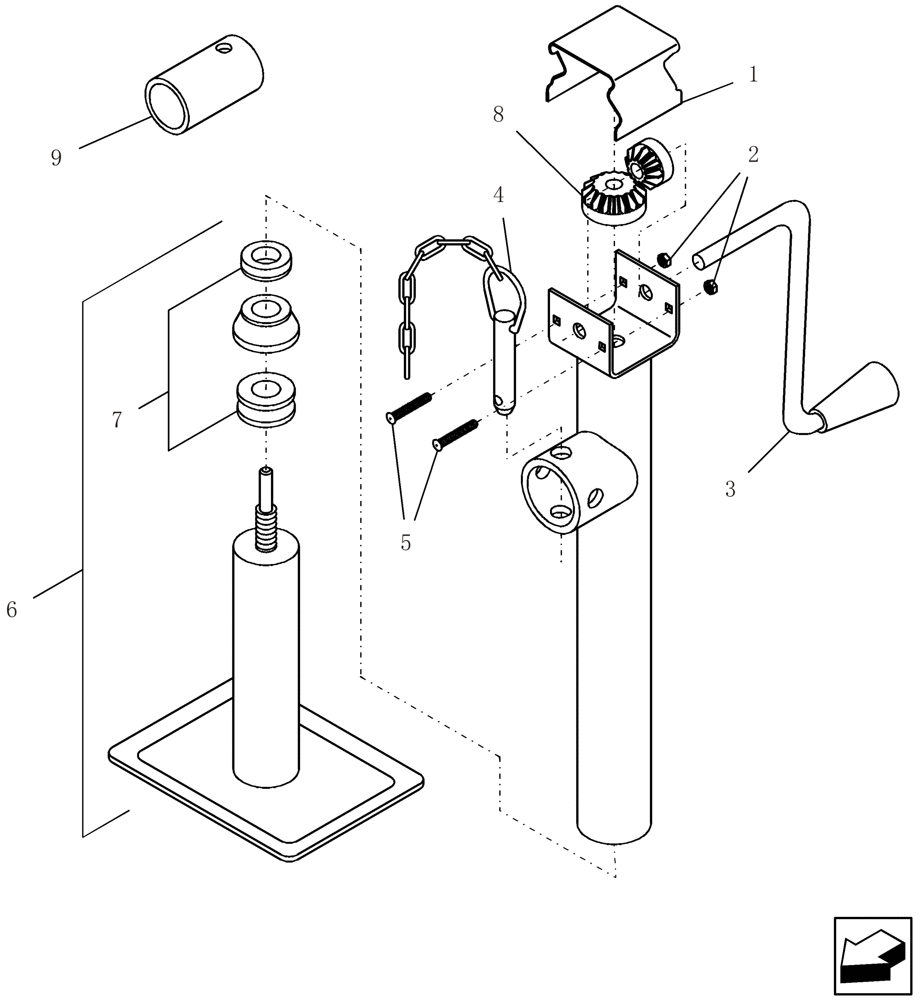

Схема запчастей Case IH 700 - (39.110.03) - JACK, ASSEMBLY (39) - FRAMES AND BALLASTING
6
7
4
9
2
5
8
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

7972

JACK

3000 lb x 15" long

1шт.

1

6621

COVER

jack gear box

1шт.

2

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

3

87577821

JACK

crank side wind

1шт.

4

425037A1

SPECIAL PIN

assembly c/w chain

1шт.

5

NS

NOT SERVICED

2шт.

6

6622

JACK

inner assembly

1шт.

Includes jack inner bearing, washer, jack brass nut, jack screw and inner ram

1шт.

7

6618

THRUST BEARING

jack thrust bearing

1шт.

8

425261A1

GEAR SET

jack (sold in pairs) crown #500-106

1шт.

9

3369

TUBE,2.563" ID, 3" OD, 2.5" Length

mount jack - 3" od x 2 1/2" long

1шт.
