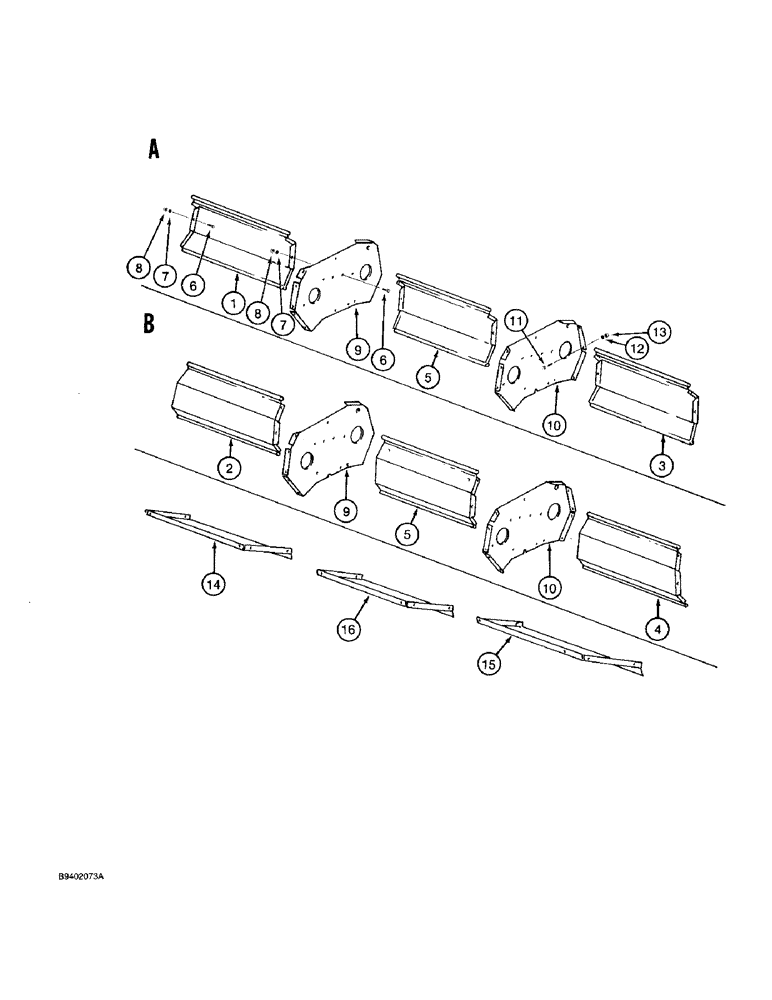

Запчасти Case IH 7100 (9-014) - GRAIN AND FERTILIZER HOPPER, PARTITION PANELS AND BAFFLES (09) - CHASSIS/ATTACHMENTS

1

815859C1

PANEL

- fertilizer partition, left-hand, 10 x 12 and 12 x 10 inch drill (See Note A)

1шт.

2

815860C1

PANEL

- fertilizer partition, left-hand, 10 x 12 and 12 x 10 inch drill (See Note B)

1шт.

1

815871C1

PANEL

- fertilizer partition, left-hand, 10 x 14, 14 x 10, 8 x 18 and 18 x 8 inch drill (See Note A)

1шт.

2

815872C1

PANEL

- fertilizer partition, left-hand, 10 x 14, 14 x 10, 8 x 18 and 18 x 8 inch drill (See Note B)

1шт.

1

816932C1

PANEL

- fertilizer partition, left-hand, 14 x 12 and 16 x 10 inch drill (See Note A)

1шт.

2

816933C1

PANEL

- fertilizer partition, left-hand, 14 x 12 and 16 x 10 inch drill (See Note B)

1шт.

3

815860C1

PANEL

- fertilizer partition, right-hand, 10 x 12 and 12 x 10 inch drill (See Note A)

1шт.

4

815859C1

PANEL

- fertilizer partition, right-hand, 10 x 12 and 12 x 10 inch drill (See Note B)

1шт.

3

815872C1

PANEL

- fertilizer partition, right-hand, 10 x 14, 14 x 10, 8 x 18 and 18 x 8 inch drill (See Note A)

1шт.

4

815871C1

PANEL

- fertilizer partition, right-hand, 10 x 14, 14 x 10, 8 x 18 and 18 x 8 inch drill (See Note B)

1шт.

3

816933C1

PANEL

- fertilizer partition, right-hand, 14 x 12 and 16 x 10 inch drill (See Note A)

1шт.

4

816932C1

PANEL

- fertilizer partition, right-hand, 14 x 12 and 16 x 10 inch drill (See Note B)

1шт.

5

815881C1

PANEL

- fertilizer partition, center

1шт.

6

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

16шт.

7

492-11038

LOCK WASHER,3/8"

16шт.

8

425-106

NUT,3/8"-16, Cl 5

16шт.

9

816954C3

PLATE

BAFFLE - hopper, left-hand

1шт.

10

816955C3

PLATE

BAFFLE - hopper, right-hand

1шт.

11

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

20шт.

12

492-11038

LOCK WASHER,3/8"

20шт.

13

425-106

NUT,3/8"-16, Cl 5

20шт.

14

815818C2

PANEL

- grain partition, left-hand, 10 x 12 and 12 x 10 inch drill

1шт.

14

815826C1

PANEL

- grain partition, left-hand, 10 x 14, 14 x 10, 8 x 18 and 18 x 8 inch drill

1шт.

14

816930C1

PANEL

- grain partition, left-hand, 14 x 12 and 16 x 10 inch drill

1шт.

15

815819C2

PANEL

- grain partition, right-hand, 10 x 12 and 12 x 10 inch drill

1шт.

15

816931C1

PANEL

- grain partition, right-hand, 14 x 12 and 16 x 10 inch drill

1шт.

16

815832C1

PANEL

- grain partition, center

1шт.

17

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(Not shown) Hex, 3/8"-16 x 3/4", G5, Full Thd

10шт.

17

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(Not shown) Hex, 3/8"-16 x 3/4", G5, Full Thd

10шт.

18

492-11038

LOCK WASHER,3/8"

not shown 3/8"

10шт.

19

425-106

NUT,3/8"-16, Cl 5

Not shown 3/8"-16, G5

10шт.

20

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch (Used as hopper hole filler)(Not shown)

1шт.

21

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Used as hopper hole filler) (Not shown) 1/4"

1шт.

22

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC (Used as hopper hole filler)(Not shown)

1шт.
