(9-068) - REAR CORNER BUMPER BRACKET, MACHINES BUILT 1985 AND AFTER, WITH HITCH P.I.N. 501 AND AFTER

Запчасти Case IH 7100 (9-068) - REAR CORNER BUMPER BRACKET, MACHINES BUILT 1985 AND AFTER, WITH HITCH P.I.N. 501 AND AFTER (09) - CHASSIS/ATTACHMENTS

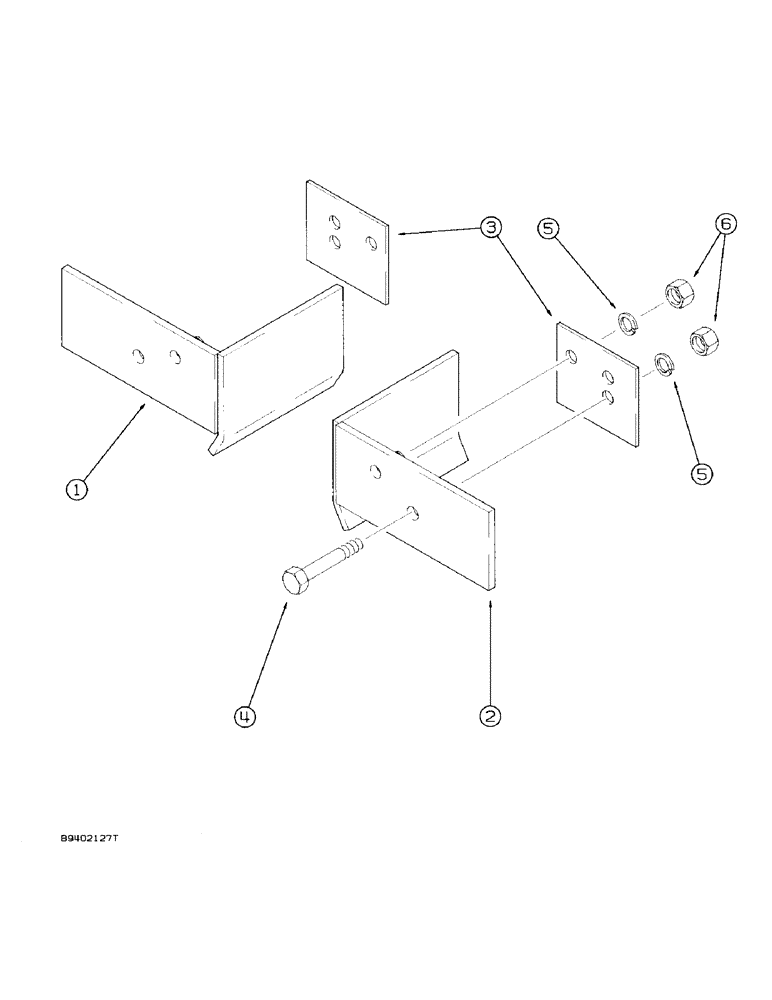

Схема запчастей Case IH 7100 - (9-068) - REAR CORNER BUMPER BRACKET, MACHINES BUILT 1985 AND AFTER, WITH HITCH P.I.N. 501 AND AFTER (09) - CHASSIS/ATTACHMENTS
6
5
3
1
2
4
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1279000C1

BRACKET

- rear corner bumper, left-hand

1шт.

2

1279001C1

BRACKET

- rear corner bumper, right-hand

1шт.

3

819753C2

BAR

PLATE - bracket spacer

4шт.

4

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

2шт.

5

492-11075

LOCK WASHER,3/4"

3/4"

4шт.

6

425-1012

NUT,3/4"-10, G5

4шт.
