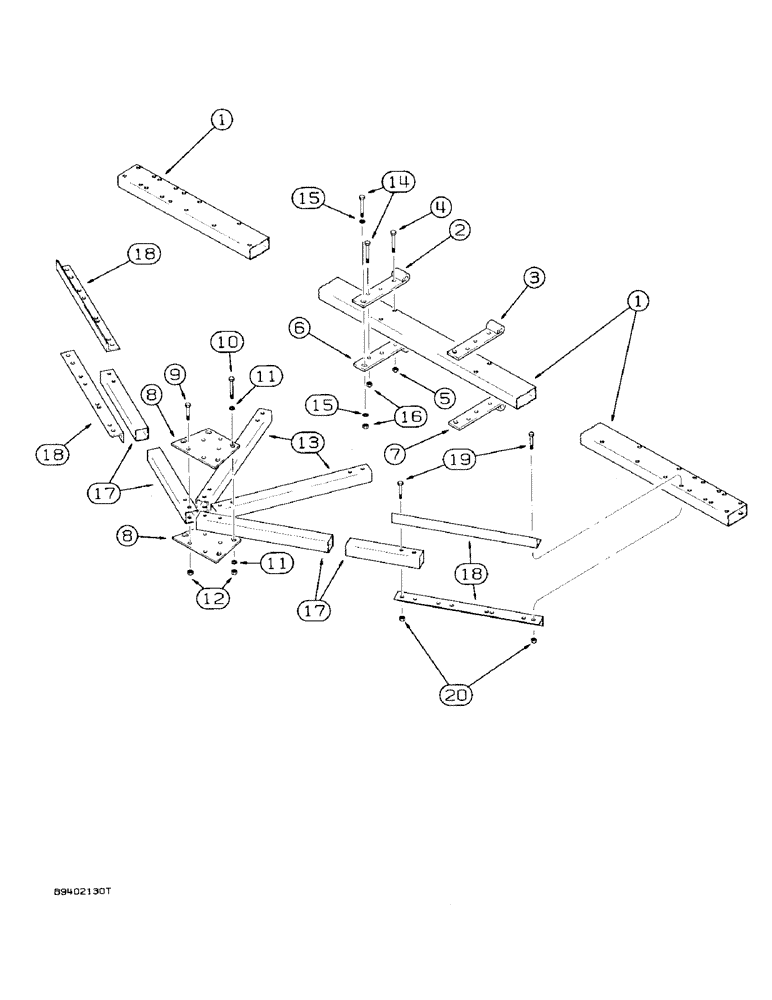

Запчасти Case IH 7100 (9-076) - CENTER HITCH & STABILIZER, TWO DRILL, MACHINES BUILT 1985 & AFTER, WITH HITCH P.I.N. 501 & AFTER (09) - CHASSIS/ATTACHMENTS

1

819007C2

TUBE,180.4" Length

- center hitch

1шт.

2

819012C1

SUPPORT

- hitch hinge upper left

1шт.

3

819011C1

SUPPORT

- hitch hinge upper right

1шт.

4

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

4шт.

5

425-1010

NUT,5/8"-11, G5

4шт.

6

819011C1

SUPPORT

- hitch hinge lower left

1шт.

7

819012C1

SUPPORT

- hitch hinge lower right

1шт.

8

819009C1

PLATE

- hitch stabilizer rear

2шт.

9

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

4шт.

10

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

4шт.

11

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 7/64 inch

8шт.

12

425-1010

NUT,5/8"-11, G5

8шт.

13

819016C1

TUBE,30.46" Length

- hitch stabilizer center

2шт.

14

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

4шт.

15

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 7/64 inch

4шт.

16

425-1010

NUT,5/8"-11, G5

4шт.

17

819017C1

TUBE,60.2" Length

- hitch stabilizer outer

2шт.

18

819008C1

ANGLE

BAR - outer tube support

4шт.

19

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

8шт.

20

425-1010

NUT,5/8"-11, G5

8шт.
