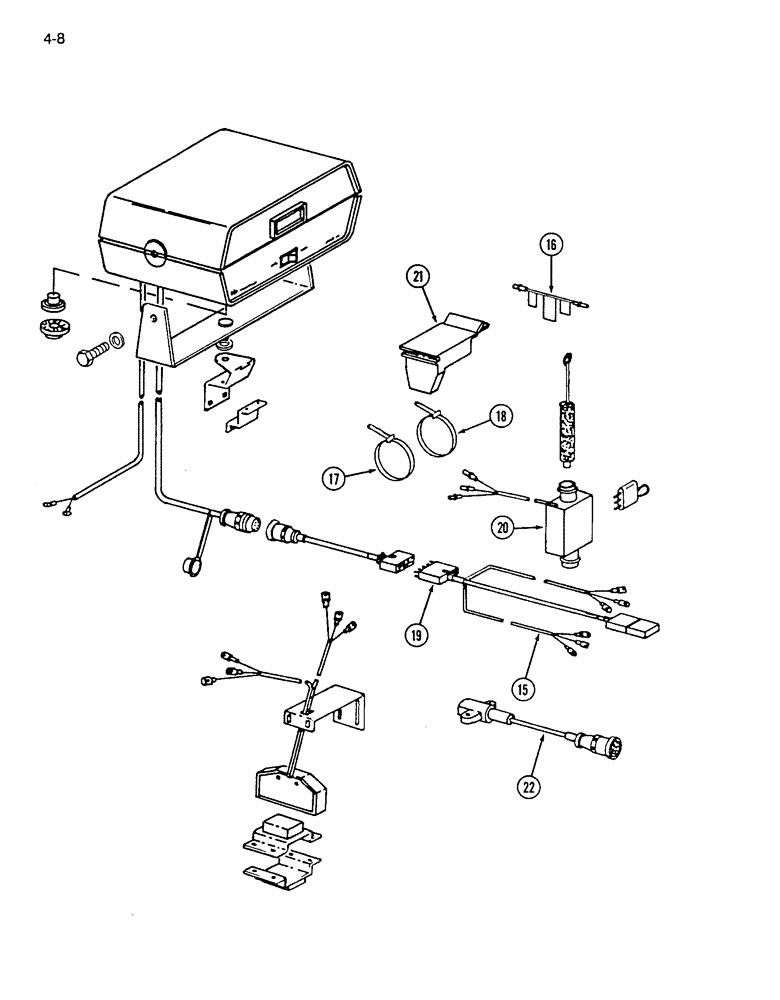

Запчасти Case IH 7200 (4-08) - SEED FLOW II MONITOR (04) - ELECTRICAL SYSTEMS

15

819974C91

HARNESS

- monitor, 12 contact plug (First drill wiring, continued from previous page)

1шт.

16

58557C1

ELECTRICAL WIRE

WIRE - shortening

1шт.

17

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, nylon, 7 inch

1шт.

18

306132C1

CABLE TIE,14.5" L

STRAP - tie, nylon, 14 inch

1шт.

19

128813C1

CONNECTOR,ELECTRIC

CONNECTOR - male connection plug

1шт.

15

819975C91

HARNESS

- monitor (Second and third drill wiring)

1шт.

15

819977C91

HARNESS

- monitor (Fourth drill wiring)

1шт.

20

819971C92

SENSOR

- seed

1шт.

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, nylon, 7 inch

2шт.

306132C1

CABLE TIE,14.5" L

STRAP - tie, nylon, 14 inch

1шт.

21

841109C1

SHIELD

- lamp

1шт.

22

819973C1

CABLE

- adaptor (Used to convert cyclometer II consol to grain drill seed flow system, no longer available)

1шт.
