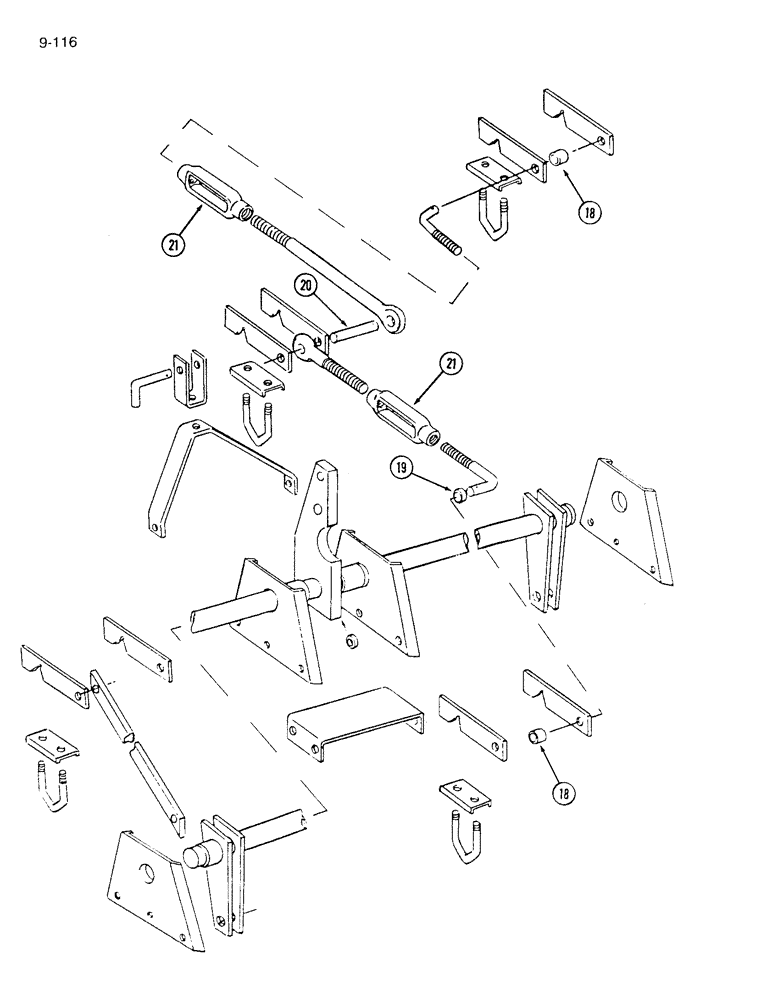

Запчасти Case IH 7200 (9-116) - HYDRAULIC LIFT (09) - CHASSIS/ATTACHMENTS

18

623907R1

SPACER,1" Pipe x 5/8"

- connecting rod (Continued from previous page)

4шт.

19

M73125

SPACER,1" Pipe x 3/8"

- connecting rod (Machines built prior to June 1980)

2шт.

668752R1

WASHER

- flat, 29/32 x 1-1/4 x 1/6 inch

8шт.

20

817485C1

PIN

- connecting eye-bolt

2шт.

432-1216

COTTER PIN,3/16" x 1"

1шт.

21753R1

WASHER

- flat, 25/32 x 1-1/2 x 1/16 inch

4шт.

21

595992R1

TURNBUCKLE

- connecting eye-bolt

4шт.
