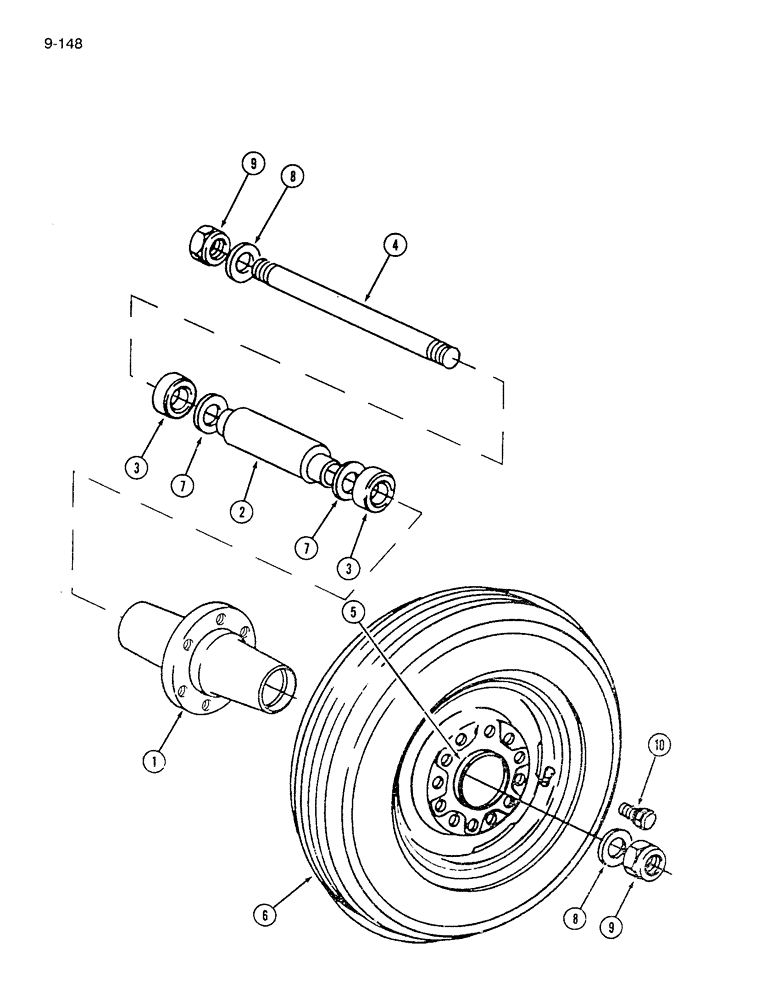

Запчасти Case IH 7200 (9-148) - CASTER WHEEL AXLE - ENDWISE TRANSPORT, FOURTH OR TRAILING (09) - CHASSIS/ATTACHMENTS

1

541757R1

HUB

- caster wheel

1шт.

2

541758R1

TUBE

- wheel hub

1шт.

3

1973497C1

BALL BEARING,30mm ID x 62mm OD x 24mm W

BEARING - wheel hub (Replaces 963078R91)

2шт.

4

541759R2

ROD

- axle

1шт.

5

481344R91

WHEEL

- steel, 14 x 8 KB

1шт.

6

REF

INSTRUCTION

TIRE - 9.5L-14, 6 ply, tubeless

1шт.

810768C1

VALVE

- tubeless tire, steel

1шт.

7

495-81073

WASHER,1-1/32" x 1-3/4" x .060" Thk

- flat, 1-1/32 x 1-3/4 x 1/16 inch (Replaces 609836R1)

2шт.

8

492-11100

LOCK WASHER,1"

1"

2шт.

9

425-1016

NUT,1"-8, G5

- hex, 1 inch NC

2шт.

10

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

- hex conical, 1/2 NF x 1-5/32 inch

6шт.
