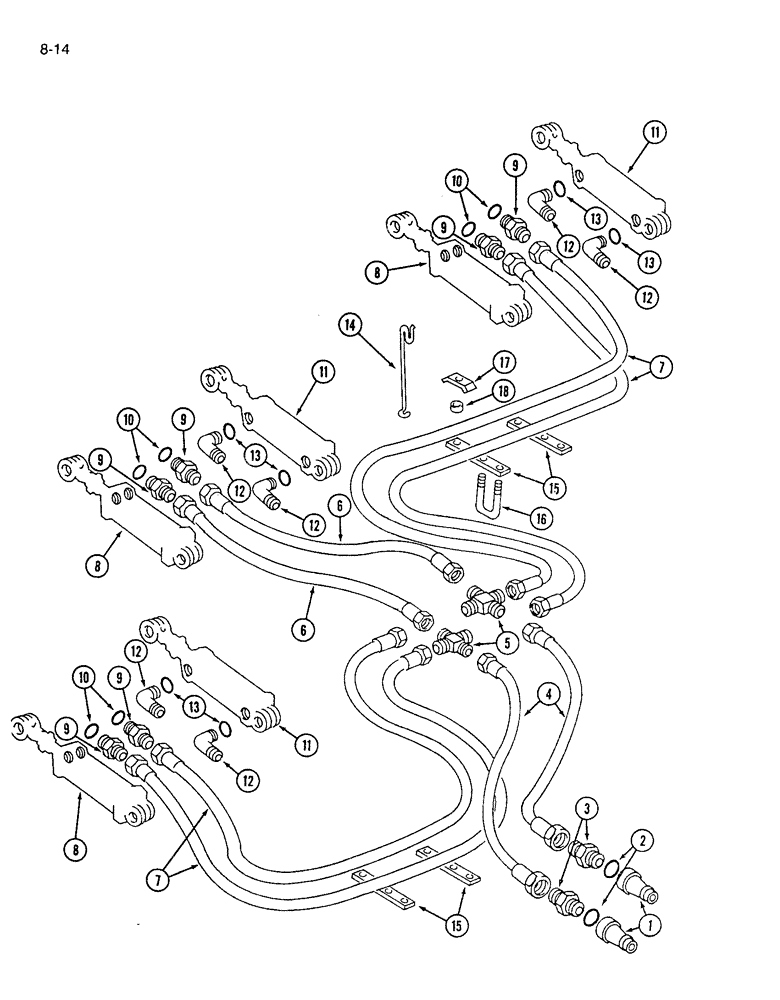

Запчасти Case IH 7200 (8-14) - HYDRAULIC SYSTEM - LIFT, THREE DRILL COMBINATION - LATER (08) - HYDRAULICS

1

395149R1

QUICK MALE COUPLING

COUPLER - hose, male, 7/8-14 thread poppet type

2шт.

1

544787R91

COUPLING, BREAK AWAY

COUPLER - hose, male, 7/8-14 thread self sealing type

2шт.

1

1272399C2

QUICK MALE COUPLING

COUPLER - hose, male, 7/8-14 thread self sealing type (ISO standard)

2шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

3

587639R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss

2шт.

4

1284369C1

HYDRAULIC HOSE

HOSE - hydraulic, 3/8 x 130 inch

2шт.

5

9403176

4 WAY CONNECTION,9/16"-18, 37 Degree

CROSS - 3/8-18 inch flare

2шт.

6

813006C2

HYDRAULIC HOSE

HOSE - hydraulic, 3/8 x 85 inch

2шт.

7

139522C2

HOSE

- hydraulic, 3/8 x 255 inch

4шт.

8

REF

INSTRUCTION

CYLINDER ASSEMBLY - 2-1/2 x 8 inch, dual rear ports (See page 8-53)

3шт.

61571C2

HEADED PIN,25.4mm OD x 82.5mm L

PIN - headed, 1 x 3-1/4 inch

3шт.

810751C1

PIN

- headed, 1 x 3 inch

3шт.

1980543C1

HAIR PIN COTTER

PIN - cotter, quick attachable, 5/32 inch diameter

6шт.

9

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss

6шт.

10

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

6шт.

11

REF

INSTRUCTION

CYLINDER ASSEMBLY - 2-1/2 x 8 inch, front and rear ports (See page 8-59)

3шт.

61571C2

HEADED PIN,25.4mm OD x 82.5mm L

PIN - headed, 1 x 3-1/4 inch

3шт.

810751C1

PIN

- headed, 1 x 3 inch

3шт.

1980543C1

HAIR PIN COTTER

PIN - cotter, quick attachable, 5/32 inch diameter

6шт.

12

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring

6шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

6шт.

1546971C1

CHANNEL

STOP - cylinder assembly (See page 8-45)(replaces 1268367C2)

3шт.

For longer pin for new channel, use 21992R1.

1шт.

14

651793R2

SUPPORT

ROD - hose support

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

1шт.

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 7/64 inch

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

425-1010

NUT,5/8"-11, G5

1шт.

15

819854C1

BAR

- hose support

4шт.

16

811627C2

U-BOLT

- hose support

4шт.

425-1010

NUT,5/8"-11, G5

8шт.

17

379045R1

CLAMP

- hose

4шт.

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

18

618631R1

SPACER

- hose clamp

4шт.
