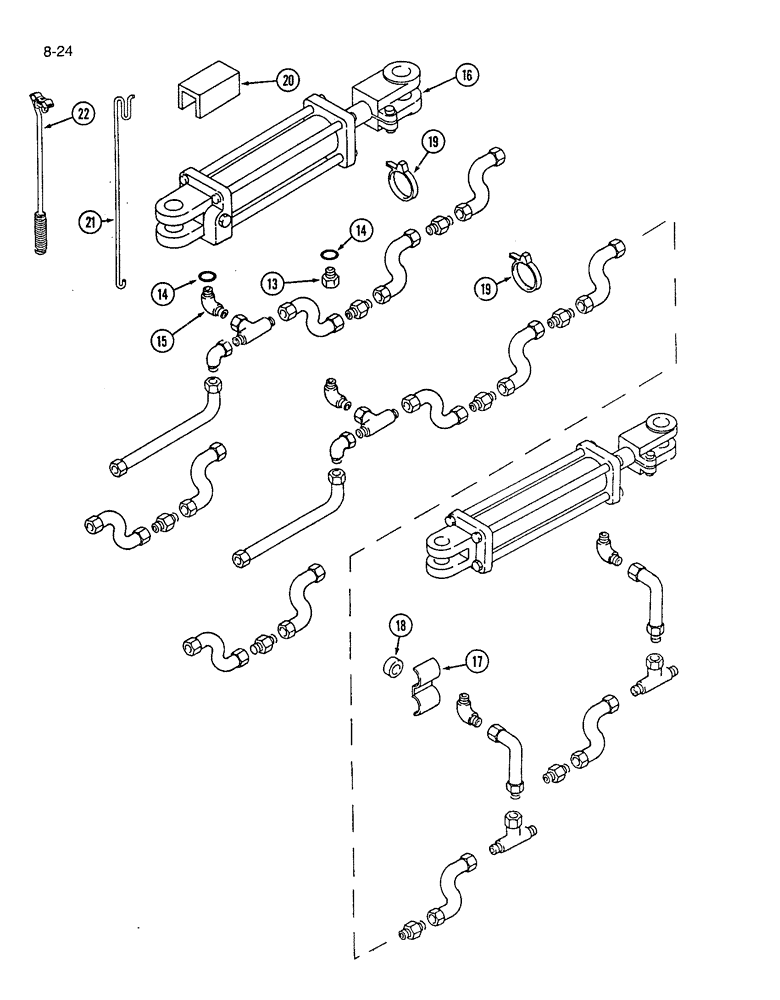

Запчасти Case IH 7200 (8-24) - HYDRAULIC SYSTEM - ENDWISE TRANSPORT, LEADING UNIT, MACHINES (08) - HYDRAULICS

13

561989R1

CONNECTOR, ELEC

ADAPTER - straight, 1/2 internal flare x 1/2 inch o-ring boss (Continued from previous page)

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

15

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj o-ring boss

1шт.

16

818146C92

CYLINDER

ASSEMBLY - Prince, 4-1/2 x 8 inch (See page 8-67)^

1шт.

17

379045R1

CLAMP

- hydraulic hose

1шт.

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

18

22055R1

SPACER,1/4" Pipe x .594"

- hose clamp

1шт.

19

813579C1

CABLE TIE

STRAP - tie, nylon

3шт.

20

843137C1

CHANNEL

- hydraulic lockout

1шт.

21992R1

HEADED PIN,5/16" x 2 3/4"

PIN - headed, 5/16 x 2-3/4 inch

1шт.

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

PIN - cotter, quick attachable

1шт.

21

651793R2

SUPPORT

ROD - hose support

1шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

21403R1

WASHER

- flat, 13/32 x 1 x 7/64 inch

1шт.

492-11038

LOCK WASHER,3/8"

1шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

22

REF

INSTRUCTION

SUPPORT - hydraulic hose (No longer available, see page 8-43)

1шт.
