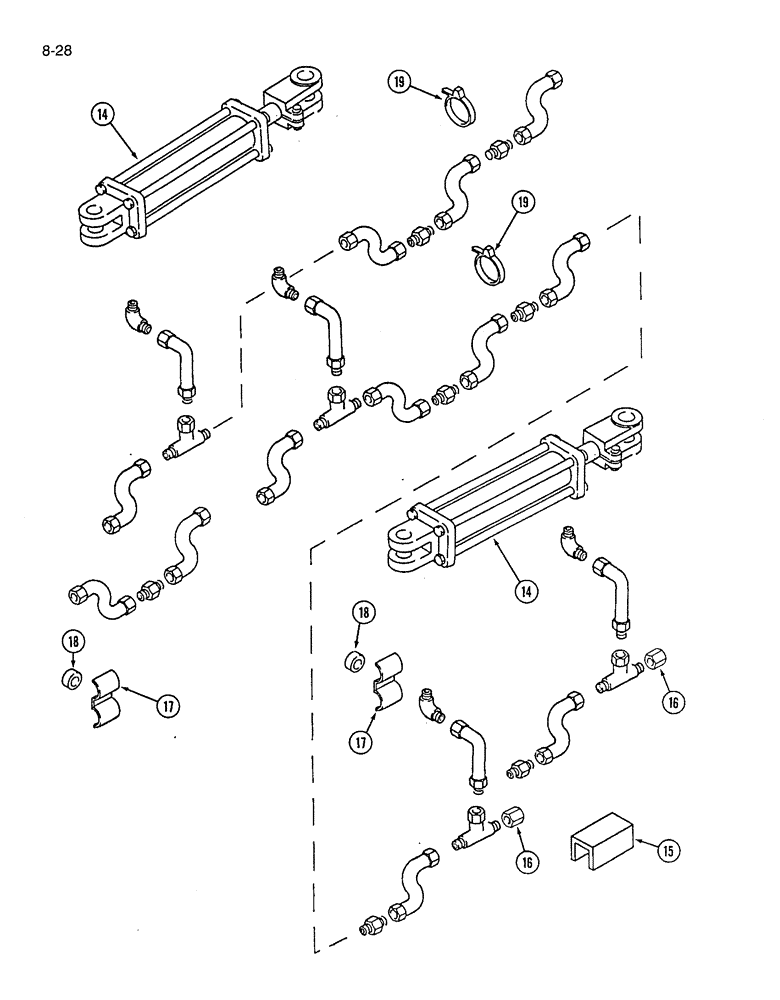

Запчасти Case IH 7200 (8-28) - HYDRAULIC SYSTEM - ENDWISE TRANSPORT, 2ND, 3RD, 4TH OR (08) - HYDRAULICS

14

REF

INSTRUCTION

CYLINDER ASSEMBLY - Ram, 2-1/2 x 8 inch, 3/4-16 inch front and rear ports (See page 8-63, continued from previous page)

1шт.

1260900C1

HYD CONNECTOR,1/2" - 14 x 3/4" - 16 NPT

ADAPTER - 1/2 PT female x 3/4-16 male

2шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

22064R1

PIN

- headed, 1 x 4-1/2 inch

1шт.

32-1624

COTTER PIN,1/4" x 1 1/2"

PIN, SPLIT (COTTER), 1/4" x 1 1/2"

1шт.

21162R1

WASHER

- flat, 1-1/32 x 2 x 3/64 inch

1шт.

15

843137C1

CHANNEL

- hydraulic lockout, last unit (Cut to 10-13/64 inch long when using Ram hydraulic cylinder with 1/2-14 inch ports)

1шт.

21992R1

HEADED PIN,5/16" x 2 3/4"

PIN - headed, 5/16 x 2-3/4 inch

1шт.

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

PIN - cotter, quick attachable

1шт.

16

9403372

CAP,37 Degree, 3/4"-16

- hex, 3/4-16 inch flare

2шт.

17

379045R1

CLAMP

- hydraulic hose

2шт.

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

18

22055R1

SPACER,1/4" Pipe x .594"

- hose clamp

2шт.

19

813579C1

CABLE TIE

STRAP - tie, nylon

3шт.
