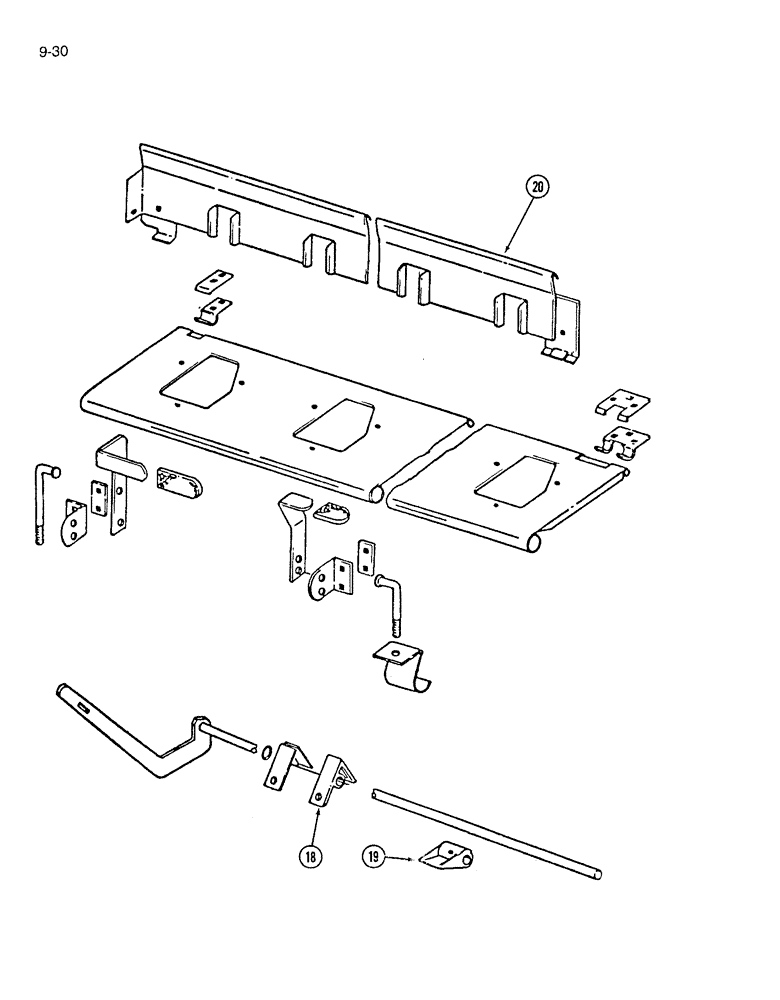

Запчасти Case IH 7200 (9-030) - FERTILIZER DROP BOTTOM (09) - CHASSIS/ATTACHMENTS

18

603455R1

LEVER GUIDE

BEARING - gate rod center (Continued from previous page)

1шт.

434-412

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

BOLT - round head square neck, 1/4 NC x 3/4 inch

1шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

19

816736C1

GATE ASSY

GATE - fertilizer feed

24шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch (Quantity of 1 per gate)

1шт.

252552C1

NUT

- weld, 1/4 inch NC (Quantity of 1 per bolt)

1шт.

20

816255C1

PANEL

ASSEMBLY - back, left

1шт.

20

816256C1

PANEL

ASSEMBLY - back, right

1шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

2шт.
