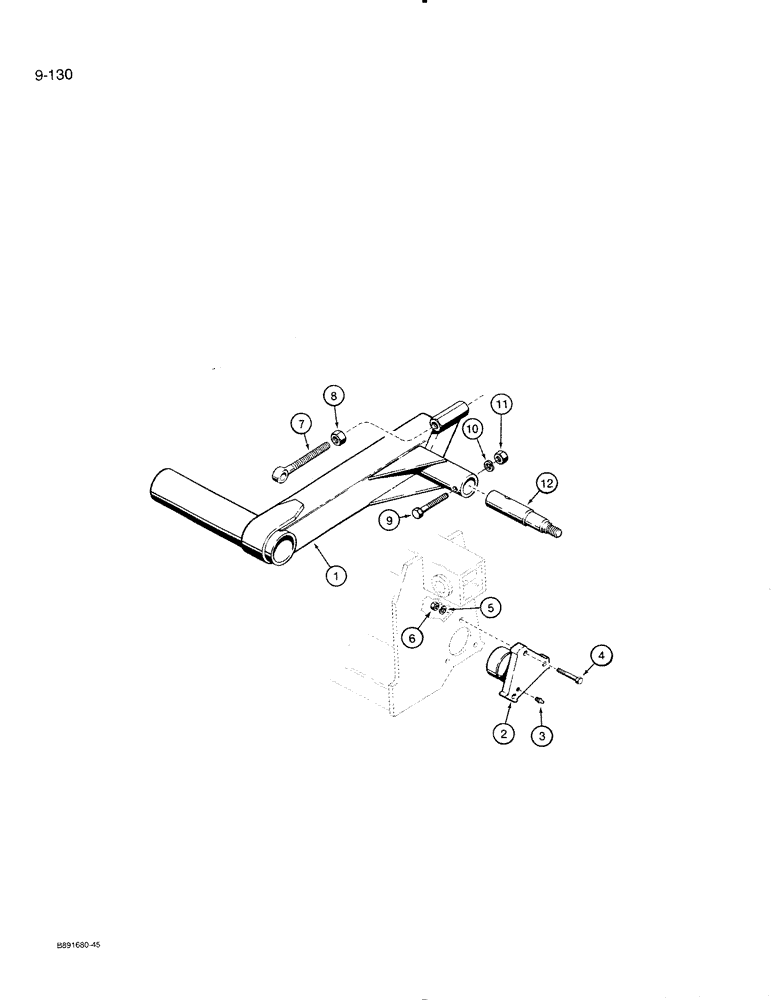

Запчасти Case IH 8500 (9-130) - GAUGE WHEEL PARTS, USED WITH FRAME SECTION NUMBER FOUR, 33 FOOT WIDE DRILL (09) - CHASSIS/ATTACHMENTS

1

1344597C1

FRAME

ARM - gauge wheel, section number 4

1шт.

2

1337302C1

BUSHING

TUBE AND BUSHING -, Serial Range: arm-frame

2шт.

3

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

2шт.

4

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

- hex head, 5/8" - 11 NC x 2"

6шт.

5

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

6

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8" - 11 NC

6шт.

7

89055C1

BOLT

EYEBOLT - cylinder mounting

1шт.

8

272140

BOLT,Jam, 1 1/4"-7, G5

- hex jam, 1-1/4" - 7 NC

1шт.

9

180191

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

- hex head, 1/2" - 13 NC x 3-1/4"

1шт.

10

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

11

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

12

REF

INSTRUCTION

SPINDLE - hub, 6 bolt, see page 9-9 for hub and bearings

1шт.
