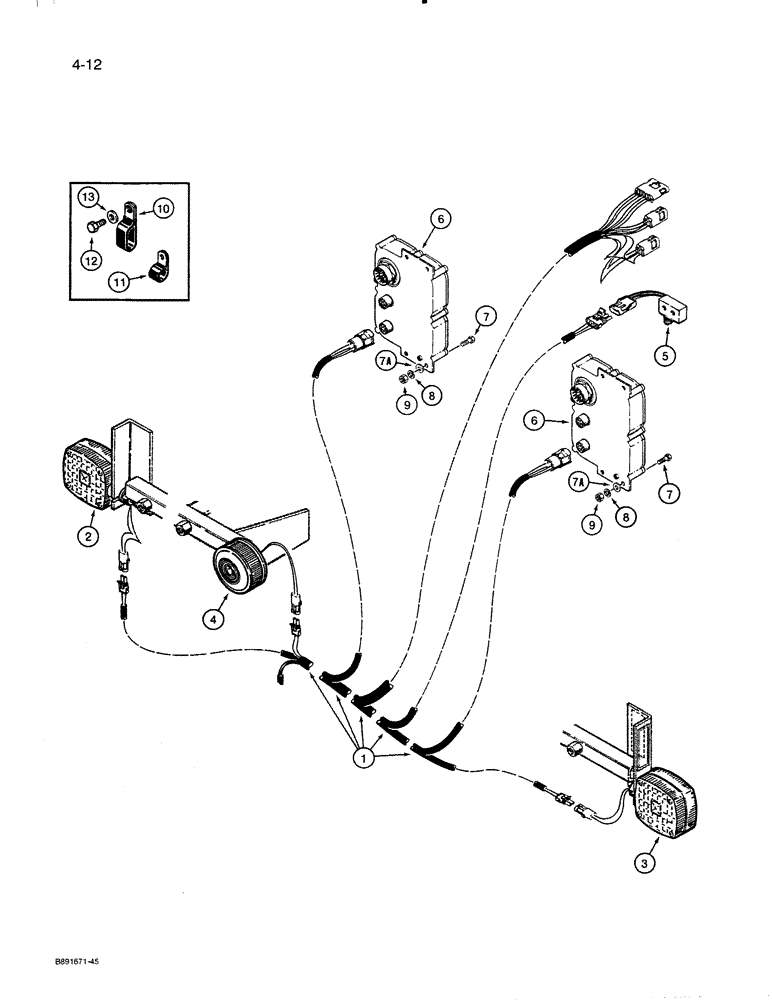

Запчасти Case IH 8500 (4-12) - TOOL BAR HARNESS, UNITS WITH 7 & 10 INCH ROW SPACING & BLOCKAGE MONITOR SYSTEM, 33 FOOT WIDE DRILL (04) - ELECTRICAL SYSTEMS

1

92205C2

HARNESS

- tool bar, to blockage module numbers 3 and 4

1шт.

2

91913C91

LIGHT

LAMP ASSEMBLY - turn signal, left-hand, parts list page 4-31

1шт.

3

91913C91

LIGHT

LAMP ASSEMBLY - turn signal, right-hand, parts list page 4-31

1шт.

4

91986C91

LIGHT

LAMP ASSEMBLY - tail, left-hand, parts list page 4-29

1шт.

5

84053C1

SWITCH

AND WIRE ASSEMBLY - micro, drive clutch, see page

1шт.

9-63 for related parts

1шт.

6

91482C2

CONTROL

MODULE - blockage, numbers 3 and 4, see pages 4-17 and 4-21 for jumper and pin sensor harnesses, see page 4-7, item 6

1шт.

for remanufactured module and return part numbers

2шт.

7

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

8шт.

7a

120392

WASHER,1/4", SAE

- flat, 1/4"

8шт.

8

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

9

120375

NUT,Hex, 1/4" - 20, Gr 5

8шт.

10

1251744C2

CLAMP

- harness to tool bar, 2 wire

1шт.

11

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLAMP - harness to tool bar, 1 wire

1шт.

12

180116

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

- hex head, 3/8" - 16 NC x 1/2", harness clamps to

1шт.

weldnuts on tool bar

1шт.

13

120394

WASHER,3/8", SAE

WASHER - flat, 3/8"

1шт.
