(9-146) - CART LINK, USED WITH FRAME SECTION NUMBER THREE, 33 FOOT WIDE DRILL

Запчасти Case IH 8500 (9-146) - CART LINK, USED WITH FRAME SECTION NUMBER THREE, 33 FOOT WIDE DRILL (09) - CHASSIS/ATTACHMENTS

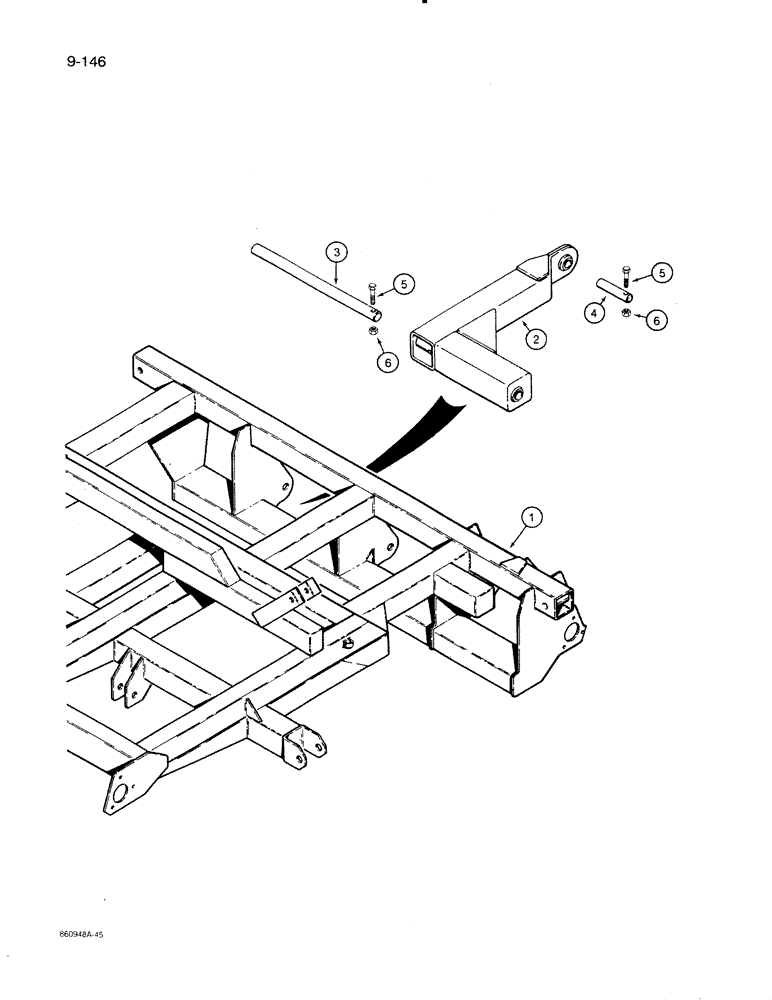

Схема запчастей Case IH 8500 - (9-146) - CART LINK, USED WITH FRAME SECTION NUMBER THREE, 33 FOOT WIDE DRILL (09) - CHASSIS/ATTACHMENTS
5
5
6
1
2
4
3
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

FRAME - drill, section number 3, see page 9-101

1шт.

for correct frame

1шт.

2

1337300C1

LINK

- cart to drill frame

1шт.

3

1337383C1

SHAFT

- cart link, at drill frame

1шт.

4

1337395C1

PIN

- cart link, at cart frame

1шт.

5

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex head, 5/16" - 18 NC x 2-1/4"

2шт.

6

9413952

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC

2шт.
