(9-170) - PRESS WHEEL FRAME AND MOUNTING PARTS, USED WITH FRAME SECTIONS ONE AND SIX, 45 FOOT WIDE DRILL

Запчасти Case IH 8500 (9-170) - PRESS WHEEL FRAME AND MOUNTING PARTS, USED WITH FRAME SECTIONS ONE AND SIX, 45 FOOT WIDE DRILL (09) - CHASSIS/ATTACHMENTS

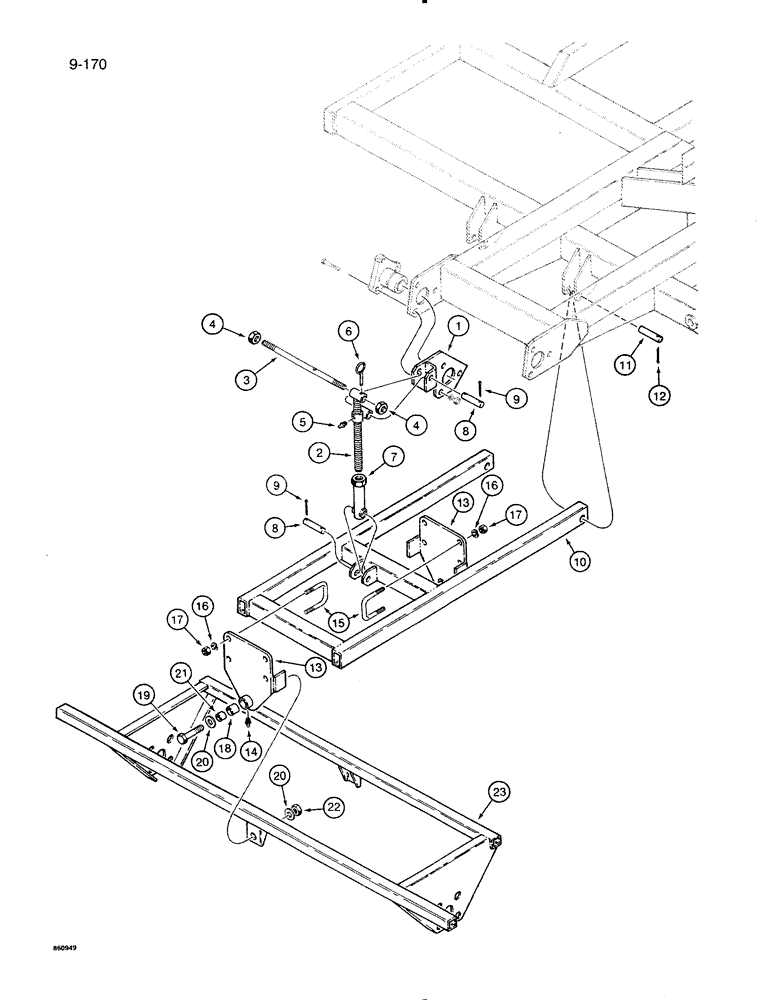

Схема запчастей Case IH 8500 - (9-170) - PRESS WHEEL FRAME AND MOUNTING PARTS, USED WITH FRAME SECTIONS ONE AND SIX, 45 FOOT WIDE DRILL (09) - CHASSIS/ATTACHMENTS
8
3
8
6
1
4
9
7
5
19
16
13
13
21
9
4
2
20
14
17
15
10
16
17
11
22
23
12
18
20
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1337313C1

CLEVIS

BRACKET - mounting, adjusting screw, section number 1

1шт.

1

1337314C1

CLEVIS

BRACKET - mounting, adjusting screw, section number 6

1шт.

not shown, see item 10, page 9-107

1шт.

2

1337328C1

ADJUSTMENT SCREW

- adjusting, frame

2шт.

3

1337398C1

ROD,3/4" - 10 x 17 1/2"

HANDLE - adjusting screw

2шт.

4

280954

NUT,3/4"-10, G5

4шт.

5

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

2шт.

6

1337334C1

PIN

- hitch, spring, 1/4" diameter x 2" long

2шт.

7

1337332C1

TUBE

- adjusting screw

2шт.

8

1337397C1

PIN

- mounting, adjusting screw and tube

4шт.

9

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

8шт.

10

1337331C1

HANGER

FRAME - mounting, press wheel, 19" inside dimension

1шт.

between arms, units with 7 inch row spacing

2шт.

10

1337330C1

HANGER

FRAME - mounting, press wheel, 25" inside dimension

1шт.

between arms, units with 10 and 12 inch row spacing, not shown

2шт.

11

1337399C1

PIN

- press wheel frame to drill frame

4шт.

12

432-1232

COTTER PIN,3/16" OD x 2" L

Pin, Split (Cotter), 3/16" x 1 3/4"

8шт.

13

1337333C1

HANGER

BRACKET - mounting, press wheel frame to mounting frame

4шт.

14

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

4шт.

15

1337378C1

BOLT

U-BOLT -, Serial Range: bracket-frame

8шт.

16

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

17

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8" - 11 NC

16шт.

18

1337424C1

BUSHING

- bracket

4шт.

19

271821

BOLT,Hex, 7/8" - 9 x 3 1/2", Gr 5

- hex head, 7/8" - 9 NC x 3-1/2"

4шт.

20

27820R1

WASHER

- flat, 7/8"

8шт.

21

1337388C1

SLEEVE

SPACER - bolt, Serial Range: frame-bracket

4шт.

22

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

4шт.

23

REF

INSTRUCTION

PRESS WHEELS AND FRAME - drill, see pages 9-173, 9-177, 9-181

1шт.

9-183 and 9-187 for options

1шт.
