(9-212) - AIR SYSTEM, MANIFOLD PIPE TO FURROW OPENERS, UNITS WITH 10 INCH ROW SPACING, 45 FOOT WIDE DRILL

Запчасти Case IH 8500 (9-212) - AIR SYSTEM, MANIFOLD PIPE TO FURROW OPENERS, UNITS WITH 10 INCH ROW SPACING, 45 FOOT WIDE DRILL (09) - CHASSIS/ATTACHMENTS

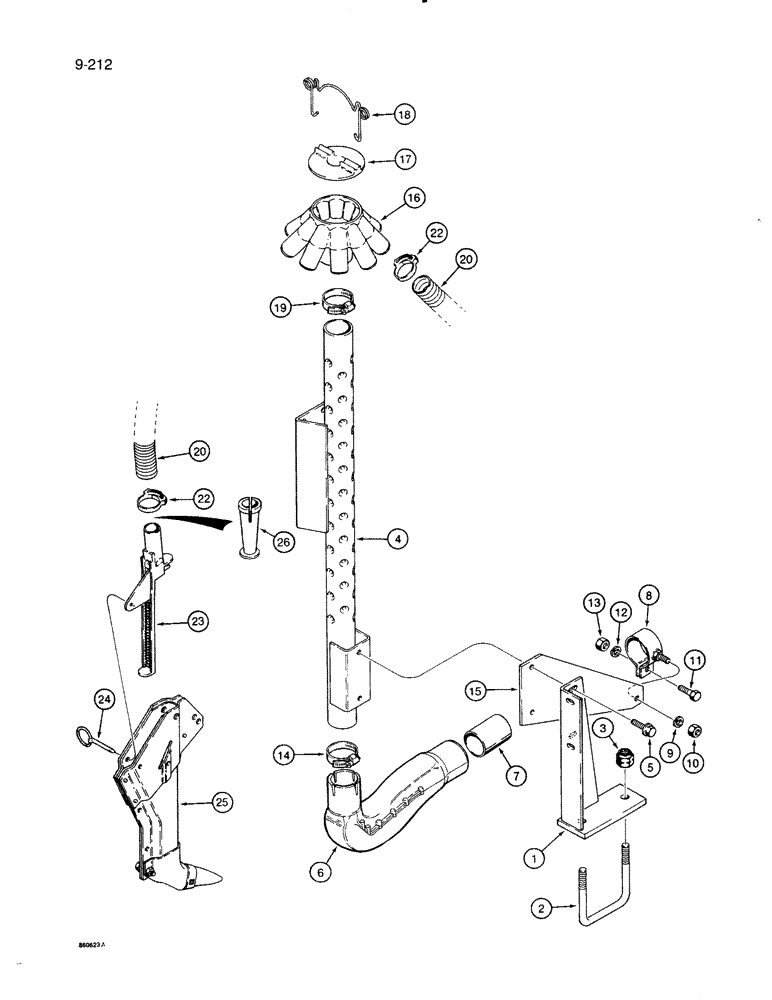

Схема запчастей Case IH 8500 - (9-212) - AIR SYSTEM, MANIFOLD PIPE TO FURROW OPENERS, UNITS WITH 10 INCH ROW SPACING, 45 FOOT WIDE DRILL (09) - CHASSIS/ATTACHMENTS
8
22
15
12
20
18
24
11
16
20
14
25
3
13
7
2
19
1
22
5
10
17
26
9
6
23
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

842819C1

ANCHOR

BRACKET - mounting, manifold, Serial Range: pipe-frame

6шт.

2

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

-, Serial Range: bracket-frame

6шт.

3

174763C1

FLANGE NUT,Flg, USR, 5/8"-12

- hex, self-locking, 5/8" - 11 NC

12шт.

4

841217C1

TUBE ASSY.,485, 230 mm Length

PIPE - manifold, air

6шт.

5

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- special, locking

12шт.

6

1960634C1

ELBOW

- manifold pipe

6шт.

7

842270C1

SPACER

- clamp

6шт.

8

842860C1

CLAMP

- elbow, special

6шт.

9

116121

LOCK WASHER,1/2"

WASHER, LOCK, , Axle carrier 1/2"

6шт.

10

118617

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

6шт.

11

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

- hex head, 1/2" - 13 NC x 1-1/4"

6шт.

12

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

13

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

14

1960339C1

HOSE CLAMP,2.25/3.125 HD Worm, W/liner

CLAMP - elbow to manifold pipe

6шт.

15

842862C1

PLATE

SUPPORT - manifold pipe and elbow

6шт.

16

842471C1

HEAD

MANIFOLD - distribution, 9 outlet

6шт.

17

842276C1

CAP

- manifold

6шт.

18

842890C2

SPRING

RETAINER - manifold cap

6шт.

19

1960339C1

HOSE CLAMP,2.25/3.125 HD Worm, W/liner

CLAMP - manifold to pipe

6шт.

20

REF

INSTRUCTION

HOSE - manifold to furrow openers

1шт.

see page 9-231 for correct lengths

54шт.

22

91174C1

CLAMP,40.4mm - 46.1mm

- hose, manifold to furrow openers

1шт.

1.60" - 1.80" (40 mm - 46 mm) range

108шт.

22

97612C1

CLAMP

- hose, manifold to furrow openers

1шт.

1.70" - 2.0" (43 mm - 51 mm) range

108шт.

23

89079C1

ADAPTER

- hose to furrow opener

54шт.

24

32-1640

COTTER PIN,1/4" x 2 1/2"

PIN - retainer, adapter to furrow opener

54шт.

25

REF

INSTRUCTION

OPENER ASSEMBLY - furrow, see pages 9-149 and 9-159

1шт.

for furrow openers and mounting parts

54шт.

26

1546951C1

FUNNEL

- hose adapter, small seed, one used per furrow opener, if used

1шт.
