(9-224) - AIR SYSTEM HOSES, 2-1/2 INCH ID, VENTURIS TO MANIFOLD PIPES, 33 FOOT WIDE DRILL

Запчасти Case IH 8500 (9-224) - AIR SYSTEM HOSES, 2-1/2 INCH ID, VENTURIS TO MANIFOLD PIPES, 33 FOOT WIDE DRILL (09) - CHASSIS/ATTACHMENTS

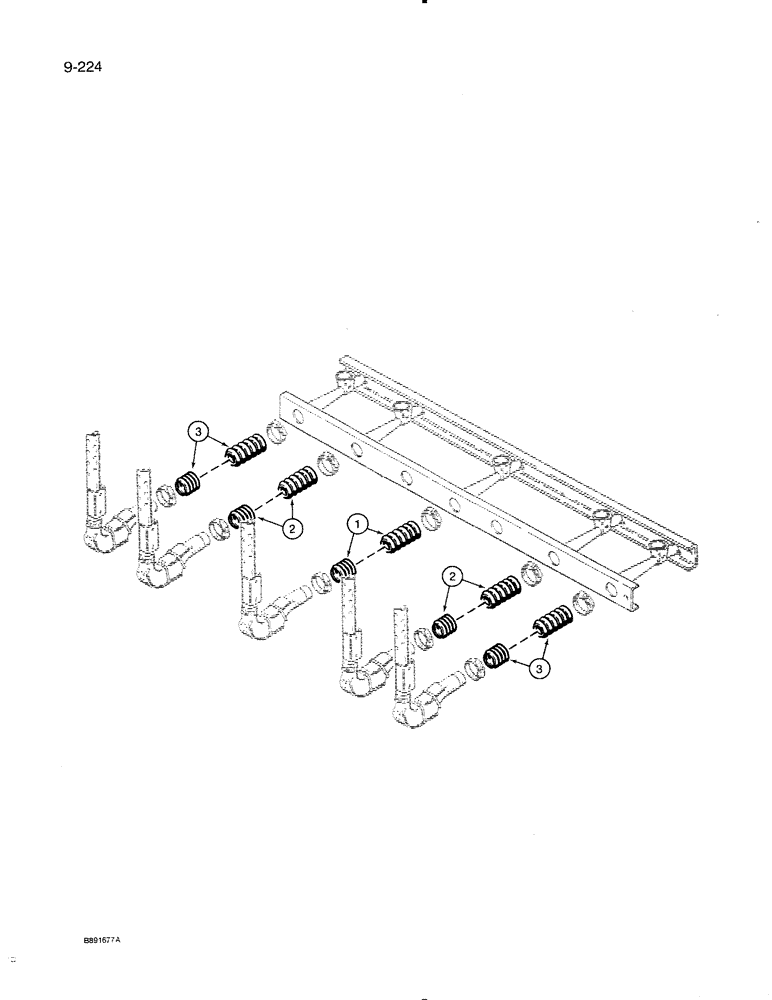

Схема запчастей Case IH 8500 - (9-224) - AIR SYSTEM HOSES, 2-1/2 INCH ID, VENTURIS TO MANIFOLD PIPES, 33 FOOT WIDE DRILL (09) - CHASSIS/ATTACHMENTS
3
2
2
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1960432C1

HOSE - 6 foot 11 inches (2100 mm) long, Serial Range: venturi-manifold

1шт.

pipe, cut from 1978963C1 or 1978964C1 bulk roll, see below

1шт.

2

89026C1

HOSE - 9 foot 6 inches(2896 mm) long, Serial Range: venturi-manifold

1шт.

pipe, cut from 1978963C1 or 1978964C1 bulk roll, see below

2шт.

3

841628C1

HOSE - 16 foot (4877 mm) long, Serial Range: venturi-manifold

1шт.

pipe, cut from 1978963C1 or 1978964C1 bulk roll, see below

2шт.

1978963C1

HOSE

- manifold to venturi, bulk roll

1шт.

2-1/2 inch (64 mm) ID x 81 ft (24690 mm) long

1шт.

86993497

HOSE,2.50" ID

1978964C1 Sold by the Foot 2.50" ID

1шт.

2-1/2 inch (64 mm) ID x 50 ft (15240 mm) long

1шт.
