(9-234) - AIR SYSTEM HOSES, 1-3/8" ID, MANIFOLD TO FURROW OPENERS, UNITS WITH 12" ROW SPACING, 45 WIDE DRILL

Запчасти Case IH 8500 (9-234) - AIR SYSTEM HOSES, 1-3/8" ID, MANIFOLD TO FURROW OPENERS, UNITS WITH 12" ROW SPACING, 45 WIDE DRILL (09) - CHASSIS/ATTACHMENTS

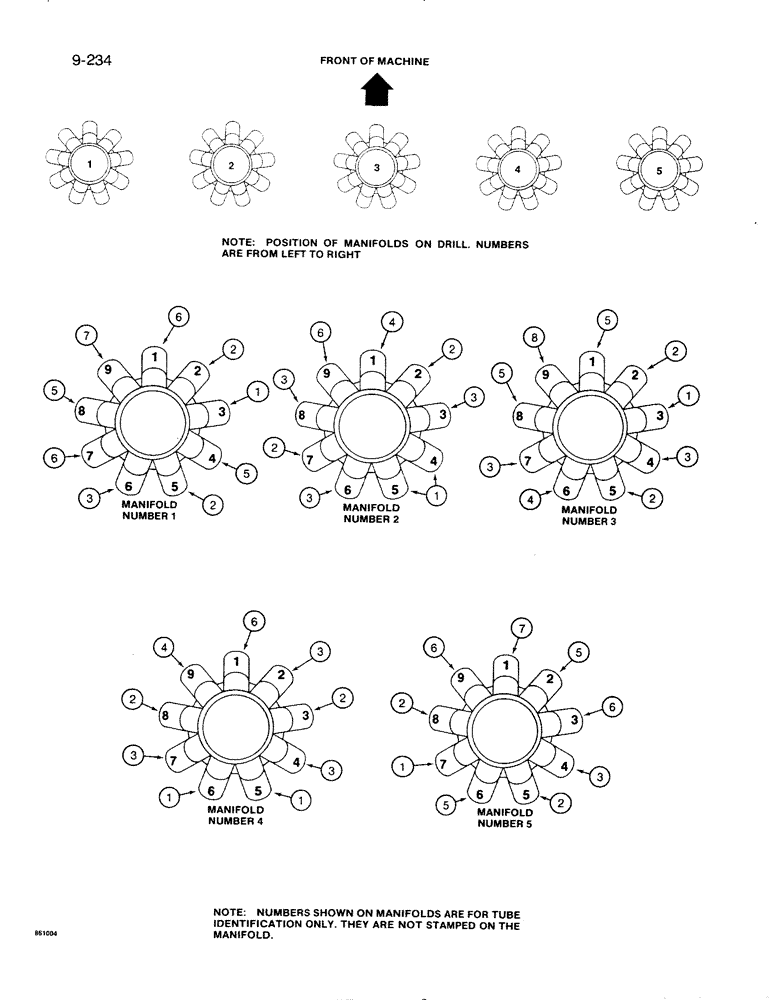

Схема запчастей Case IH 8500 - (9-234) - AIR SYSTEM HOSES, 1-3/8" ID, MANIFOLD TO FURROW OPENERS, UNITS WITH 12" ROW SPACING, 45 WIDE DRILL (09) - CHASSIS/ATTACHMENTS
4
3
3
2
2
4
1
3
3
5
1
3
2
5
6
2
4
5
6
3
3
6
6
2
1
2
2
7
6
5
5
2
2
6
3
7
8
3
2
1
3
1
5
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

HOSE - 63 inch (1600 mm) long, cut from 1333818C1

1шт.

bulk roll, see below

7шт.

2

REF

INSTRUCTION

HOSE - 68 inch (1727 mm) long, cut from 1333818C1

1шт.

bulk roll, see below

10шт.

3

REF

INSTRUCTION

HOSE - 74 inch (1880 mm) long, cut from 1333818C1

1шт.

bulk roll, see below

10шт.

4

REF

INSTRUCTION

HOSE - 79 inch (2007 mm) long, cut from 1333818C1

1шт.

bulk roll, see below

3шт.

5

REF

INSTRUCTION

HOSE - 84 inch (2134 mm) long, cut from 1333818C1

1шт.

bulk roll, see below

6шт.

6

REF

INSTRUCTION

HOSE - 90 inch (2286 mm) long, cut from 1333818C1

1шт.

bulk roll, see below

6шт.

7

REF

INSTRUCTION

HOSE - 96 inch (2440 mm) long, cut from 1333818C1

1шт.

bulk roll, see below

2шт.

8

REF

INSTRUCTION

HOSE - 102 inch (2590 mm) long, cut from 1333818C1

1шт.

bulk roll, see below

1шт.

1333818C1

HOSE,100.00"

- manifold to furrow openers, bulk roll

1шт.

1-3/8 inch (35 mm) ID x 100 foot (30480 mm) long

1шт.
