(8-24) - GAUGE WHEEL LINES, MASTER CYLINDERS & STROKE CONTROL, W/ CESSNA GLAND TYPE CYLINDERS, 45 WIDE DRILL

Запчасти Case IH 8500 (8-24) - GAUGE WHEEL LINES, MASTER CYLINDERS & STROKE CONTROL, W/ CESSNA GLAND TYPE CYLINDERS, 45 WIDE DRILL (08) - HYDRAULICS

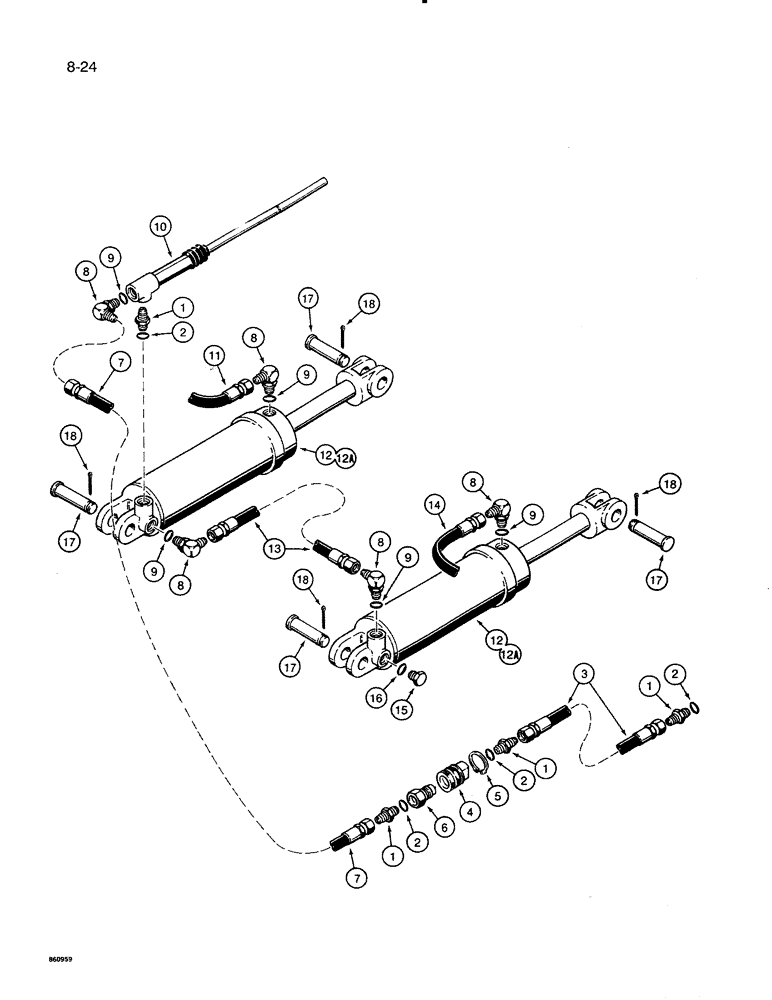

Схема запчастей Case IH 8500 - (8-24) - GAUGE WHEEL LINES, MASTER CYLINDERS & STROKE CONTROL, W/ CESSNA GLAND TYPE CYLINDERS, 45 WIDE DRILL (08) - HYDRAULICS
9
8
18
17
5
9
7
17
18
9
8
3
1
13
6
12a
1
10
18
2
12a
7
16
17
8
1
2
8
9
2
18
9
14
4
17
1
12
2
11
9
15
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - male, straight

4шт.

2

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- adapter

4шт.

3

91162C1

HYDRAULIC HOSE,12.70 mm ID x 6730.00 mm, SAE 100R1

12.70 mm ID X 6730.00 mm, at Cart Frame

1шт.

4

1337480C1

COUPLING

DISCONNECT - quick, female

1шт.

5

69339R1

SNAP RING,#150, Ext

Ring, Snap, , disconnect to frame #150, Ext

1шт.

6

1285718C2

QUICK MALE COUPLING

DISCONNECT - quick, male

1шт.

7

1301963C2

HYDRAULIC HOSE,12.7mm ID x 1270mm L

HOSE - 4.25 ft (1.3 m) long, disconnect to stroke control cylinder

1шт.

8

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

- 90 degree

5шт.

9

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- elbow

5шт.

10

1337464C1

CONTROL

CYLINDER ASSEMBLY - stroke control, parts list figure 8-55

1шт.

11

91202C1

HYDRAULIC HOSE,12.70 mm ID x 2160.00 mm, SAE 100R1

Closed End of 4.50" ID Gauge Wheel Cylinder to Rod End of 4.75" ID Master Cylinder 12.70 mm ID x 2160.00 mm, SAE 100R1

1шт.

For continuation of lines to gauge wheel cylinders, see figures 8-27 and 8-29.

1шт.

12

1337456C1

CYLINDER

ASSEMBLY - master, 4-3/4" ID, major component parts not serviced separately

1шт.

12a

1337472C1

SEAL KIT

- seal, cylinder repair, not shown

1шт.

13

390649R92

HYDRAULIC HOSE

HOSE - 1.67 ft (0.51 m) long, crossover, closed end of 4-3/4" ID master cylinders

1шт.

14

147843C2

HYDRAULIC HOSE,12.70 mm ID x 2795.00 mm, SAE 100R17

Closed End 4.50" ID Gauge Wheel Cylinder to Rod End of 4.75" ID Master Cylinder 12.70 mm ID x 2795.00 mm, SAE 100R17

1шт.

For continuation of lines to gauge wheel cylinders, see figures 8-27 and 8-29.

1шт.

15

9410359

PLUG

- cylinder port, closed end of 4-3/4" ID cylinder

1шт.

16

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- plug

1шт.

17

1337470C1

PIN

- clevis, 4-3/4" ID master cylinder mounting

4шт.

18

NLS

NO LONGER SERVICED

SPLIT (COTTER), 3/16" x 2"

4шт.
