(8-40) - GAUGE WHEEL LINES, LEFT HAND GAUGE WHEEL CYLINDERS, W/ MIDWAY TIE ROD TYPE CYLINDERS, 45 WIDE DRILL

Запчасти Case IH 8500 (8-40) - GAUGE WHEEL LINES, LEFT HAND GAUGE WHEEL CYLINDERS, W/ MIDWAY TIE ROD TYPE CYLINDERS, 45 WIDE DRILL (08) - HYDRAULICS

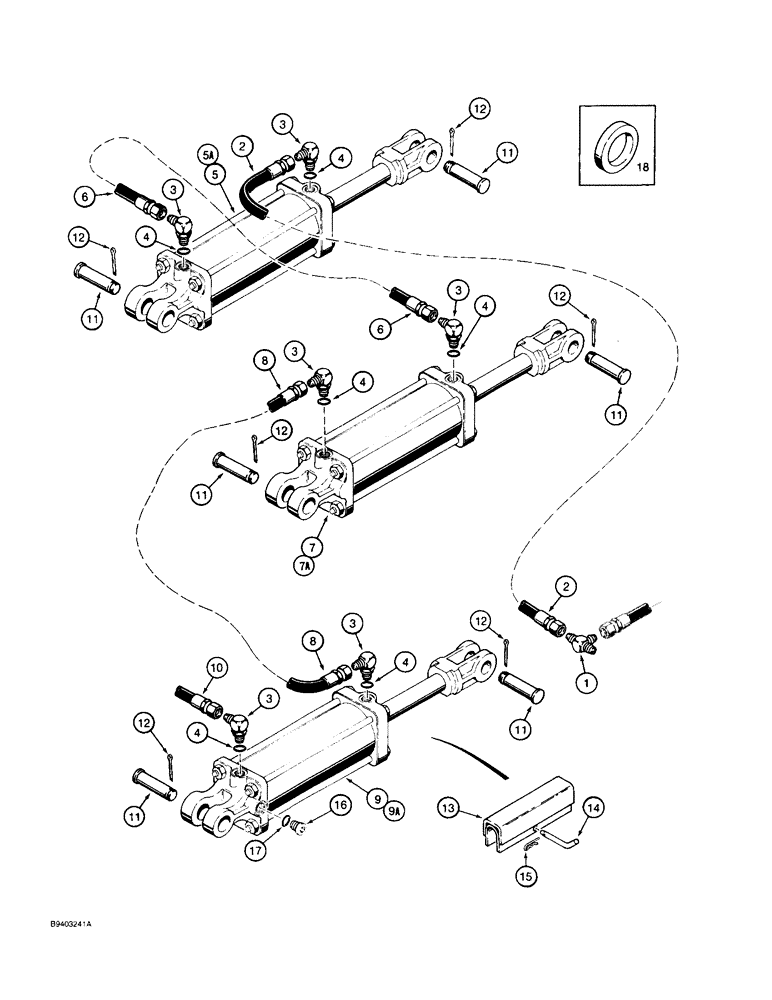

Схема запчастей Case IH 8500 - (8-40) - GAUGE WHEEL LINES, LEFT HAND GAUGE WHEEL CYLINDERS, W/ MIDWAY TIE ROD TYPE CYLINDERS, 45 WIDE DRILL (08) - HYDRAULICS
1
12
5a
3
6
4
8
16
6
3
11
17
10
2
11
7a
12
12
4
12
3
13
4
15
14
3
11
4
2
9a
3
11
12
3
18
9
8
4
5
7
11
11
4
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

218-594

TEE,3/4"-16, 37 Degree

- 3/4-16 inch flare, hose to cylinders, see item number 6

1шт.

page 8-39 for additional connections

1шт.

2

1337374C1

HYDRAULIC HOSE

HOSE - 268 inch long, tee to 4 inch ID parallel arm

1шт.

cylinder, rod end

1шт.

3

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss

6шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

5

118567A1

CYLINDER

ASSEMBLY - parallel arm, 4 inch ID, major

1шт.

component parts not serviced separately

1шт.

5a

118614A1

SEAL KIT

- seal, cylinder repair, not shown

1шт.

6

91202C1

HYDRAULIC HOSE,12.70 mm ID x 2160.00 mm, SAE 100R1

12.70 mm ID X 2160.00 mm, Closed End of Parallel Arm

1шт.

cylinder to rod end of 4-1/4 inch ID gauge wheel cylinder

1шт.

7

118578A1

CYLINDER

ASSEMBLY - gauge wheel, 4-1/4 inch ID, major

1шт.

component parts not serviced separately

1шт.

7a

118615A1

SEAL KIT

- seal, cylinder repair, not shown

1шт.

8

91241C1

HYDRAULIC HOSE,12.70 mm ID x 5080.00 mm, SAE 100R1

Closed End of 4.25" ID Gauge 12.70 mm ID x 5080.00 mm, SAE 100R1

1шт.

wheel cylinder to rod end of 4-1/2 inch ID gauge wheel cylinder

1шт.

9

118579A1

CYLINDER

ASSEMBLY - gauge wheel, 4-1/2 inch ID, major

1шт.

component parts not serviced separately

1шт.

9a

118616A1

SEAL KIT

- seal, cylinder repair, not shown

1шт.

10

195869C2

HYDRAULIC HOSE

HOSE - 74 inch long, closed end of 4-1/2 inch ID gauge wheel cylinder to rod end of 4-3/4 inch ID cylinder

1шт.

see item number 15, page 8-37

1шт.

11

118883A1

PIN

- clevis, cylinder mounting

6шт.

12

432-1228

COTTER PIN,3/16" x 1 3/4"

3/16" x 1 3/4"

6шт.

13

118700A1

LOCK, CYLINDER

LOCK - cylinder, channel

1шт.

14

1344885C1

PIN

- cylinder lock

1шт.

15

473443R1

COTTER PIN

- hair type, lock pin

1шт.

16

214389

PLUG,3/4" - 16 ORB

1шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

18

118636A1

SPACER

- cylinder mounting

1шт.
