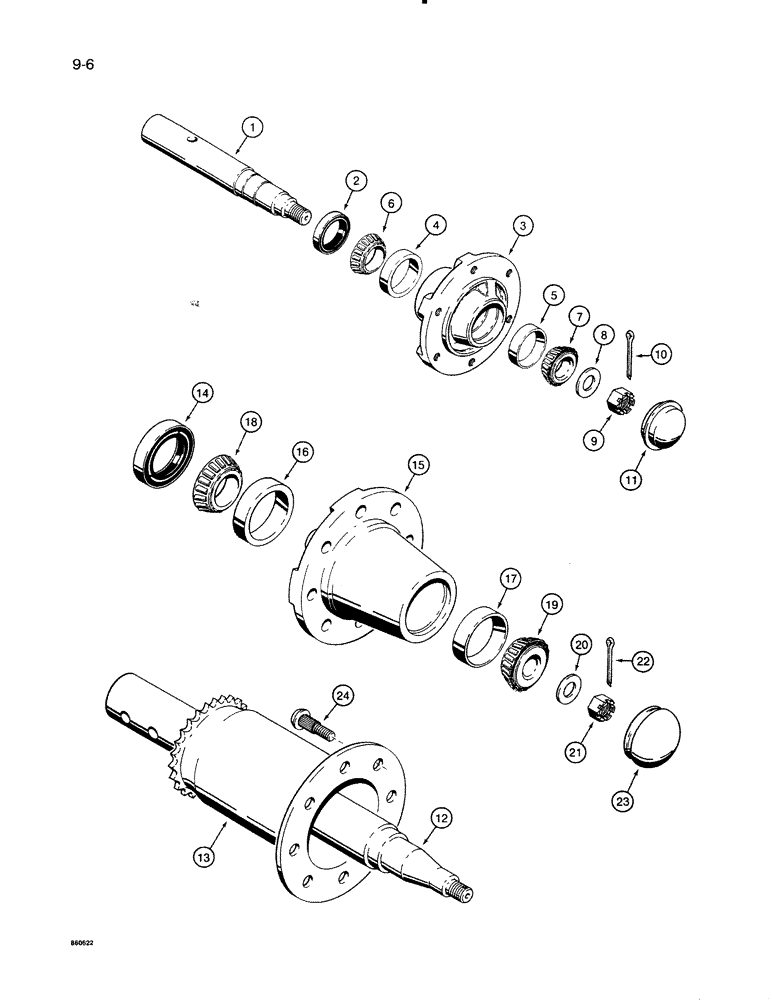

Запчасти Case IH 8500 (9-006) - SPINDLES, HUBS AND BEARINGS, 45 FOOT WIDE DRILL (09) - CHASSIS/ATTACHMENTS

1

1337380C1

SPINDLE

- wheel

14шт.

2

56514C1

OIL SEAL

- wheel hub

14шт.

3

1337381C1

HUB

- wheel, 6 bolt

14шт.

4

478793R1

BEARING CUP

CUP - bearing, inner

14шт.

5

651817R1

BEARING CUP

CUP - bearing, outer

14шт.

6

160558C91

BEARING ASSY,1.5005" ID x 2.5635" OD x 0.72"

BEARING - tapered roller, inner

14шт.

7

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING - tapered roller, outer

14шт.

8

25539R1

WASHER

WASHER - thrust, bearing

14шт.

9

427645

SLOTTED NUT,7/8"-14, G5

NUT - hex, slotted, 7/8" - 14 NF

14шт.

10

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

14шт.

11

1337382C1

CAP

- hub, spindle

14шт.

12

1337437C1

SPINDLE

- wheel hub USED WITH 8 BOLT PATTERN

2шт.

13

1337432C1

SPROCKET ASSY.

SPROCKET - main drive, used with 8 BOLT PATTERN WHEELS

1шт.

right-hand wheel hub USED WITH 8 BOLT PATTERN

1шт.

14

820095C91

SEAL

- hub USED WITH 8 BOLT PATTERN WHEELS

2шт.

15

1337436C1

HUB

- wheel, 8 bolt USED WITH PATTERN

2шт.

16

22365V

BEARING CUP,3.6718" OD x 0.93"

CUP - bearing, inner USED WITH 8 BOLT PATTERN WHEELS

2шт.

17

17498D

TAPERED BEARING," ID x 76.2125 mm OD x 23.9135 mm

CUP - bearing, outer USED WITH 8 BOLT PATTERN WHEELS

2шт.

18

PO12993

BEARING CONE

BEARING - tapered roller, inner USED WITH 8 BOLT PATTERN WHEELS

2шт.

19

B32159

EXCITER

BEARING - tapered roller, outer USED WITH 8 BOLT PATTERN WHEELS

2шт.

20

25539R1

WASHER

WASHER - thrust, bearing USED WITH 8 BOLT PATTERN WHEELS

2шт.

21

427645

SLOTTED NUT,7/8"-14, G5

NUT - hex, slotted, 7/8" - 14 NF USED WITH 8 BOLT PATTERN WHEELS

2шт.

22

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), , used with 8 bolt pattern wheels 3/16" x 1 1/4"

2шт.

23

1337427C1

CAP

- hub, spindle USED WITH 8 BOLT PATTERN WHEELS

2шт.

24

1337428C1

BOLT

- wheel stud USED WITH 8 BOLT PATTERN

16шт.
