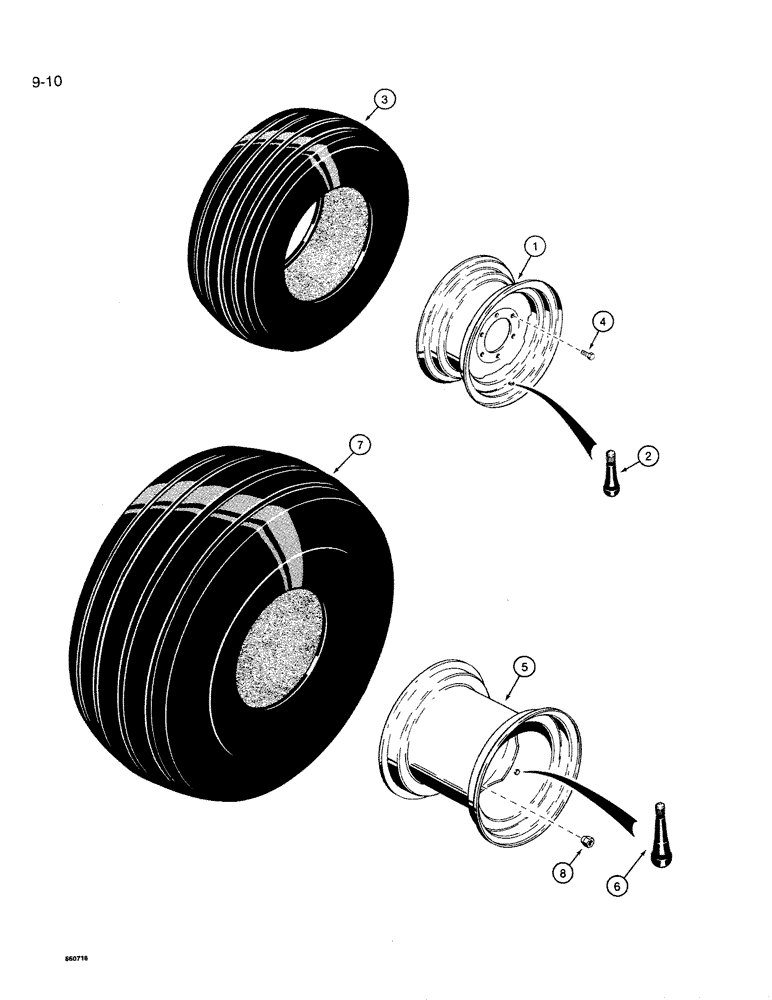

Запчасти Case IH 8500 (9-010) - WHEELS AND TIRES, 45 FOOT WIDE DRILL (09) - CHASSIS/ATTACHMENTS

1

486101R1

RIM

WHEEL - gauge and lift assist, 8" x 15", 6 bolt

14шт.

2

387841R91

VALVE

STEM - valve, wheel

14шт.

3

REF

INSTRUCTION

TIRE - gauge wheel and lift assist, 9.5L x 15, 6 ply tubeless

1шт.

purchase from local source

14шт.

4

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

- lug, wheel to hub, special

84шт.

5

1337367C1

RIM

WHEEL - cart frame, 16.1" x 16", 8 bolt

2шт.

6

536705R91

VALVE

STEM - valve, wheel

2шт.

7

REF

INSTRUCTION

TIRE - cart frame, 19L x 16.1, 8 ply tubeless, purchase

1шт.

from local source

2шт.

8

1337446C1

NUT

- wheel stud on hub

16шт.
