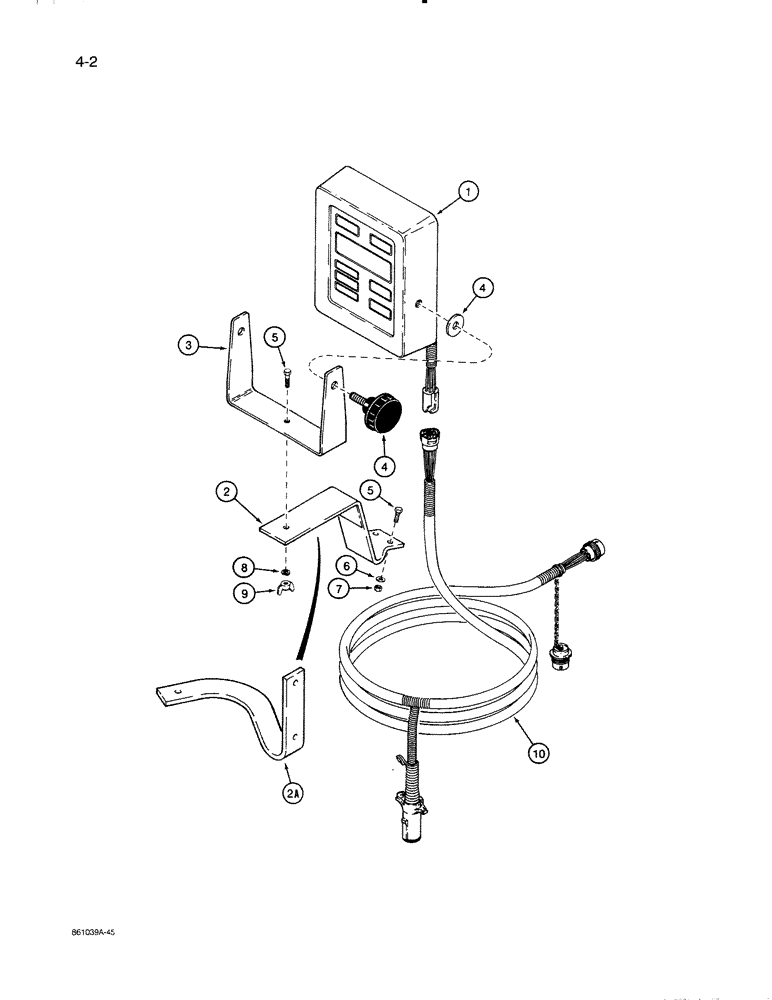

Запчасти Case IH 8500 (4-02) - MONITOR CONSOLE, CONTROL HARNESS AND MOUNTING PARTS (04) - ELECTRICAL SYSTEMS

1

1935100C1

CONSOLE

- monitor, drill function, remanufactured

1шт.

1

1935101C1

CORE

RETURN NUMBER - use this part number to return monitor core for credit when using a remanufactured assembly

1шт.

1

84201C2

CONSOLE

- monitor, drill function, new

1шт.

1a

1964797C1

FUSE

- monitor console, 10 amp, special slow blow, not shown

1шт.

2

1337109C1

BRACKET

- mounting, console, used with all CASEIH tractors except MAGNUM series

1шт.

2a

1960456C1

BRACKET

- mounting, console, used with MAGNUM series tractors only

1шт.

3

95831C1

SUPPORT

-, Serial Range: console-bracket

1шт.

4

1261524C91

REPAIR KIT

KIT - console, includes (2) knobs and (2) washers

1шт.

5

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

- hex head, 5/16" - 18 NC x 1"

3шт.

6

120393

BEARING WASHER,5/16", SAE

WASHER - flat, 5/16"

2шт.

7

120376

NUT,5/16"-18, G5

2шт.

8

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

9

129-419

WING NUT,5/16"-18

NUT - winged, 5/16" - 18 NC

1шт.

10

91798C1

HARNESS

- control, monitor console and 7 pole implement connector, see page 4-5 for cart harness

1шт.
