(9-100) - DRILL FRAME SECTION NUMBER THREE, 33 FOOT WIDE DRILL

Запчасти Case IH 8500 (9-100) - DRILL FRAME SECTION NUMBER THREE, 33 FOOT WIDE DRILL (09) - CHASSIS/ATTACHMENTS

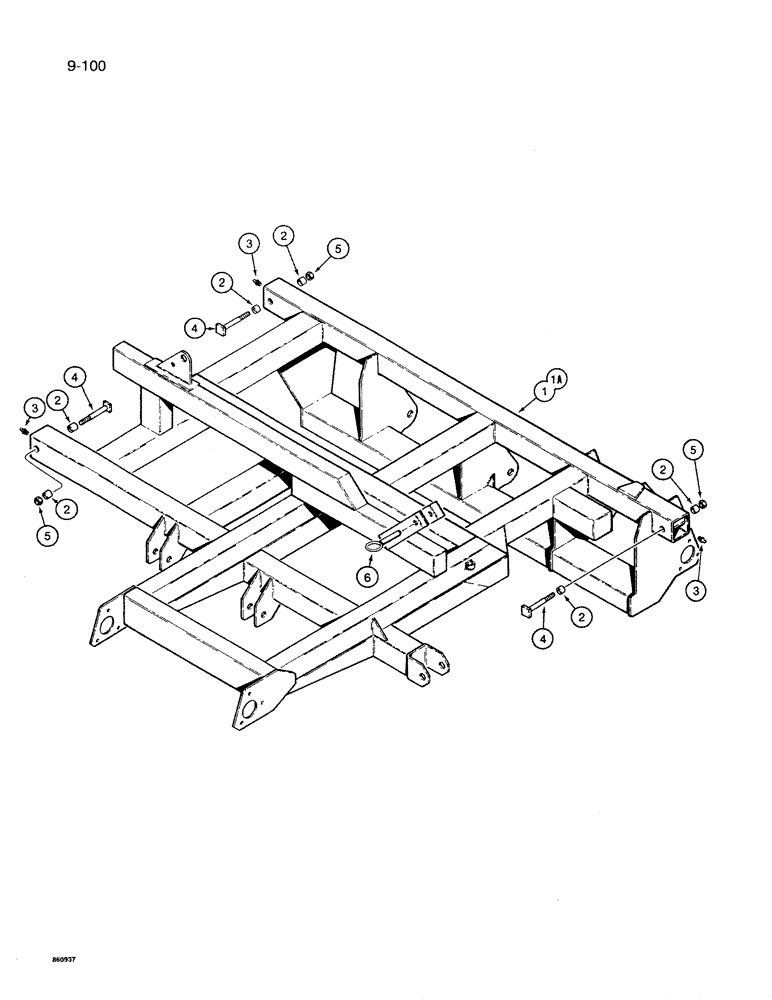

Схема запчастей Case IH 8500 - (9-100) - DRILL FRAME SECTION NUMBER THREE, 33 FOOT WIDE DRILL (09) - CHASSIS/ATTACHMENTS
5
2
2
2
1
3
6
4
2
4
5
3
1a
4
2
3
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

89004C1

FRAME

- drill, section number 3, used with 7 inch row spacing

1шт.

1a

89014C1

FRAME

- drill, section number 3, used with

1шт.

10 inch row spacing, not shown

1шт.

2

1337423C1

BUSHING

- frame pivot

6шт.

3

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

3шт.

4

1337438C1

BOLT

PIN - special, frame pivot

3шт.

5

26566R1

LOCK NUT

- hex, self-locking, 1" - 8 NC

3шт.

6

1131990R1

PIN

- lock, transport

1шт.
