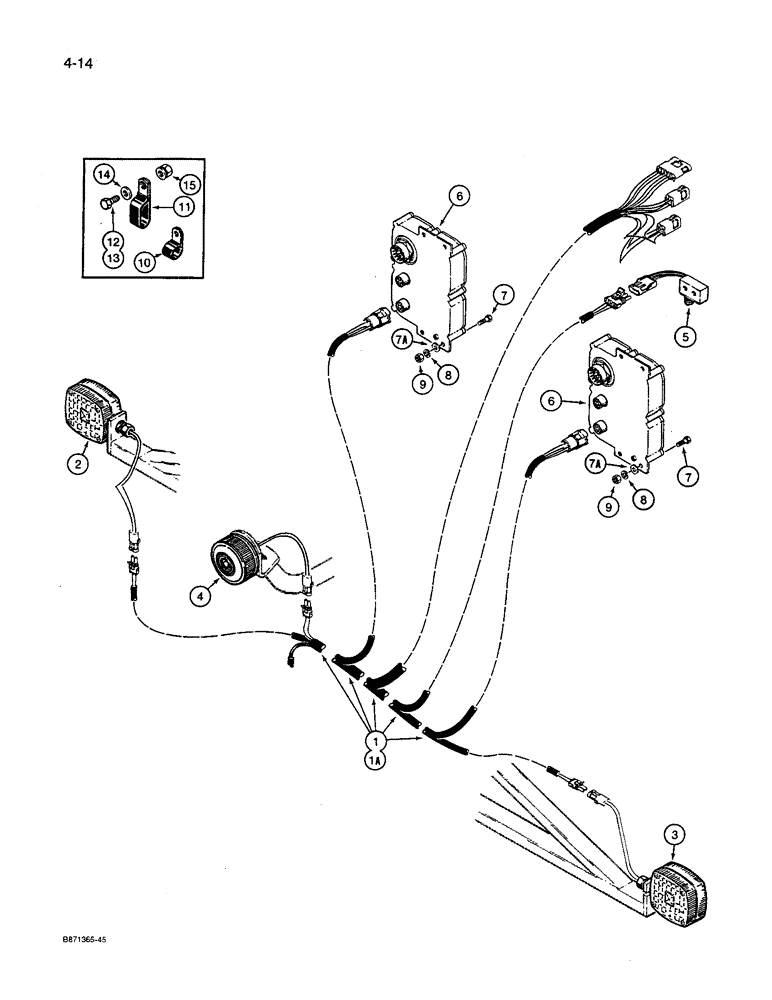

Запчасти Case IH 8600 (4-14) - TOOL BAR HARNESS, UNITS WITH BLOCKAGE MONITOR SYSTEM (04) - ELECTRICAL SYSTEMS

1

91849C3

HARNESS

- tool bar, to blockage module numbers 3 and 4, units with 6-1/2 inch row spacing

1шт.

1a

91984C3

HARNESS

- tool bar, to blockage module numbers 3 and 4, units with 9 inch row spacing

1шт.

2

91913C91

LIGHT

LAMP ASSEMBLY - flasher, left-hand, parts list page 4-23

1шт.

3

91913C91

LIGHT

LAMP ASSEMBLY - flasher, right-hand, parts list page 4-23

1шт.

4

91986C91

LIGHT

LAMP ASSEMBLY - tail, left-hand, parts list page 4-25

1шт.

5

84053C1

SWITCH

AND WIRE ASSEMBLY - micro, drive clutch, see page 9-47 for related parts

1шт.

6

91482C2

CONTROL

MODULE - blockage, new, numbers 3 and 4, see pages 4-17 and 4-19 for jumper harnesses and modules to pin sensors, see page 4-13, item 6 for remanufactured module and return part number

2шт.

7

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

8шт.

7a

120392

WASHER,1/4", SAE

- flat, 1/4"

8шт.

8

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

8шт.

9

120375

NUT,Hex, 1/4" - 20, Gr 5

8шт.

10

1251744C2

CLAMP

- harness to tool bar, 3/4" ID

1шт.

11

1969436C1

CLIP

CLAMP - harness to tool bar, 1-3/16" ID

1шт.

12

180116

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

- hex head, 3/8" - 16 NC x 1/2", harness clamps to weldnuts on tool bar

1шт.

13

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- hex head, 3/8" - 16 NC x 3/4", harness clamp

1шт.

14

120394

WASHER,3/8", SAE

WASHER - flat, 3/8"

1шт.

15

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex, flange lock, 3/8" - 16 NC

1шт.

16

533959R1

CABLE TIE,.135" x 11"

STRAP - tie, nylon, small, not shown

1шт.
