(8-08) - HYDRAULIC PUMP, 85036C91

Запчасти Case IH 8600 (8-08) - HYDRAULIC PUMP, 85036C91 (08) - HYDRAULICS

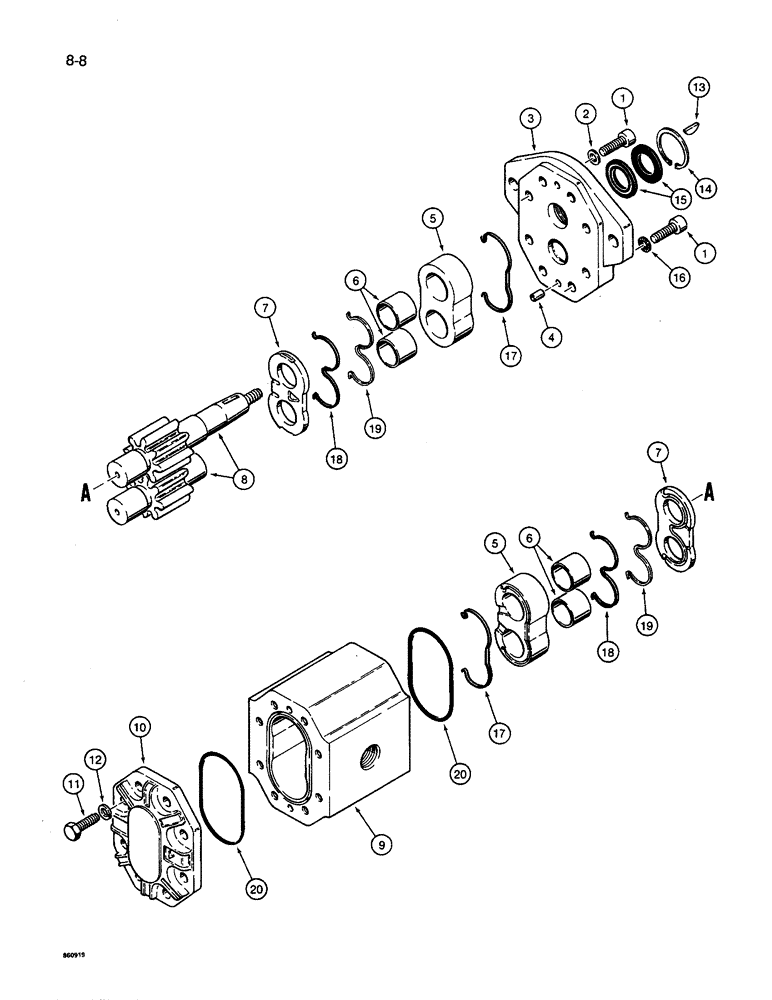

Схема запчастей Case IH 8600 - (8-08) - HYDRAULIC PUMP, 85036C91 (08) - HYDRAULICS
10
2
9
16
8
18
1
12
18
3
19
13
7
17
20
4
1
17
6
15
7
14
5
11
20
5
6
19
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

85036C91

PUMP

ASSEMBLy - hydraulic, fan drive

1шт.

1343578C1R

REMAN-HYD PUMP

8600, Reman For New P/N 85036C91

1шт.

1343578C1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

SCREW - hex socket head, front cover

8шт.

2

NSS

NOT SOLD SEPARAT

WASHER - flat

4шт.

3

NSS

NOT SOLD SEPARAT

COVER - front

1шт.

4

NSS

NOT SOLD SEPARAT

PIN - dowell, cover

2шт.

5

NSS

NOT SOLD SEPARAT

RETAINER - bushing

2шт.

6

NSS

NOT SOLD SEPARAT

BUSHING - pump

4шт.

7

NSS

NOT SOLD SEPARAT

PLATE - wear, pump

2шт.

8

NSS

NOT SOLD SEPARAT

GEAR SET AND SHAFT - drive and driven, matched set

1шт.

9

NSS

NOT SOLD SEPARAT

BODY - pump

1шт.

10

NSS

NOT SOLD SEPARAT

COVER - rear

1шт.

11

NSS

NOT SOLD SEPARAT

BOLT - hex, rear cover

8шт.

12

NSS

NOT SOLD SEPARAT

WASHER - lock

8шт.

13

124551

SCREW

- 1/4" x 7/8", Woodruff

1шт.

93408C1

SEAL KIT

- seal, pump

1шт.

14

376219R1

SNAP RING,1.653, Int, #165

Ring, Snap, 1.653", Int, #165, seal

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL - shaft

2шт.

16

NSS

NOT SOLD SEPARAT

WASHER - copper

4шт.

17

NSS

NOT SOLD SEPARAT

SEAL - retainer

2шт.

18

NSS

NOT SOLD SEPARAT

SEAL - pressure

2шт.

19

NSS

NOT SOLD SEPARAT

SPACER - seal

2шт.

20

NSS

NOT SOLD SEPARAT

O-RING -, Serial Range: cover-body

2шт.
