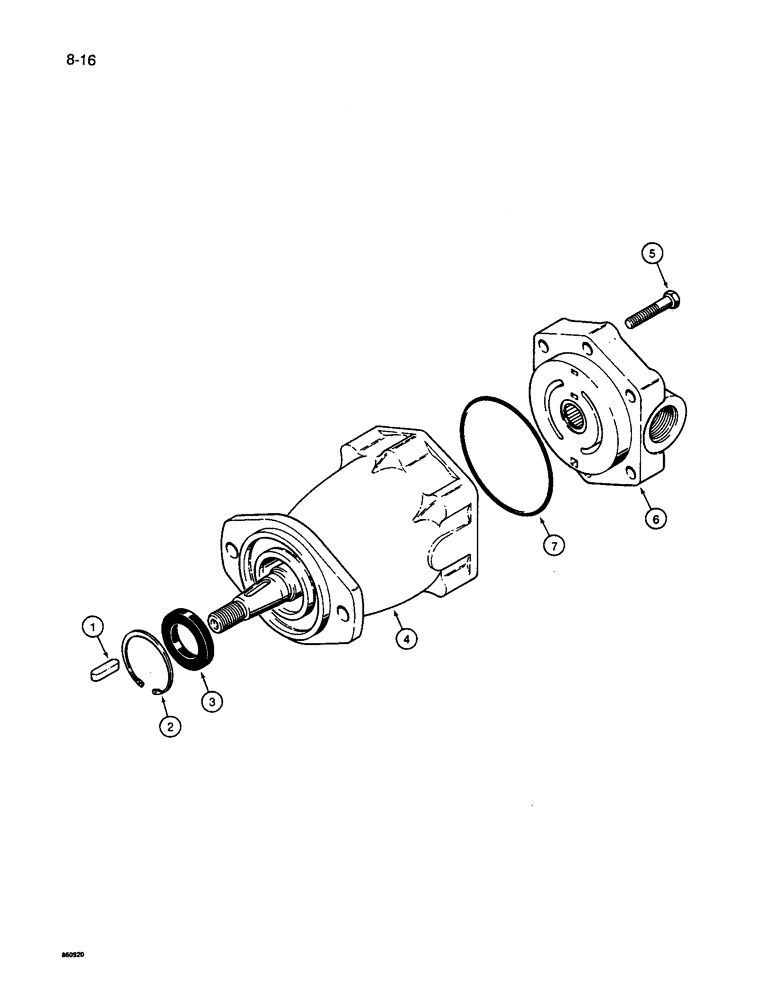

Запчасти Case IH 8600 (8-16) - FAN DRIVE HYDRAULIC MOTOR, 85005C92 (08) - HYDRAULICS

85005C92

MOTOR

ASSEMBLY - hydraulic, fan drive

1шт.

85005C93R

REMAN-HYD MOTOR

8600 REMAN FOR NEW P/N 85005C92

1шт.

85005C93C

CORE-MOTOR HYDRAULIC

RETURN NUMBER

1шт.

1

55555C1

KEY

- shaft, 1/4 inch square

1шт.

2

299470R1

SNAP RING,1.625", Int, #162

Ring, Snap, , seal 1.625", Int, #162

1шт.

3

93409C1

SEAL

- pump shaft

1шт.

4

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY - pump, includes pistons, drive shaft and all internal components

1шт.

5

NSS

NOT SOLD SEPARAT

BOLT - hex head, Serial Range: cover-housing

6шт.

6

NSS

NOT SOLD SEPARAT

COVER - pump rear

1шт.

7

347360R1

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

- rear cover to housing

1шт.
