(8-40) - ROW MARKER VALVE, 149988C92, MANUFACTURED BY MODULAR CONTROLS

Запчасти Case IH 8600 (8-40) - ROW MARKER VALVE, 149988C92, MANUFACTURED BY MODULAR CONTROLS (08) - HYDRAULICS

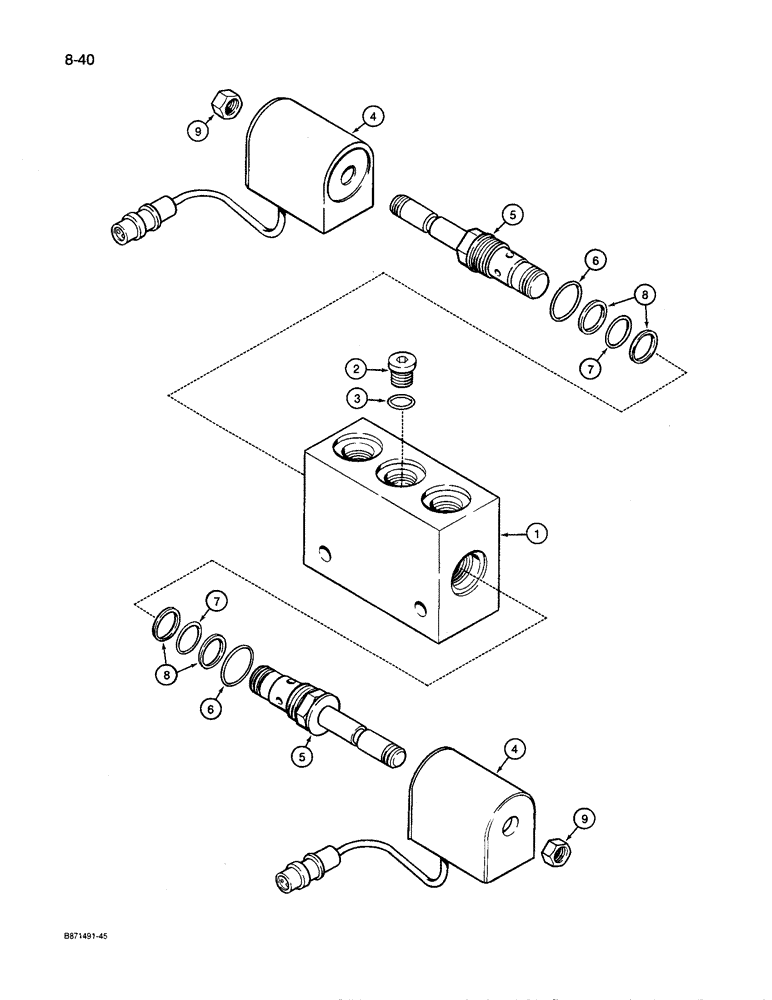

Схема запчастей Case IH 8600 - (8-40) - ROW MARKER VALVE, 149988C92, MANUFACTURED BY MODULAR CONTROLS (08) - HYDRAULICS
9
6
8
6
5
4
2
7
8
5
9
1
3
4
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

149988C92

VALVE

ASSEMBLY - row marker

1шт.

1

145317C2

VALVE BODY

BODY - row marker valve

1шт.

2

NSS

NOT SOLD SEPARAT

PLUG - hex socket head, valve body

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - valve body plug

1шт.

Part of marker valve, for both coil assemblies and plug seal kit P/N 145316C1

1шт.

149989C91

VALVE

COIL ASSEMBLY - solenoid, marker valve

2шт.

4

NSS

NOT SOLD SEPARAT

COIL AND HOUSING - valve

1шт.

5

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - spool, large

1шт.

Part of marker valve, for both coil assemblies and plug seal kit P/N 145316C1

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING - spool, small

1шт.

Part of marker valve, for both coil assemblies and plug seal kit P/N 145316C1

1шт.

8

NSS

NOT SOLD SEPARAT

RING - backup, small O-ring

2шт.

Part of marker valve, for both coil assemblies and plug seal kit P/N 145316C1

1шт.

9

NSS

NOT SOLD SEPARAT

NUT -, Serial Range: coil-spool

1шт.

145316C1

REPAIR KIT

KIT - seal, marker valve, for both coil assemblies and plug, Includes: Ref. 3, 6, 7 and 8

1шт.
