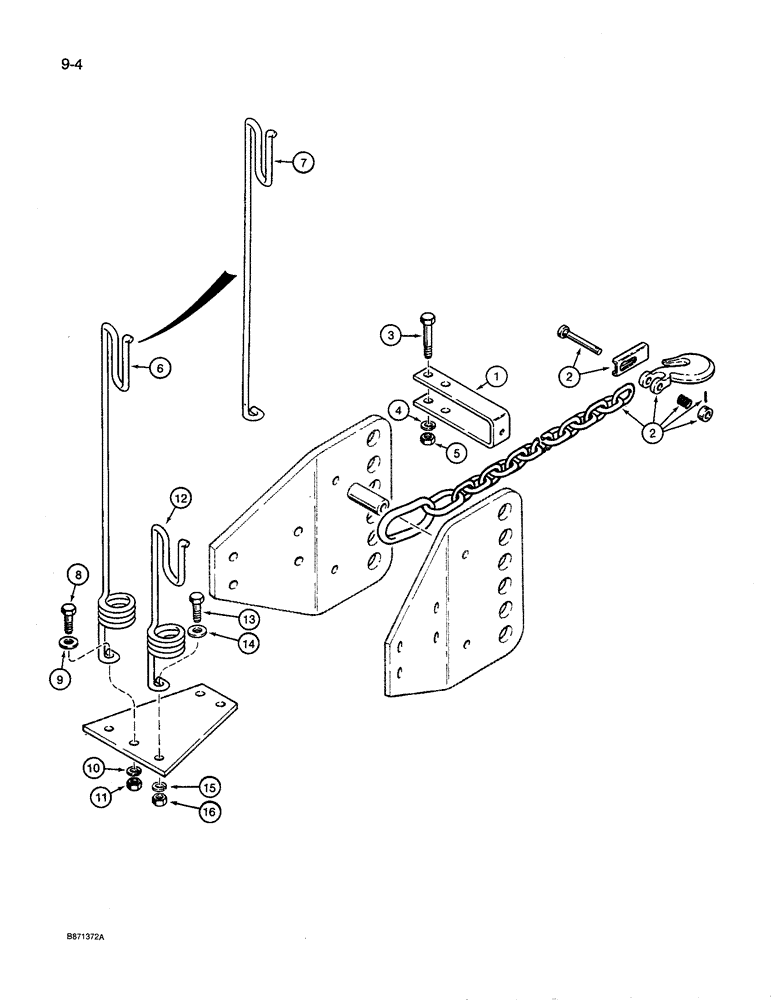

Запчасти Case IH 8600 (9-004) - TRANSPORT CHAIN AND HOSE SUPPORTS (09) - CHASSIS/ATTACHMENTS

1

1279163C1

CLEVIS COUPLING

CLEVIS - transport chain

1шт.

2

63506C3

CHAIN (AG)

CHAIN - transport

1шт.

3

113-628

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Hex, 5/8"-11 x 3 1/2", G5

2шт.

4

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

5

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch - 11 NC

2шт.

6

814888C1

SPRING

SUPPORT - hose to disconnect couplers at tractor, spring type, if used

1шт.

7

651793R2

SUPPORT

- hose to disconnect couplers at tractor, rigid type, if used

1шт.

8

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch

1шт.

9

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 7/64 inch

1шт.

10

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

11

425-1010

NUT,5/8"-11, G5

1шт.

12

1336796C1

SPRING

SUPPORT - hose to PTO hydraulic pump, spring type, if used

1шт.

13

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

14

460908R1

WASHER

- flat, 17/32 x 1-1/2 x 1/8 inch

1шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

16

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.
