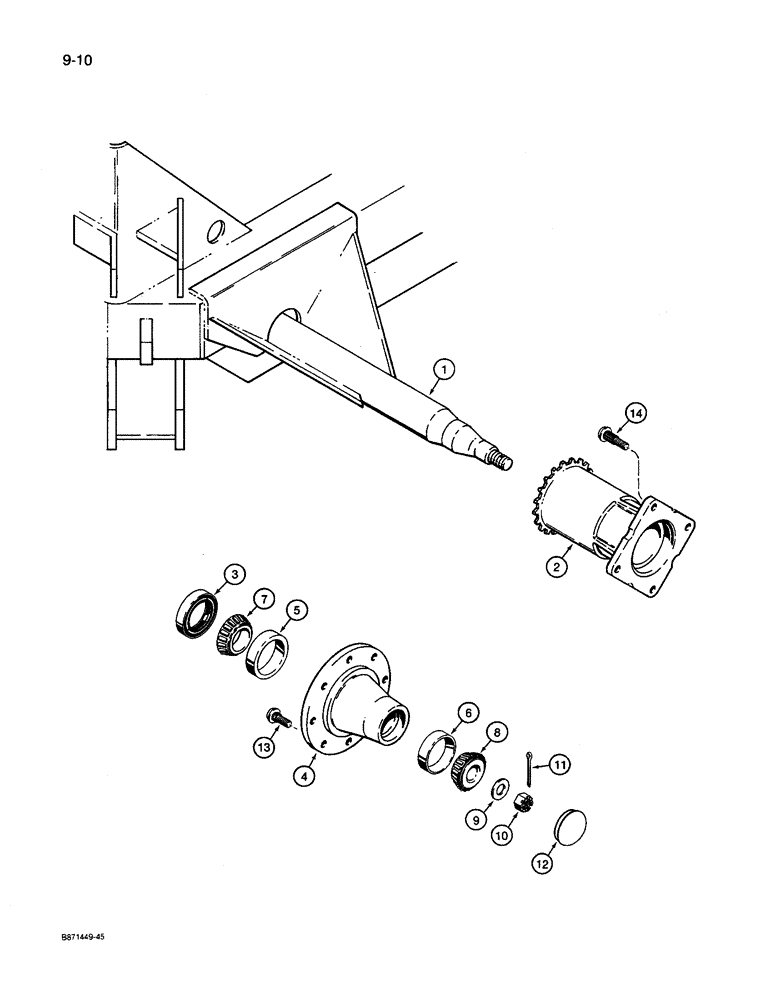

Запчасти Case IH 8600 (9-010) - SPINDLES, HUBS AND BEARINGS, USED WITH HOPPER CARRIER FRAME WHEELS (09) - CHASSIS/ATTACHMENTS

1

NSS

NOT SOLD SEPARAT

SPINDLE - wheel hub, component of hopper carrier frame, see page 9-7

2шт.

2

88965C1

SPROCKET ASSY.

SPROCKET - main drive, used with right-hand wheel hub

1шт.

3

820095C91

SEAL

- hub

2шт.

88967C1

HUB

ASSEMBLY - left-hand wheel, 8 bolt

1шт.

88966C1

HUB

ASSEMBLY - right-hand wheel, 8 bolt

1шт.

4

NSS

NOT SOLD SEPARAT

HUB - wheel, 8 bolt

1шт.

5

625743C1

BEARING CUP,90mm OD x 18.5mm W

CUP - bearing, inner

1шт.

6

61801C1

BEARING CUP,63mm OD x 13.5mm W

CUP - bearing, outer

1шт.

7

625742C91

BEARING

- tapered roller, inner

2шт.

8

61802C91

ROLLER BEARING,38mm ID x 17mm Thk

BEARING - tapered roller, outer

2шт.

9

21214R1

WASHER

- thrust, bearing

2шт.

10

25893R1

SLOTTED NUT,1 1/8"-12, G5

NUT - hex, slotted, 1-1/8 inch - 12 NF

2шт.

11

132-317

COTTER PIN,3/16" x 2"

PIN, SPLIT (COTTER), 3/16" x 2"

2шт.

12

378814R1

CAP

- hub, spindle

2шт.

13

404341R3

BOLT,5/8" - 18 x 1.93", Full Thd

BOLT - wheel stud, 1-15/16 inch long, 8 used with left-hand hub; 4 used with right-hand hub

12шт.

14

1337428C1

BOLT

- wheel stud, 2-3/8 inch long, used for drive sprocket mounting to right-hand hub

4шт.
